1896/4C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

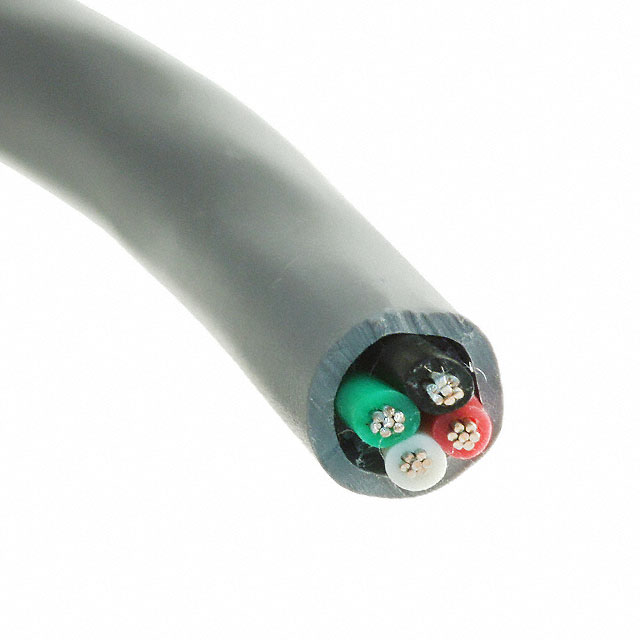

CABLE 4COND 20AWG SLATE 500'
| Part | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Length | Length | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Conductor Insulation | Number of Conductors | Conductor Material | Wire Gauge | Length [x] | Length [x] | Spool Size | Spool Size | Length | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Slate | 28 AWG | 7 | Multi-Conductor | 152.4 m | 500 ft | 300 VDC | 0.209 in | 5.31 mm | 80 °C | -20 ░C | Communication Control | Poly-Vinyl Chloride (PVC) | 4 | Copper Tinned | 20 AWG | ||||||
ALPHA WIRE | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Slate | 28 AWG | 7 | Multi-Conductor | 300 VDC | 0.209 in | 5.31 mm | 80 °C | -20 ░C | Communication Control | Poly-Vinyl Chloride (PVC) | 4 | Copper Tinned | 20 AWG | 100 ft | 30.5 m | ||||||
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Slate | 28 AWG | 7 | Multi-Conductor | 300 VDC | 0.209 in | 5.31 mm | 80 °C | -20 ░C | Communication Control | Poly-Vinyl Chloride (PVC) | 4 | Copper Tinned | 20 AWG | 3500 ft | 1066.8 m | Enter Number of Feet in Order Quantity | UL Style 2509 |
