TR9CX3333 Series

Catalog

AC/DC DESKTOP ADAPTER 54V 180W

Part	Input Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Current - Output (Max) [Max]	Polarization	Applications	No Load Power Consumption	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector	Power (Watts)	Form	Efficiency	Standard Number	Region Utilized	Voltage - Output	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]

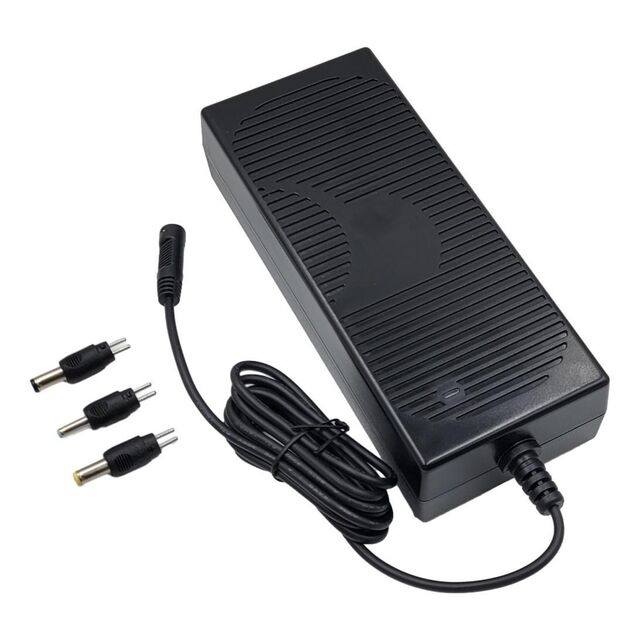

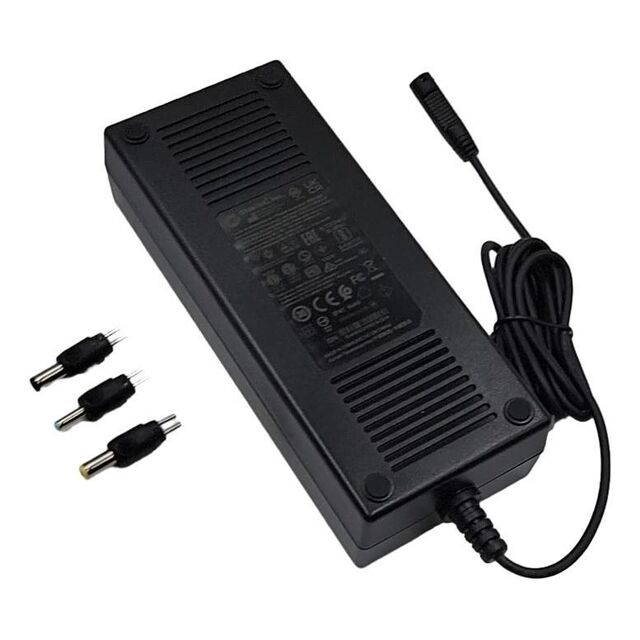

GlobTek, Inc. TR9CX3333T00-IM(R6B)	Cord (Sold Separately)	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	1.5 m	59 in	264 VAC	90 VAC	IEC 320-C14	3.33 A	Either	Household Appliances ITE (Commercial) Medical	150 mW	40 °C	-10 °C	Barrel Plug Kit (1.3mm x 3.5mm	180 W	Desktop (Class I)	CoC Tier 2 Level VI	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	International	54 V

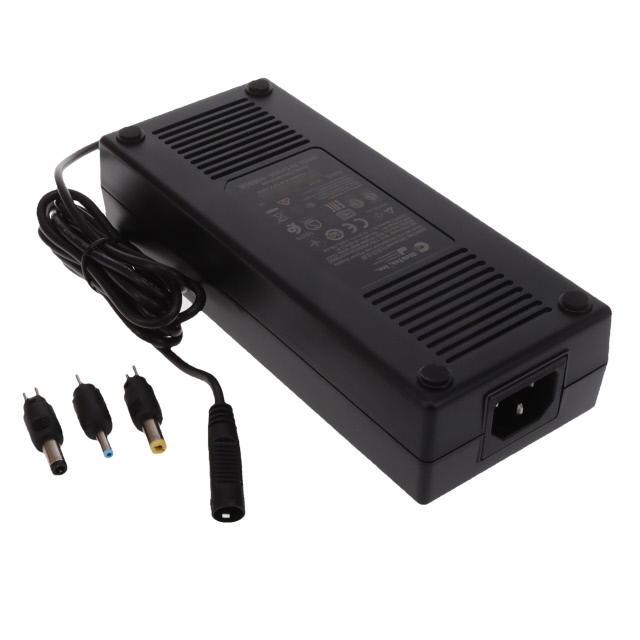

GlobTek, Inc. TR9CX3333T00-IMCF(R6B)	Cord (Sold Separately)	6.93 "	176 mm	74 mm	2.91 in	40 mm	1.58 in	1.5 m	59 in	264 VAC	90 VAC	IEC 320-C14	3.33 A		Household Appliances ITE (Commercial) Medical	150 mW	40 °C	-10 °C	Barrel Plug Kit (1.3mm x 3.5mm	180 W	Desktop (Class I)	CoC Tier 1 Level VI	60335-1 60601-1 60950-1 62368-1	International	54 V
GlobTek, Inc. TR9CX3333LRPIMR6B	Cord (Sold Separately)	6.93 "	176 mm	74 mm	2.91 in	40 mm	1.58 in	1.5 m	59 in	264 VAC	90 VAC	IEC 320-C14	3.33 A	Positive Center	Household Appliances ITE (Commercial) Medical	150 mW	40 °C	-10 °C	Barrel Plug R/A	180 W	Desktop (Class I)	CoC Tier 2 Level VI		International	54 V	5.5 mm	11 mm	2.5 mm

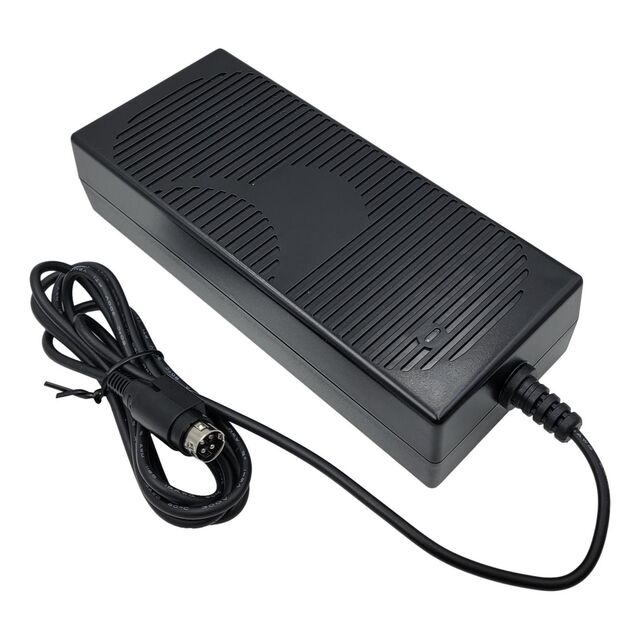

GlobTek, Inc. TR9CX3333YL4IMR6B	Cord (Sold Separately)	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	1.5 m	59 in	264 VAC	90 VAC	IEC 320-C14	3.33 A		Household Appliances ITE (Commercial) Medical	150 mW	40 °C	-10 °C	Power DIN 4 Pin	180 W	Desktop (Class I)	CoC Tier 2 Level VI	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	International	54 V
