25LE24 Series

Catalog

DC/DC CONVERTER 25000V 30W

Part	Number of Outputs	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Output 1	Power (Watts)	Applications	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Approval Agency	Mounting Type	Standard Number

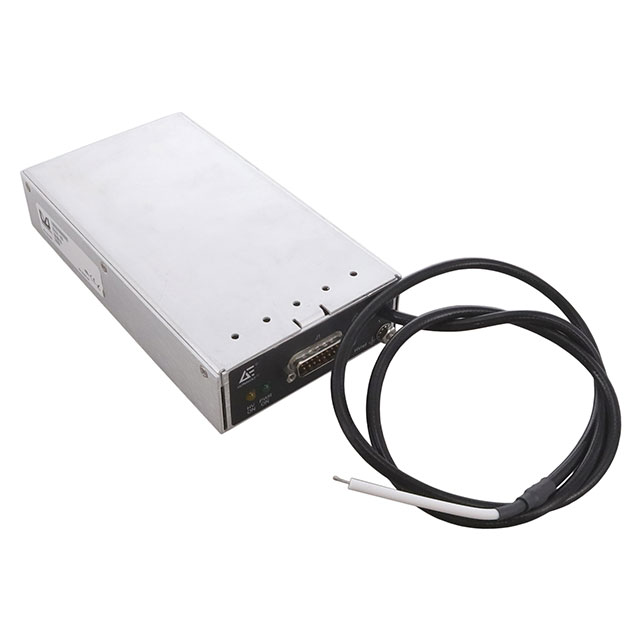

ULTRAVOLT / Advanced Energy 25LE24-N30	1	30 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	1.2 mA	25000 V	30 Watts	ITE (Commercial)	23 V	45 °C	10 °C	Enclosed High Voltage	CE cURus	Chassis Mount	62368-1

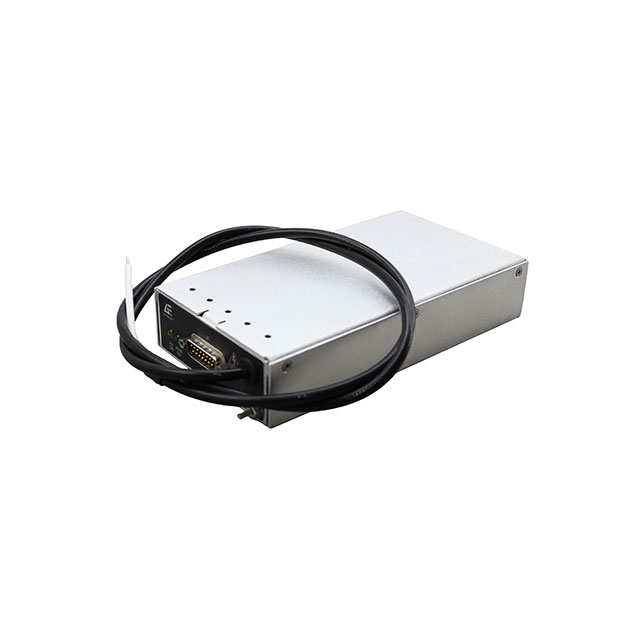

ULTRAVOLT / Advanced Energy 25LE24-P15	1	30 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	600 µA	25000 V	15 W	ITE (Commercial)	23 V	45 °C	10 °C	Enclosed High Voltage	CE cURus	Chassis Mount	62368-1

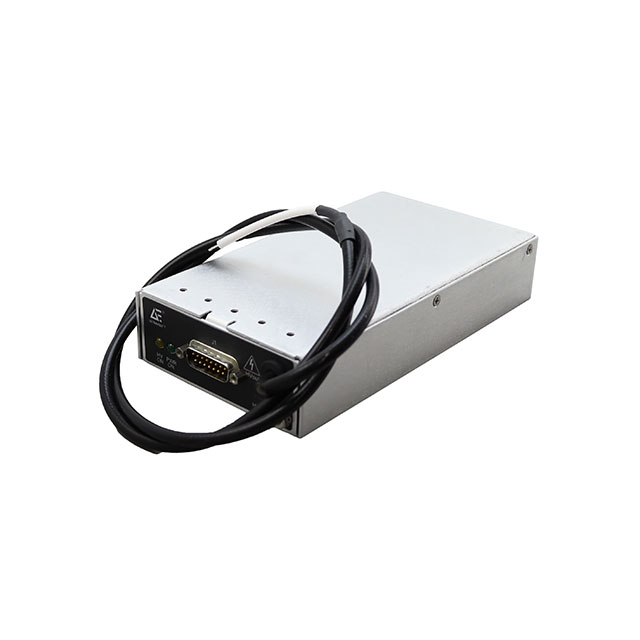

ULTRAVOLT / Advanced Energy 25LE24-N15	1	30 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	600 µA	25000 V	15 W	ITE (Commercial)	23 V	45 °C	10 °C	Enclosed High Voltage	CE cURus	Chassis Mount	62368-1

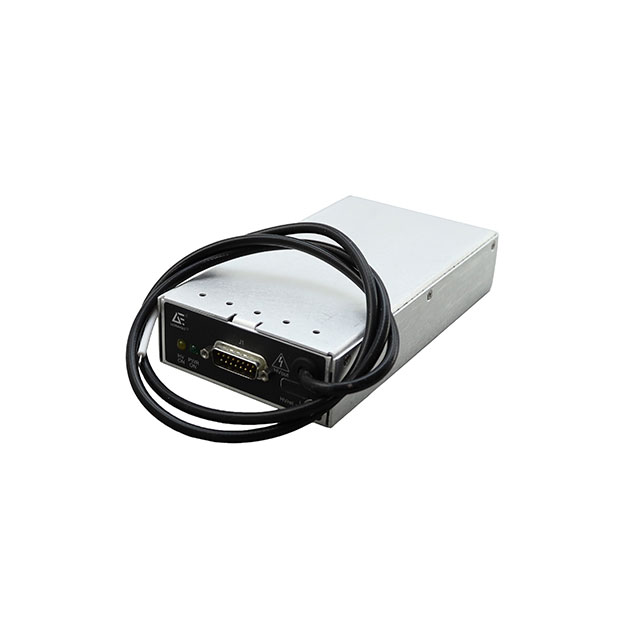

ULTRAVOLT / Advanced Energy 25LE24-P30	1	30 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	1.2 mA	25000 V	30 Watts	ITE (Commercial)	23 V	45 °C	10 °C	Enclosed High Voltage	CE cURus	Chassis Mount	62368-1

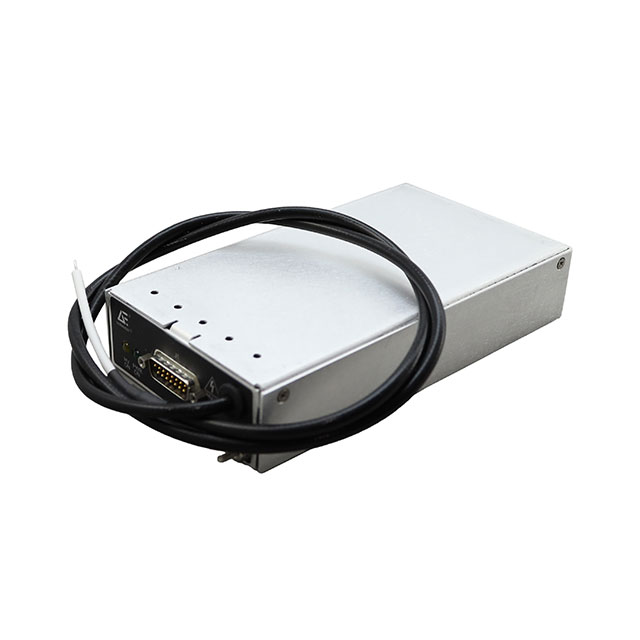

ULTRAVOLT / Advanced Energy 25LE24-P4-AZ	1	30 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	160 µA	25000 V	4 W	ITE (Commercial)	23 V	45 °C	10 °C	Enclosed High Voltage	CE cURus	Chassis Mount	62368-1

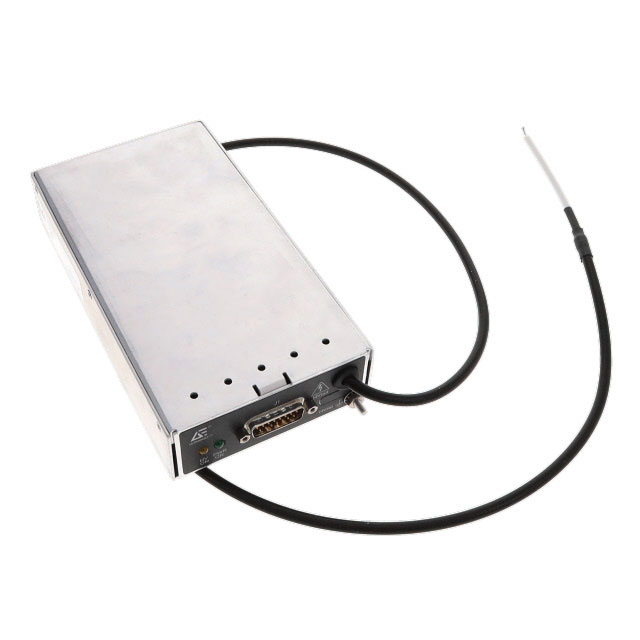

ULTRAVOLT / Advanced Energy 25LE24-P4	1	30 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	160 µA	25000 V	4 W	ITE (Commercial)	23 V	45 °C	10 °C	Enclosed High Voltage	CE cURus	Chassis Mount	62368-1
