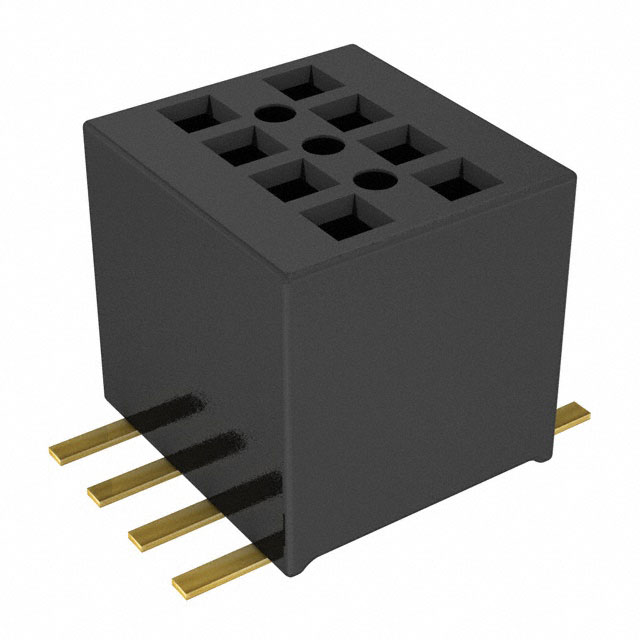

CLE-104 Series

Catalog

0.8MM 1.2MM DOUBLE ROW 2.7A GOLD -55℃~+125℃ 8P VERTICAL WELDING 3.3MM SMD,P=0.8MM FEMALE HEADERS ROHS

Part	Contact Type	Insulation Material	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Material Flammability Rating	Number of Positions Loaded	Contact Material	Insulation Color	Mounting Type	Fastening Type	Number of Rows	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Current Rating (Amps)	Number of Positions	Contact Finish - Mating	Features
Samtec Inc. CLE-104-01-F-DV	Female Socket	Liquid Crystal Polymer (LCP)	0.13 in	3.3 mm	-55 °C	125 °C	1.2 mm	0.047 in	0.031 in	0.8 mm	Pass Through Receptacle	3 µin	0.076 µm	Solder	UL94 V-0	All	Beryllium Copper	Black	Surface Mount	Push-Pull	2	Gold	3 µin	0.076 µm	Square	2.7 A	8	Gold
Samtec Inc. CLE-104-01-G-DV-A-TR	Female Socket	Liquid Crystal Polymer (LCP)	0.13 in	3.3 mm	-55 °C	125 °C	1.2 mm	0.047 in	0.031 in	0.8 mm	Pass Through Receptacle	10 çin	0.25 çm	Solder	UL94 V-0	All	Beryllium Copper	Black	Surface Mount	Push-Pull	2	Gold	10 çin	0.25 çm	Square	2.7 A	8	Gold	Board Guide
Samtec Inc. CLE-104-01-G-DV-A	Female Socket	Liquid Crystal Polymer (LCP)	0.13 in	3.3 mm	-55 °C	125 °C	1.2 mm	0.047 in	0.031 in	0.8 mm	Pass Through Receptacle	10 çin	0.25 çm	Solder	UL94 V-0	All	Beryllium Copper	Black	Surface Mount	Push-Pull	2	Gold	10 çin	0.25 çm	Square	2.7 A	8	Gold	Board Guide
