140-506 Series

Manufacturer: EDAC Inc.

Catalog

2.0MM PITCH CONNECTOR WITH 6 P.C

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Pitch - Mating	Pitch - Mating	Fastening Type	Voltage Rating	Contact Finish - Post	Contact Type	Mounting Type	Material Flammability Rating	Current Rating (Amps)	Insulation Material	Connector Type	Insulation Height	Insulation Height	Shrouding	Number of Positions	Number of Positions Loaded	Style	Termination	Insulation Color	Number of Rows	Contact Material	Insulation Height [z]	Insulation Height [z]	Note	Contact Termination	Features	Pitch [x]	Pitch [x]	Color

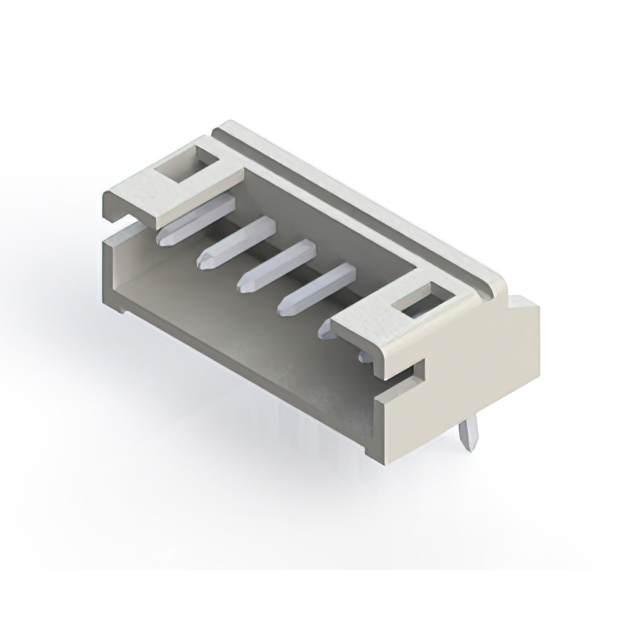

EDAC Inc. 140-506-415-000	-40 C	105 ░C	Square	0.079 "	2 mm	Detent Lock	100 VAC	Tin	Male Pin	Right Angle Through Hole	UL94 V-0	2 A	Nylon 6/6 Polyamide (PA66)	Header	0.197 "	5 mm	Shrouded - 4 Wall	6	All	Board to Cable/Wire	Kinked Pin Solder	Natural	1	Brass

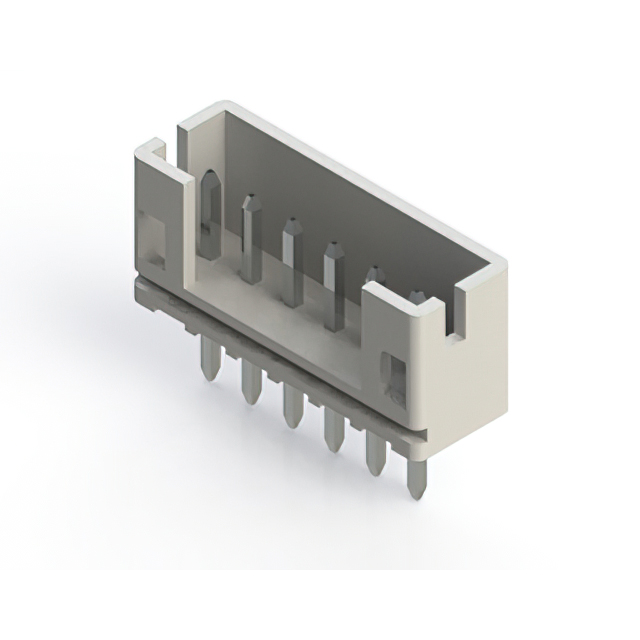

EDAC Inc. 140-506-415-101	-40 C	105 ░C	Square	0.079 "	2 mm	Detent Lock	100 VAC	Tin	Male Pin	Through Hole	UL94 V-0	2 A	Nylon 6/6 Polyamide (PA66)	Header			Shrouded - 4 Wall	6	All	Board to Cable/Wire	Solder	Natural	1	Brass	6.1 mm	0.24 in

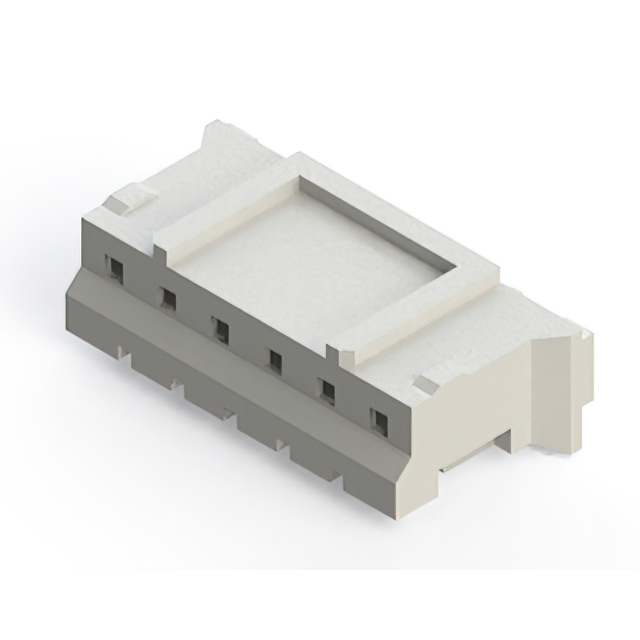

EDAC Inc. 140-506-210-011	-25 °C	85 °C				Detent Lock			Female Socket	Free Hanging (In-Line)			Nylon 6/6 Polyamide (PA66)	Receptacle				6					1				Contacts Not Included	Crimp	Polarizing Key	0.079 in	2 mm	Natural
EDAC Inc. 140-506-415-001	-40 C	105 ░C	Square	0.079 "	2 mm	Detent Lock	100 VAC	Tin	Male Pin	Through Hole	UL94 V-0	2 A	Nylon 6/6 Polyamide (PA66)	Header			Shrouded - 4 Wall	6	All	Board to Cable/Wire	Kinked Pin Solder	Natural	1	Brass	6.1 mm	0.24 in

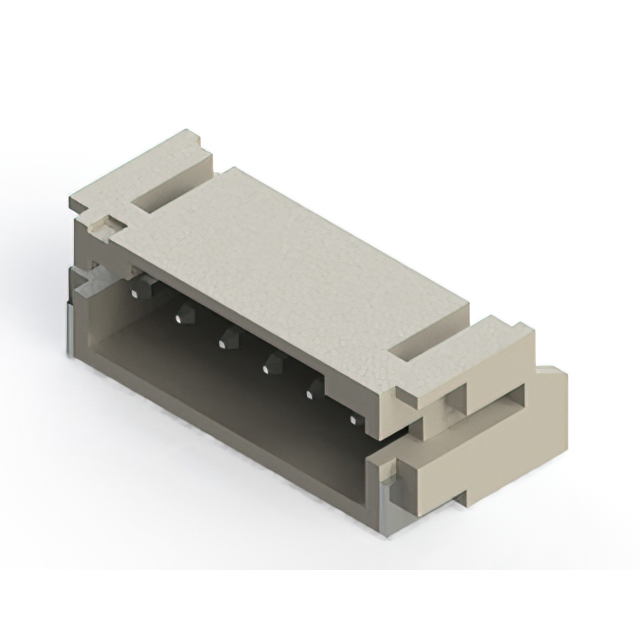

EDAC Inc. 140-506-417-060	-25 °C	85 °C	Square	0.079 "	2 mm	Detent Lock	100 VAC	Tin	Male Pin	Right Angle Surface Mount	UL94 V-0	2 A	Nylon 9T Polyamide (PA9T)	Header	0.217 in	5.51 mm	Shrouded - 4 Wall	6	All	Board to Cable/Wire	Solder	Natural	1	Brass					Solder Retention
