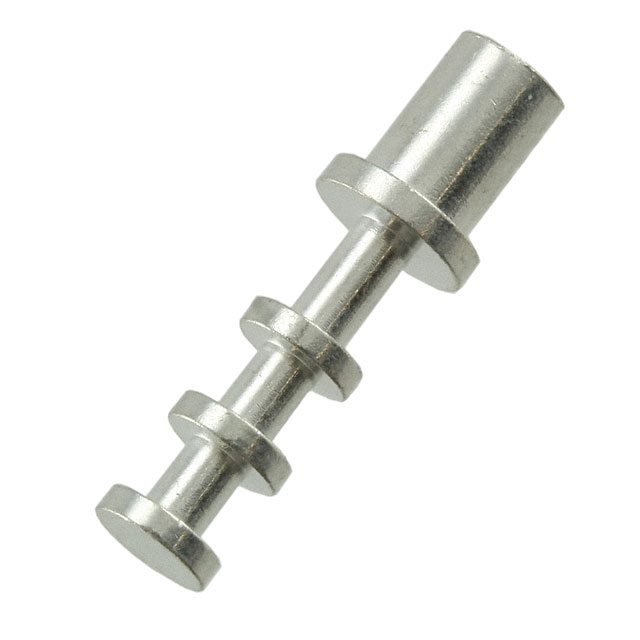

H9021 Series
Manufacturer: Harwin Inc.
Beta
⌘K
TERMINAL, TURRET, 2.45MM, NON INSULATED ROHS COMPLIANT: YES
| Part | Number of Turrets | Mounting Type | Contact Material | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Length - Overall [x] | Length - Overall [x] | Contact Finish | Terminal Type | Length - Above Board [x] | Length - Above Board [x] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Board Thickness [custom] | Board Thickness [custom] | Termination | Staking Side ID [diameter] | Staking Side ID [diameter] | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Triple | Through Hole | Brass Alloy | 0.092 in | 2.44 mm | 0.096 in | 2.34 mm | 10.82 mm | 0.426 in | Tin | Single End | 0.301 in | 7.65 mm | 2.36 mm | 0.093 in | 0.125 " | 3.18 mm | 0.094 in | 2.39 mm | Swage | 1.63 mm | 0.064 " | Non-Insulated | 0.125 in | 3.18 mm |
