3SBC1 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

RELAY GENERAL PURPOSE DPDT 2A

Part	Relay Type	Operate Time	Seal Rating	Release Time	Switching Voltage	Coil Type	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Rating (Current)	Mounting Type	Contact Form	Termination Style	Grade	Qualification	Coil Current	Must Release Voltage	Coil Resistance	Must Operate Voltage	Coil Voltage
TE Connectivity Aerospace, Defense and Marine 6-1617579-4	General Purpose	4 ms	Sealed - Hermetically	4 ms	28 VDC 115 VAC	Non Latching	56 W 230 VA	125 °C	-65 ░C	Diode	2 A	Through Hole	DPDT (2 Form C)	PC Pin
TE Connectivity Aerospace, Defense and Marine 8-1617514-9	General Purpose		Sealed - Hermetically		28 VDC 115 VAC	Non Latching	56 W 230 VA	125 °C	-65 ░C		2 A		DPDT (2 Form C)		Military	MIL-R-39016/37
TE Connectivity Aerospace, Defense and Marine 2-1617515-9	General Purpose	4 ms	Sealed - Hermetically	4 ms	28 VDC 115 VAC	Non Latching	56 W 230 VA	125 °C	-65 ░C		2 A	Chassis Mount	DPDT (2 Form C)	Solder Hook			113.6 mA	0.26 VDC	44 Ohms	2.4 VDC	5 VDC
TE Connectivity Aerospace, Defense and Marine 8-1617347-8	General Purpose	4 ms	Sealed - Hermetically	4 ms	28 VDC 115 VAC	Non Latching	56 W 230 VA	125 °C	-65 ░C		2 A	Chassis Mount	DPDT (2 Form C)	Solder Hook			57.1 mA	0.33 VDC	210 Ohms	3.6 VDC	12 VDC
TE Connectivity Aerospace, Defense and Marine 7-1617560-0	General Purpose	4 ms	Sealed - Hermetically	4 ms	28 VDC 115 VAC	Non Latching	56 W 230 VA	125 °C	-65 ░C	Diode	2 A	Through Hole	DPDT (2 Form C)	PC Pin

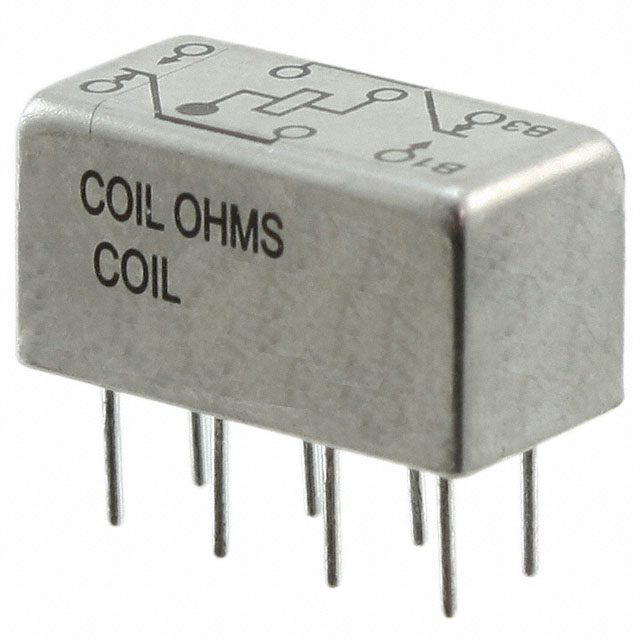

TE Connectivity Aerospace, Defense and Marine 3SBC1518A2	General Purpose	4 ms	Sealed - Hermetically	4 ms	28 VDC	Non Latching		125 °C	-65 ░C		2 A	Through Hole	DPDT (2 Form C)	PC Pin	Military	MIL-R-39016/13	8.9 mA	1.5 VDC	1.35 kOhms	13.5 VDC	26.5 VDC
TE Connectivity Aerospace, Defense and Marine 5-1617072-0	General Purpose		Sealed - Hermetically		28 VDC 115 VAC	Non Latching	56 W 230 VA	125 °C	-65 ░C		2 A		DPDT (2 Form C)		Military	MIL-R-39016/38
TE Connectivity Aerospace, Defense and Marine 3SBC1534A2	General Purpose	4 ms	Sealed - Hermetically	4 ms	28 VDC 115 VAC	Non Latching	56 W 230 VA	125 °C	-65 ░C		2 A	Through Hole	DPDT (2 Form C)	PC Pin	Military	MIL-R-39016/13	19.6 mA		1.35 kOhms		26.5 VDC
TE Connectivity Aerospace, Defense and Marine 3SBC1502A2	General Purpose	4 ms	Sealed - Hermetically	4 ms	28 VDC 115 VAC	Non Latching	56 W 230 VA	125 °C	-65 ░C		2 A	Through Hole	DPDT (2 Form C)	PC Pin	Military	MIL-R-39016/13	57.2 mA		210 Ohms		12 VDC
TE Connectivity Aerospace, Defense and Marine 8-1617514-5	General Purpose		Sealed - Hermetically		28 VDC 115 VAC	Non Latching	56 W 230 VA	125 °C	-65 ░C		2 A		DPDT (2 Form C)		Military	MIL-R-39016/13
