2360558 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

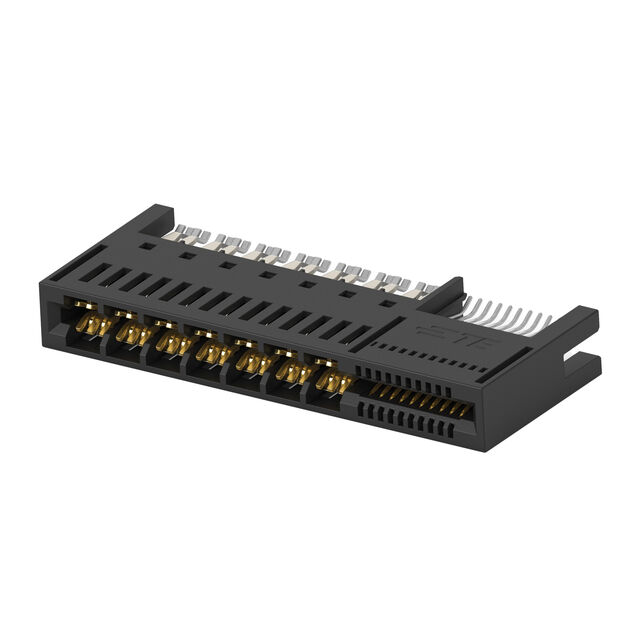

CONN EDGE DUAL FMALE 48POS GOLD
| Part | Number of Positions | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Card Thickness | Card Thickness | Read Out | Number of Rows | Color | Contact Material | Contact Finish | Contact Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Material - Insulation | Mounting Type | Number of Positions/Bay/Row [custom] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 48 | Solder | 105 ░C | -55 °C | Female | 0.062 in | 1.57 mm | Dual | 2 | Black | Copper Alloy | Gold | Cantilever | 10 | 14 | 0.76 Ám | 30 Áin | Non Specified - Dual Edge | Thermoplastic Glass Filled | Board Edge Straddle Mount | |||
 TE Connectivity Raychem Cable Protection | Female | 0.062 in | 1.57 mm | Dual | 2 | Black | Copper Alloy | 10 | Non Specified - Dual Edge | Thermoplastic Glass Filled | Board Edge Straddle Mount | 7 | 14 | 20 |
