65605 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

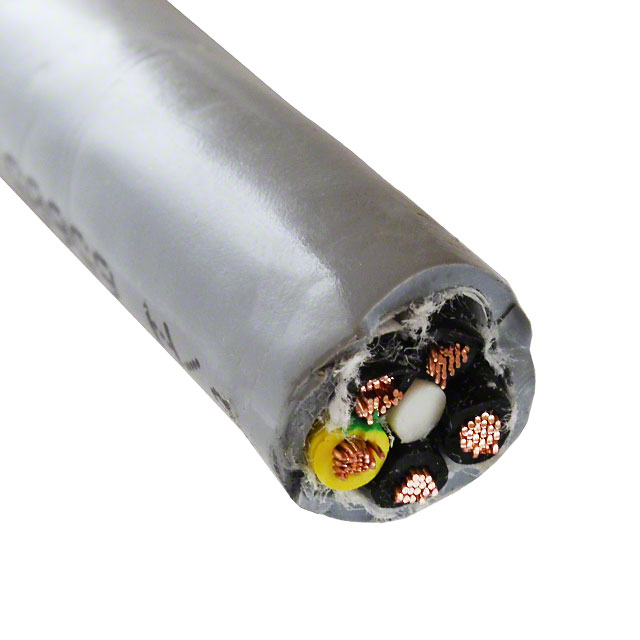

CABLE 5COND 16AWG SLATE 500'
| Part | Wire Gauge | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Cable Type | Number of Conductors | Jacket Color | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Ratings | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 16 AWG | 600 V | 9.17 mm | 0.361 in | Copper Bare | 30 AWG | 26 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 5 | Slate | Biological Compatibility | 0.889 mm | 0.035 in | 500 ' | 152.4 m | ISO 10993 UL Style 2587 | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | 16 AWG | 600 V | 9.17 mm | 0.361 in | Copper Bare | 30 AWG | 26 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 5 | Slate | Biological Compatibility | 0.889 mm | 0.035 in | ISO 10993 UL Style 2587 | Poly-Vinyl Chloride (PVC) | 1000 ft | 304.8 m |
