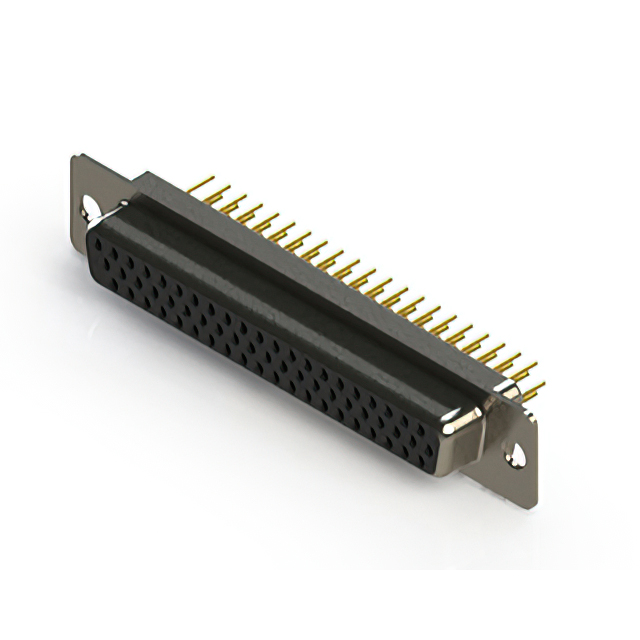

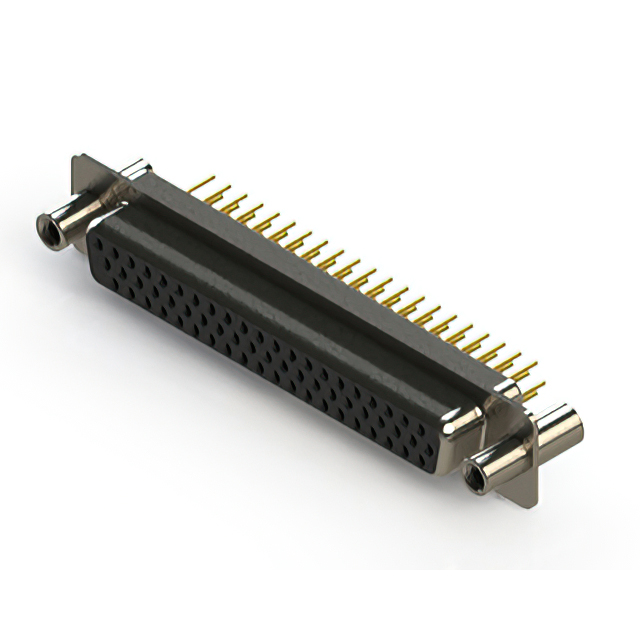

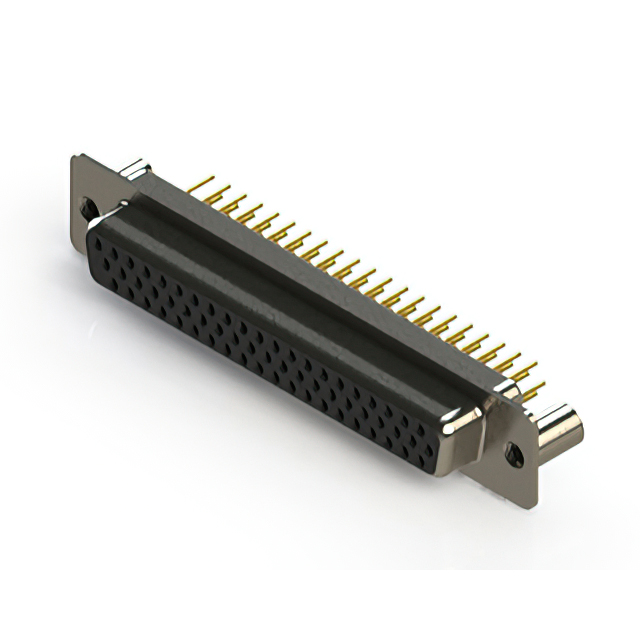

638-M62 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN D-SUB HD RCPT 62P SLDR CUP
| Part | Contact Material | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Rows [custom] | Contact Type | Features | Current Rating (Amps) | Mounting Type | Contact Finish Thickness | Flange Feature [custom] | Flange Feature [custom] | Contact Finish | Material Flammability Rating | Shell Material, Finish | Number of Positions | Connector Style | Connector Type | Flange Feature | Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | C DC | 4 | 3 | Signal | Shielded | 5 A | Free Hanging (In-Line) | Flash | 4-40 | 4-40 | Gold | UL94 V-0 | Nickel Plated Steel | 62 | D-Sub High Density | Receptacle Female Sockets | ||||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | C DC | 4 | 3 | Signal | Board Lock Shielded | 5 A | Through Hole | Gold | UL94 V-0 | 62 | D-Sub High Density | Receptacle Female Sockets | 4-40 | Solder | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | C DC | 4 | 3 | Signal | Shielded | 5 A | Through Hole | Flash | Gold | UL94 V-0 | 62 | D-Sub High Density | Receptacle Female Sockets | Board Side (4-40) | Solder | |||||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | C DC | 4 | 3 | Signal | Shielded | 5 A | Through Hole | Gold | UL94 V-0 | Nickel Plated Steel | 62 | D-Sub High Density | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Solder | 15 µin | 0.38 µm | |||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | C DC | 4 | 3 | Signal | Shielded | 5 A | Through Hole | Flash | 4-40 | 4-40 | Gold | UL94 V-0 | Nickel Plated Steel | 62 | D-Sub High Density | Receptacle Female Sockets | Solder | |||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | C DC | 4 | 3 | Signal | Shielded | 5 A | Through Hole | Flash | 4-40 | 4-40 | Gold | UL94 V-0 | 62 | D-Sub High Density | Receptacle Female Sockets | Solder | ||||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | C DC | 4 | 3 | Signal | Shielded | 5 A | Through Hole | Gold | UL94 V-0 | 62 | D-Sub High Density | Receptacle Female Sockets | Board Side (4-40) | Solder | 15 µin | 0.38 µm | ||||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | C DC | 4 | 3 | Signal | Shielded | 5 A | Through Hole | Flash | Gold | UL94 V-0 | 62 | D-Sub High Density | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Solder | |||||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | C DC | 4 | 3 | Signal | Board Lock Shielded | 5 A | Through Hole | Gold | UL94 V-0 | Nickel Plated Steel | 62 | D-Sub High Density | Receptacle Female Sockets | 4-40 | Solder | 15 µin | 0.38 µm | |||
 EDAC Inc. | Copper Alloy | Black | Nylon 9T Polyamide (PA9T) | -55 C | 125 °C | C DC | 4 | 3 | Signal | Shielded | 5 A | Free Hanging (In-Line) | Gold | UL94 V-0 | 62 | D-Sub High Density | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 30 Áin | 0.76 Ám |
