1103635 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

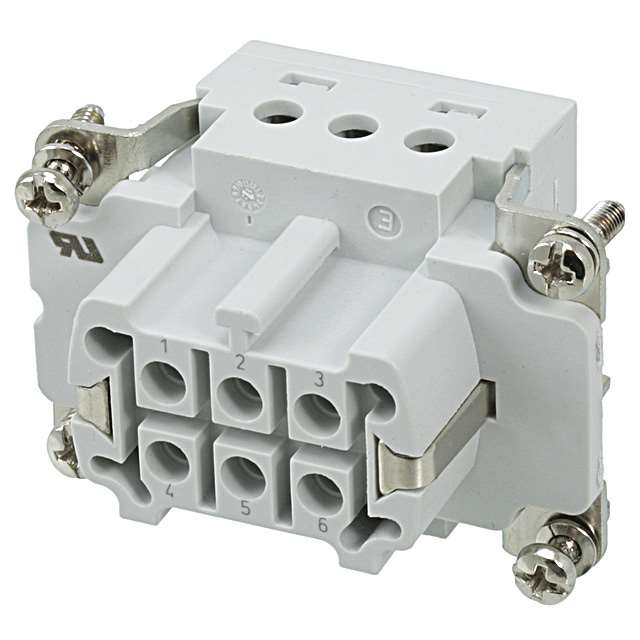

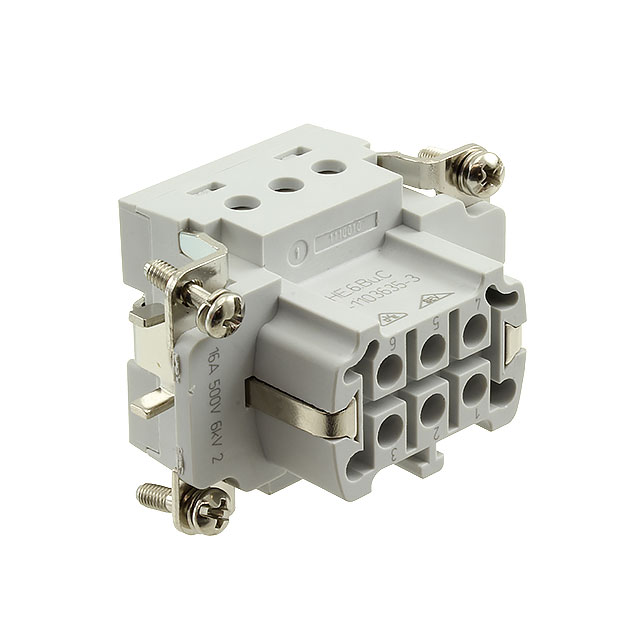

INSERT FEMALE 6POS+1GND CRIMP
| Part | Material Flammability Rating | Color | Housing Material | Termination Style | Current Rating (Amps) | Voltage Rating | Connector Type | Size | Number of Positions | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | Gray | Glass Filled Polycarbonate (PC) | Crimp | 16 A | 400 V | Insert without Contacts | 3 | 6+Ground | Female | 125 °C | -40 C | ||
 TE Connectivity AMP Connectors | UL94 V-0 | Gray | Glass Filled Polycarbonate (PC) | Screw | 16 A | 400 V | Insert | 3 | 6+Ground | Female | 125 °C | -40 C | Brass | Silver |
