44JR Series

Catalog

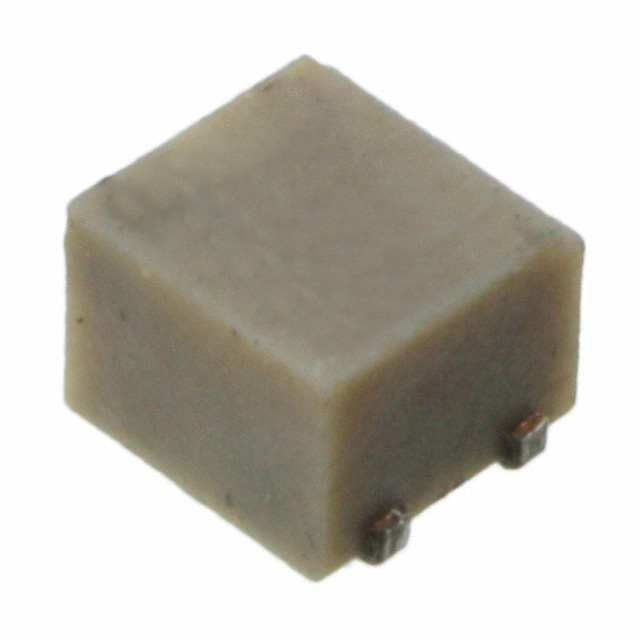

TRIMMER 5K OHM 0.25W GW SIDE ADJ

Part	Mounting Type	Resistive Material	Resistance	Number of Turns	Adjustment Type	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Termination Style	Temperature Coefficient	Size / Dimension
TT Electronics/BI 44JR5KLFT13	Surface Mount	Cermet	5 kOhms	9	Side Adjustment	0.25 W	0.25 W	0.19 in	0.198 in	5.03 mm	4.83 mm	10 %	Gull Wing	100 ppm/°C
TT Electronics/BI 44JR1MEGLFTB	Surface Mount	Cermet	1 MOhms	9	Side Adjustment	0.25 W	0.25 W	0.19 in	0.198 in	5.03 mm	4.83 mm	10 %	Gull Wing	100 ppm/°C
TT Electronics/BI 44JR25KLFTB	Surface Mount	Cermet	25 kOhms	9	Side Adjustment	0.25 W	0.25 W	0.19 in	0.198 in	5.03 mm	4.83 mm	10 %	Gull Wing	100 ppm/°C
TT Electronics/BI 44JR20KLFT7	Surface Mount	Cermet	20 kOhms	9	Side Adjustment	0.25 W	0.25 W	0.19 in	0.198 in	5.03 mm	4.83 mm	10 %	Gull Wing	100 ppm/°C
TT Electronics/BI 44JR5KLFT7	Surface Mount	Cermet	5 kOhms	9	Side Adjustment	0.25 W	0.25 W	0.18 in	0.19 "	4.83 mm	4.57 mm	10 %	J Lead	100 ppm/°C	Rectangular
TT Electronics/BI 44JR10KLFT7	Surface Mount	Cermet	10000 Ohms	9	Side Adjustment	0.25 W	0.25 W	0.18 in	0.19 "	4.83 mm	4.57 mm	10 %	J Lead	100 ppm/°C	Rectangular
TT Electronics/BI 44JR10KLFT13	Surface Mount	Cermet	10000 Ohms	9	Side Adjustment	0.25 W	0.25 W	0.19 in	0.198 in	5.03 mm	4.83 mm	10 %	Gull Wing	100 ppm/°C
TT Electronics/BI 44JR100KLFT7	Surface Mount	Cermet	100 kOhms	9	Side Adjustment	0.25 W	0.25 W	0.19 in	0.198 in	5.03 mm	4.83 mm	10 %	Gull Wing	100 ppm/°C
TT Electronics/BI 44JR200LFTB	Surface Mount	Cermet	200 Ohms	9	Side Adjustment	0.25 W	0.25 W	0.19 in	0.198 in	5.03 mm	4.83 mm	10 %	Gull Wing	100 ppm/°C
TT Electronics/BI 44JR100KLFT13	Surface Mount	Cermet	100 kOhms	9	Side Adjustment	0.25 W	0.25 W	0.19 in	0.198 in	5.03 mm	4.83 mm	10 %	Gull Wing	100 ppm/°C
