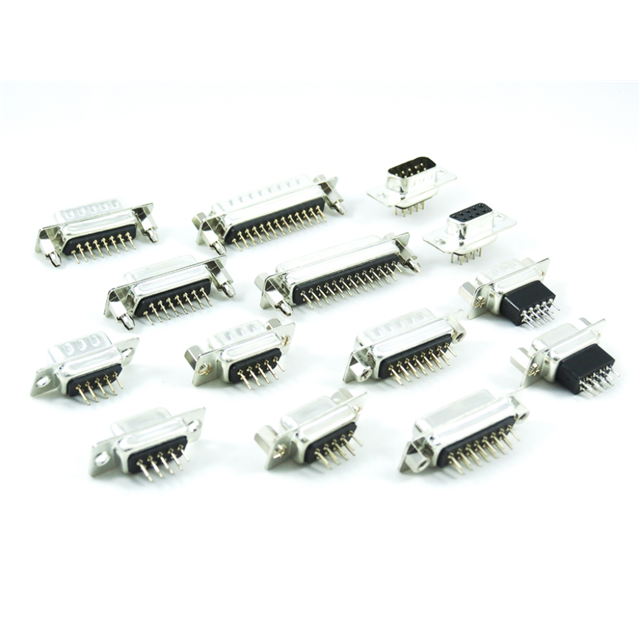

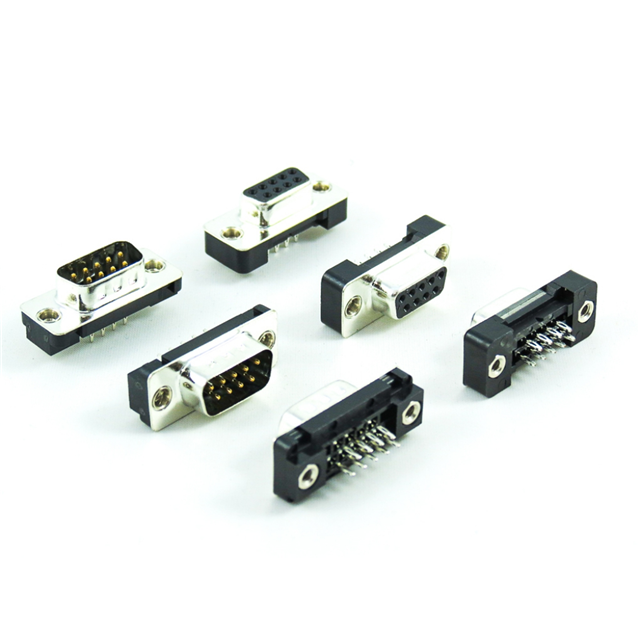

7905 Series
Manufacturer: Oupiin
Beta
⌘K
CONN D-SUB RCPT 15POS VERT SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Contact Material | Connector Style | Number of Positions | Connector Type | Termination | Number of Rows [custom] | Contact Finish | Contact Finish Thickness | Flange Feature | Contact Type | Shell Size, Connector Layout | Mounting Type | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Primary Material | Features | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) | Black | Brass | D-Sub | 15 | Receptacle Female Sockets | Solder | 2 | Gold | Flash | Board Side (4-40) | Signal | 2 | Through Hole | UL94 V-0 | |||||||
Oupiin | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) | Black | Brass | D-Sub | 9 | Receptacle Female Sockets | Solder | 2 | Gold | Flash | Board Side (4-40) | Signal | Through Hole | UL94 V-0 | 1 | DE E | Metal | |||||
 Oupiin | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) | Black | Brass | D-Sub | 25 | Plug Male Pins | Solder | 2 | Gold | Flash | Board Side (4-40) | Signal | Through Hole | UL94 V-0 | Board Lock Grounding Indents | B DB | 3 | |||||
Oupiin | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) | Black | Brass | D-Sub | 15 | Receptacle Female Sockets | Solder | 2 | Gold | Flash | Board Side (4-40) Mating Side Female Screwlock (4-40) | Signal | 2 | Through Hole | UL94 V-0 | Board Lock | ||||||
Oupiin | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) | White | Brass | D-Sub | 9 | Receptacle Female Sockets | Wire Wrap | 2 | Gold | Flash | 4-40 Mating Side Female Screwlock | Signal | Through Hole | UL94 V-0 | 1 | DE E | 3 A | |||||
Oupiin | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) | Black | Brass | D-Sub | 25 | Receptacle Female Sockets | Solder | 2 | Gold | Flash | Board Side (4-40) | Signal | Through Hole | UL94 V-0 | B DB | 3 | ||||||
Oupiin | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) | Black | Brass | D-Sub | 15 | Plug Male Pins | Solder | 2 | Gold | Flash | Board Side (4-40) | Signal | 2 | Through Hole | UL94 V-0 | Grounding Indents | ||||||
Oupiin | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) | Black | Brass | D-Sub | 25 | Receptacle Female Sockets | Solder | 2 | Gold | Flash | Board Side (4-40) | Signal | Through Hole | UL94 V-0 | Board Lock | B DB | 3 | |||||
Oupiin | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) | Black | Brass | D-Sub | 15 | Receptacle Female Sockets | Solder | 2 | Gold | Flash | Board Side (4-40) | Signal | 2 | Through Hole | UL94 V-0 | Board Lock | ||||||
Oupiin | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) | Black | Brass | D-Sub | 15 | Plug Male Pins | Solder | 2 | Gold | Flash | Board Side (4-40) Mating Side Female Screwlock (4-40) | Signal | 2 | Through Hole | UL94 V-0 | Board Lock Grounding Indents |
