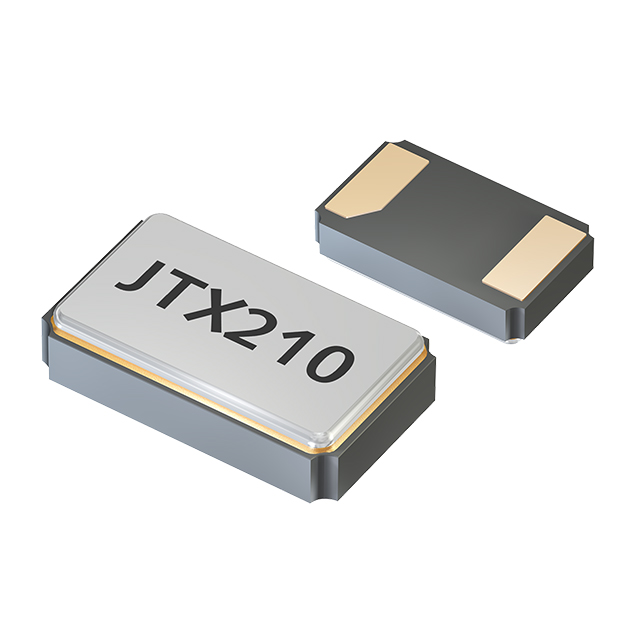

JTX210 Series

Catalog

CRYSTAL 32.7680KHZ 9PF SMD

Part	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency	ESR (Equivalent Series Resistance)	Operating Mode	Load Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Frequency Tolerance	Type
Jauch Quartz Q 0,032768-JTX210-9-20-T2-LF	2-SMD No Lead	0.079 in	0.047 in	1.2 mm	2 mm	0.032768 MHz	90 kOhms	Fundamental	9 pF	0.6 mm	0.024 in	-40 C	105 ░C	Surface Mount	20 ppm	kHz Crystal (Tuning Fork)
Jauch Quartz Q 0,032768-JTX210-12,5-20-T3-LF	2-SMD No Lead	0.079 in	0.047 in	1.2 mm	2 mm	0.032768 MHz	90 kOhms	Fundamental	12.5 pF	0.6 mm	0.024 in	-40 C	125 °C	Surface Mount	20 ppm	kHz Crystal (Tuning Fork)
Jauch Quartz Q 0,032768-JTX210-9-20-T3-LF	2-SMD No Lead	0.079 in	0.047 in	1.2 mm	2 mm	0.032768 MHz	90 kOhms	Fundamental	9 pF	0.6 mm	0.024 in	-40 C	125 °C	Surface Mount	20 ppm	kHz Crystal (Tuning Fork)
Jauch Quartz Q 0,032768-JTX210-12,5-20-T2-LF	2-SMD No Lead	0.079 in	0.047 in	1.2 mm	2 mm	0.032768 MHz	90 kOhms	Fundamental	12.5 pF	0.6 mm	0.024 in	-40 C	105 ░C	Surface Mount	20 ppm	kHz Crystal (Tuning Fork)
Jauch Quartz Q 0,032768-JTX210-12,5-20-T1-LF	2-SMD No Lead	0.079 in	0.047 in	1.2 mm	2 mm	0.032768 MHz	90 kOhms	Fundamental	12.5 pF	0.6 mm	0.024 in	-40 C	85 °C	Surface Mount	20 ppm	kHz Crystal (Tuning Fork)
Jauch Quartz Q 0,032768-JTX210-9-20-T1-80K-LF	2-SMD No Lead	0.079 in	0.047 in	1.2 mm	2 mm	0.032768 MHz	90 kOhms	Fundamental	9 pF	0.6 mm	0.024 in	-40 C	85 °C	Surface Mount	20 ppm	kHz Crystal (Tuning Fork)
