7BB Series

Catalog

AUDIO DIAPHRAGM PIEZO 5700HZ TO 6900HZ WIRE LEAD BULK

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Capacitance @ Frequency	Frequency	Impedance	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination	Size / Dimension

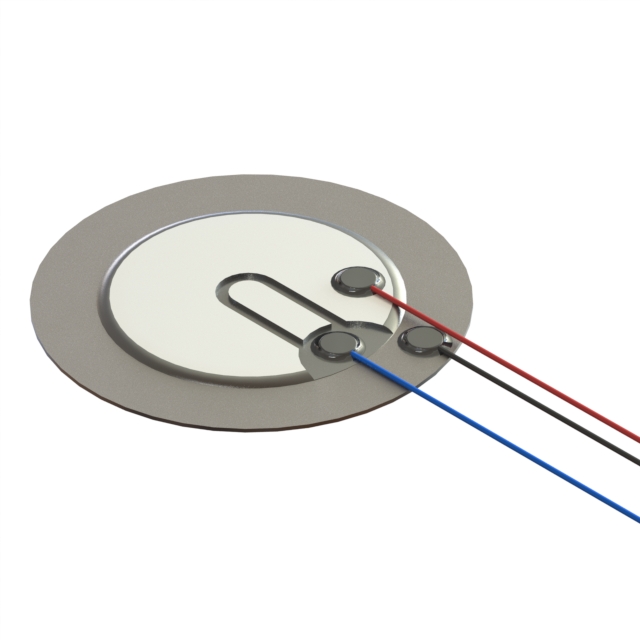

Murata Electronics 7BB-20-6CL0	-20 ░C	70 °C	Feedback	8500 pF	6.3 kHz	500 Ohms	20 mm	0.787 "	Wire Leads

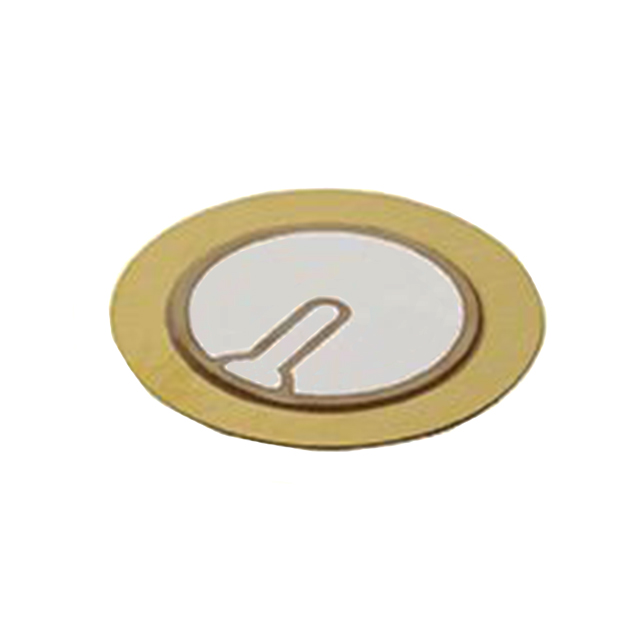

Murata Electronics 7BB-20-6C			Feedback	8500 pF	6.3 kHz	500 Ohms	20 mm	0.787 "	Wire Leads

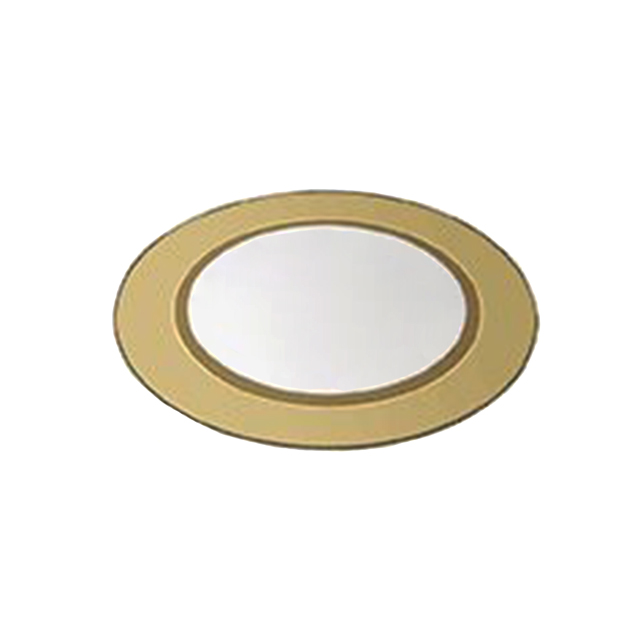

Murata Electronics 7BB-15-6			Standard	1 kHz 10000 pF	6 kHz	800 Ohms		0.591 in	None	15 mm

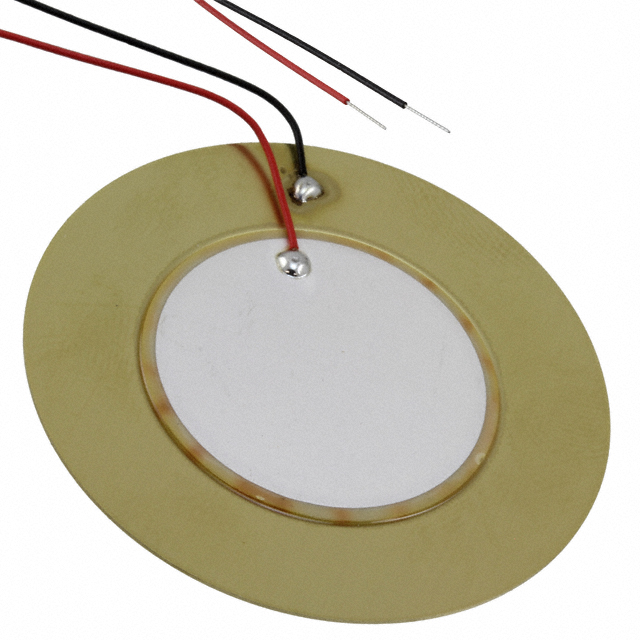

Murata Electronics 7BB-41-2L0			Standard	1 kHz 30000 pF	2.2 kHz	300 Ohms	41 mm	1.614 in	Wire Leads

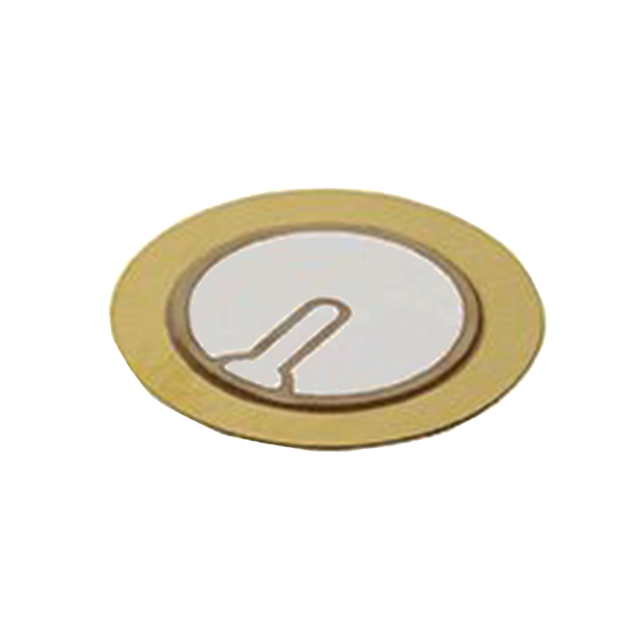

Murata Electronics 7BB-41-2C			Feedback	24000 pF	2.2 kHz	250 Ohms	41 mm	1.614 in	Wire Leads
Murata Electronics 7BB-12-9			Standard	1 kHz 8000 pF	9 kHz	1 kOhms	12 mm	0.472 "	None

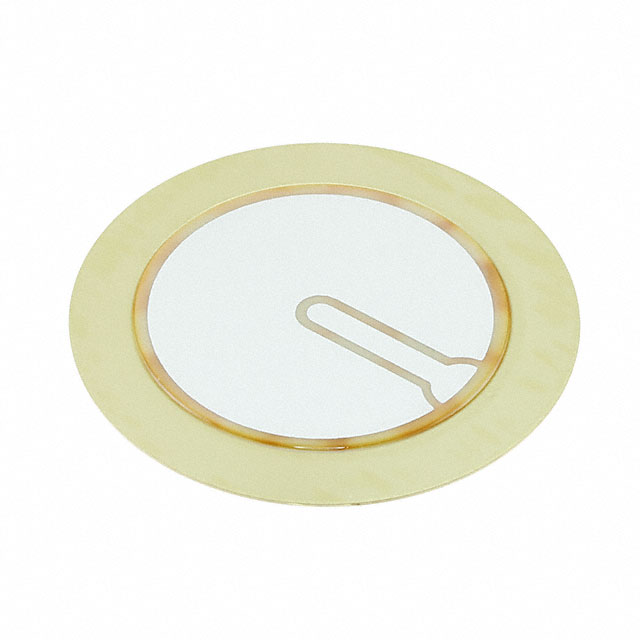

Murata Electronics 7BB-27-4C			Feedback	1 kHz 18000 pF	4.6 kHz	200 Ohms		1.063 in	None	27 mm
Murata Electronics 7BB-41-2CL0	-20 ░C	70 °C	Feedback	24000 pF	2.2 kHz	350 Ohms	41 mm	1.614 in	Wire Leads
Murata Electronics 7BB-35-3CL0	-20 ░C	70 °C	Feedback	26000 pF	2.8 kHz	200 Ohms	35 mm	1.378 "	Wire Leads

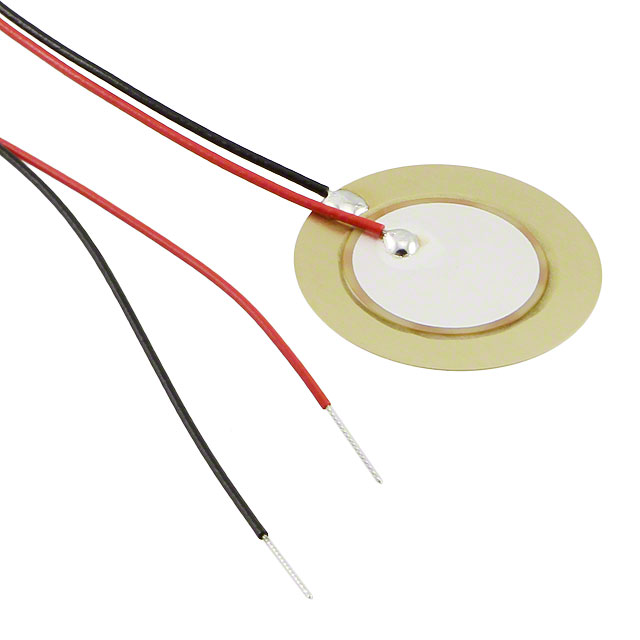

Murata Electronics 7BB-15-6L0	-20 ░C	70 °C	Standard	1 kHz 9500 pF	6 kHz	1.2 kOhms		0.591 in	Wire Leads	15 mm
