3404.2345 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

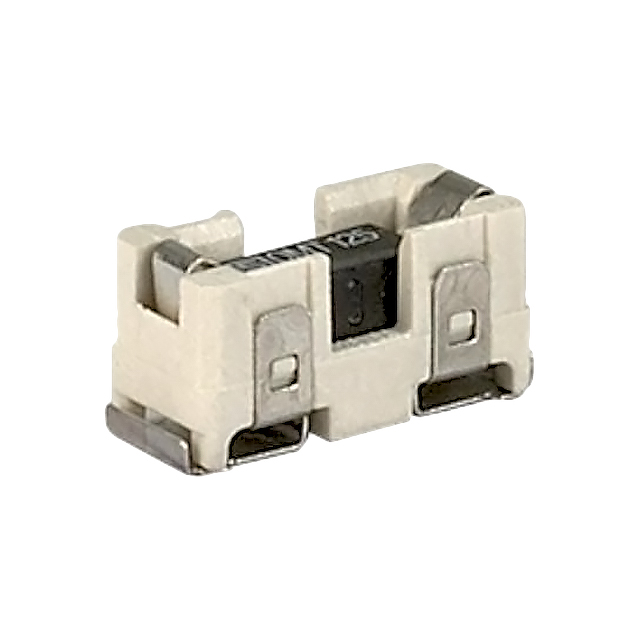

FUSE CHIP FAST ACTING 0.5A 125V SMD SOLDER PAD 12 X 5.2MM THERMOPLASTIC BAG CSA/UL
| Part | Melting I˛t | Fuse Type | Breaking Capacity @ Rated Voltage | Package / Case | Response Time | Mounting Type | Current Rating (Amps) | Voltage Rating - DC | Melting I²t | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.01 | Board Mount (Cartridge Style Excluded) | 100 A | 2-SMD Square End Block with Holder | Fast Blow | Requires Holder Surface Mount | 0.5 A | 125 VDC | 0.01 | 85 °C | -40 C | 6 mm | 0.472 in | 0.205 " | 5.2 mm | 0.236 in | 12 mm | 125 V |
