307 Series
Manufacturer: EDAC Inc.
Beta
⌘K
STANDARD CARD EDGE CONNECTORS CARD EDGE CONNECTOR
| Part | Termination Rows [custom] | Material - Insulation | Termination | Contact Type | Gender | Contact Finish | Number of Positions | Card Type | Contact Material | Number of Positions/Bay/Row | Pitch | Pitch | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Features | Color | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Number of Rows [custom] | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

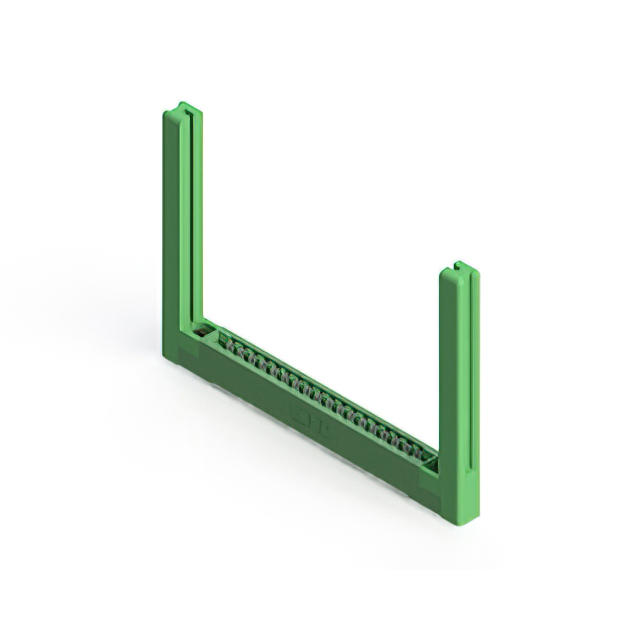

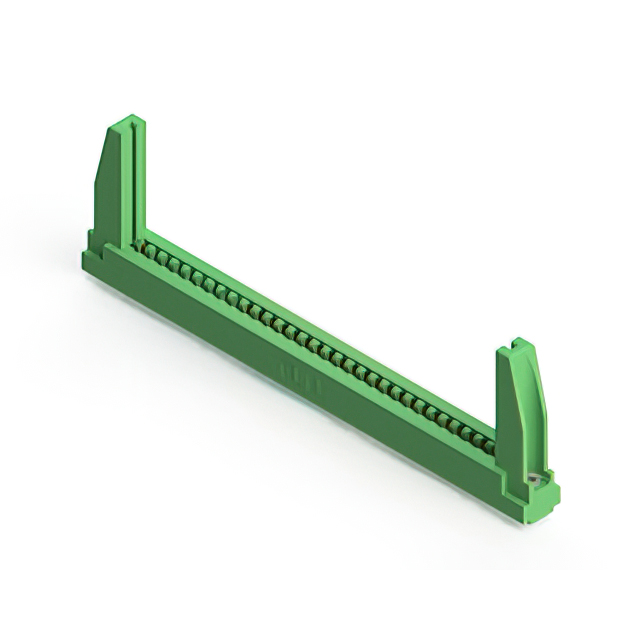

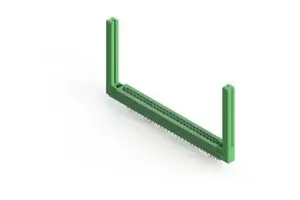

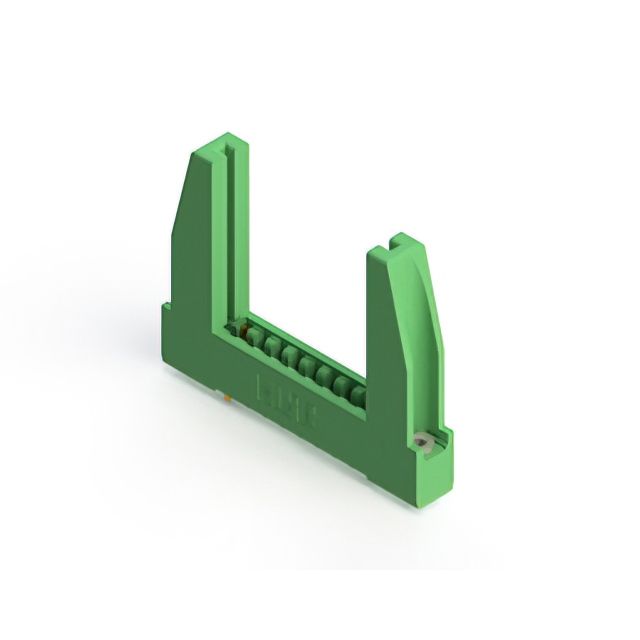

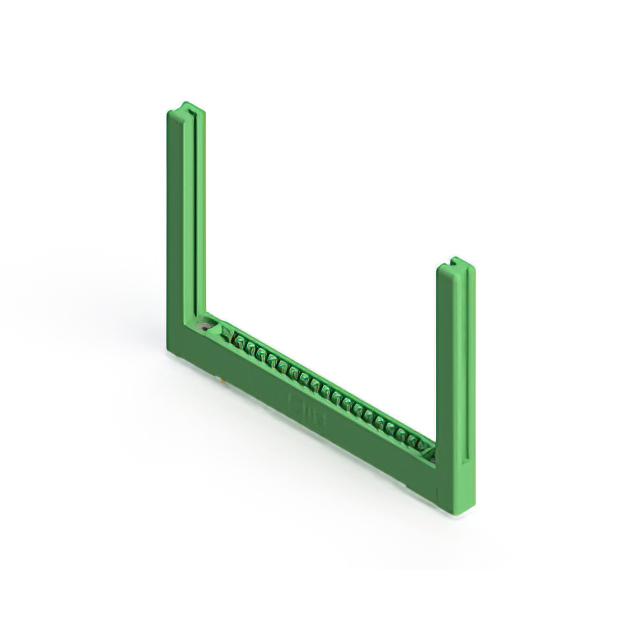

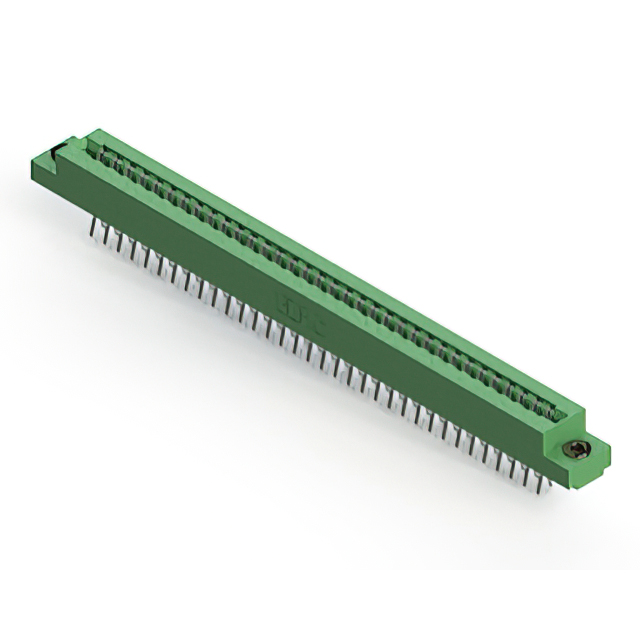

 EDAC Inc. | 2 | Polyester Thermoplastic | Solder | Semi Bellows | Female | Gold | 64 | Non Specified - Dual Edge | Copper Alloy | 32 | 3.96 mm | 0.156 in | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Dual | Card Extender Card Guides | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Solder | Semi Bellows | Female | Tin | 42 | Non Specified - Dual Edge | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Dual | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Floating Bobbin Flush Mount | 2 | 21 | 0.116 " | 2.95 mm | ||||||
 EDAC Inc. | Solder | Semi Bellows | Female | Gold | 40 | Non Specified - Dual Edge | Copper Alloy | 20 Bay/Row | 3.96 mm | 0.156 in | Through Hole | 0.25 Ám | 10 Áin | Dual | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | ||||||||
 EDAC Inc. | Polyester Thermoplastic | Solder Eyelet(s) | Semi Bellows | Female | Gold | 27 | Non Specified - Single Edge | Copper Alloy | 27 | 3.96 mm | 0.156 in | Through Hole | 0.25 Ám | 10 Áin | Single | Card Guides | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | Wire Wrap | Semi Bellows | Female | Tin | 56 | Non Specified - Dual Edge | Copper Alloy | 28 | 3.96 mm | 0.156 in | Through Hole | Dual | Card Guides | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 1 | |||||||
 EDAC Inc. | Polyester Thermoplastic | Wire Wrap | Semi Bellows | Female | Tin | 13 | Non Specified - Single Edge | Copper Alloy | 13 | 3.96 mm | 0.156 in | Through Hole | Single | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 1 | 1 | ||||||
 EDAC Inc. | Polyester Thermoplastic | Solder Eyelet(s) | Semi Bellows | Female | Gold | 20 | Non Specified - Single Edge | Copper Alloy | 20 Bay/Row | 3.96 mm | 0.156 in | Through Hole | 0.25 Ám | 10 Áin | Single | Card Guides | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 1 | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Solder | Semi Bellows | Female | Tin | 68 positions | Non Specified - Dual Edge | Copper Alloy | 34 | 3.96 mm | 0.156 in | Board Edge Straddle Mount | Dual | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Floating Bobbin Flush Mount | 2 | 0.116 " | 2.95 mm | ||||||
 EDAC Inc. | Polyester Thermoplastic | Wire Wrap | Semi Bellows | Female | Gold | 72 | Non Specified - Dual Edge | Copper Alloy | 36 | 3.96 mm | 0.156 in | Right Angle Through Hole | 0.25 Ám | 10 Áin | Dual | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | 2 | 1 | ||||||
 EDAC Inc. | Polyester Thermoplastic | Solder Eyelet(s) | Semi Bellows | Female | Gold | Non Specified - Dual Edge | Copper Alloy | 16 | 3.96 mm | 0.156 in | Surface Mount | 0.25 Ám | 10 Áin | Dual | Card Guides | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 1 |
