FFB1424 Series
Manufacturer: Delta Electronics
Beta
⌘K

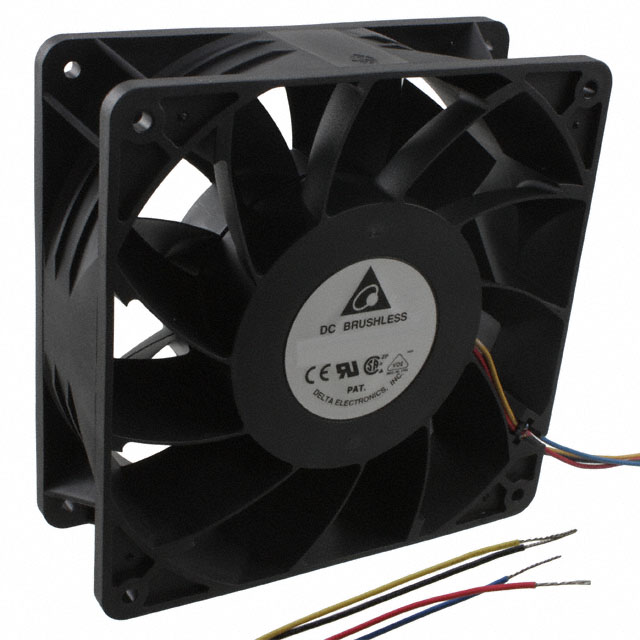

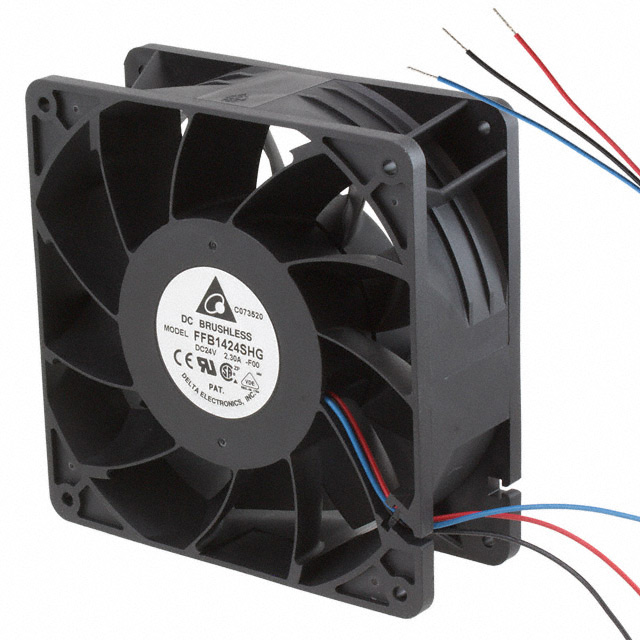

FAN AXIAL 139.7X50.8MM 24VDC
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Lifetime @ Temp. | Material - Frame | Voltage - Rated | Fan Type | Width [y] | Bearing Type | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Features | Weight [custom] | Weight [custom] | Power (Watts) | Termination | Air Flow | Air Flow | Static Pressure | Static Pressure | RPM | Noise | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 1.53 A | 14 VDC | 26.4 VDC | Plastic | 70000 Hrs | Plastic | 24 VDC | Tubeaxial | 50.8 mm | Ball | -10 °C | 50 °C | CE CSA UL VDE | Locked Rotor Protection Speed Sensor (Tach) | 0.67 kg | 1.5 lbs | 36.72 W | 3 Wire Leads | 273.1 CFM | 7.65 m³/min | 194.5 Pa | 0.781 in H2O | 3600 RPM | ||
 Delta Electronics | 1 A | 18 VDC | 26.4 VDC | Plastic | 70000 Hrs | Plastic | 24 VDC | Tubeaxial | 50.8 mm | Ball | -10 °C | 70 °C | CE CSA UL VDE | GR-487 (Salt Fog Protection) PWM Control Speed Sensor (Tach) | 0.67 kg | 1.5 lbs | 24 W | 4 Wire Leads | 252.1 CFM | 7.06 m³/min | 160.4 Pa | 0.644 in H2O | 3200 RPM | 58.5 dB | IP56 - Dust Protected Water Resistant |
