3222-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

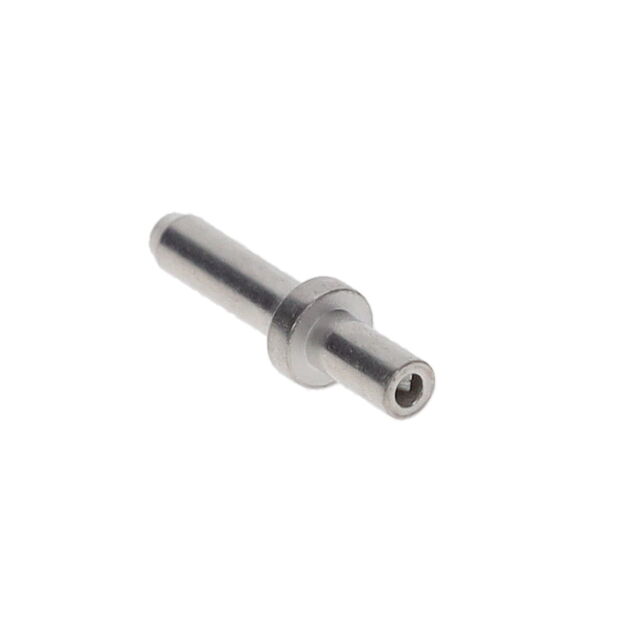

CONN PC PIN CIRC 0.040DIA GOLD
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Board Thickness | Board Thickness | Length - Above Flange | Length - Above Flange [x] | Termination | Terminal Style | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | Gold | Non-Insulated | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | Through Hole | 1.57 mm | 0.062 " | 3.81 mm | 0.15 in | Swage | Single End | Brass Alloy | 2.08 mm | 0.082 " | 6.4 mm | 0.252 in | 50 µin | 1.27 µm | PC Pin | 0.039 in | 0.99 mm |
 Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | Tin | Non-Insulated | 0.04 in | 1.02 mm | 1.78 mm | 0.07 in | Through Hole | 1.57 mm | 0.062 " | 3.81 mm | 0.15 in | Swage | Single End | Brass Alloy | 2.08 mm | 0.082 " | 6.4 mm | 0.252 in | 200 Áin | 5.08 Ám | PC Pin | 0.039 in | 0.99 mm |
Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | Tin-Lead | Non-Insulated | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | Through Hole | 1.57 mm | 0.062 " | 3.81 mm | 0.15 in | Swage | Single End | Brass Alloy | 2.08 mm | 0.082 " | 6.4 mm | 0.252 in | 200 Áin | 5.08 Ám | PC Pin | 0.039 in | 0.99 mm |
