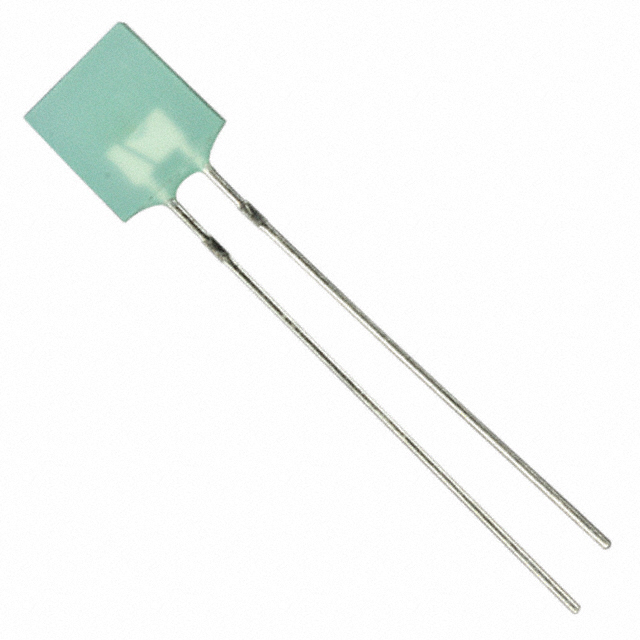

HLMP-0504 Series

Catalog

LED GRN DIFFUSED RECTANGULAR T/H

Part	Wavelength - Dominant	Wavelength - Peak	Lens Color	Lens Transparency	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Package / Case	Current - Test	Viewing Angle	Supplier Device Package	Color	Lens Style	Lens Size [y]	Lens Size [x]	Height (Max) [Max] [z]	Mounting Type	Configuration
Broadcom Limited HLMP-0504	569 nm	565 nm	Green	Diffused	2.6 mcd	2.2 V	Radial	20 mA	100 °	Rectangular	Green	Rectangle with Flat Top	2.35 mm	7.31 mm	8 mm	Through Hole	Standard
Broadcom Limited HLMP-0504-CD000	569 nm	565 nm	Green	Diffused	8.4 mcd	2.2 V	Radial	20 mA	100 °	Rectangular	Green	Rectangle with Flat Top	2.35 mm	7.31 mm	8 mm	Through Hole	Standard
Broadcom Limited HLMP-0504-C0002	569 nm	565 nm	Green	Diffused	2.6 mcd	2.2 V	Radial	20 mA	100 °	Rectangular	Green	Rectangle with Flat Top	2.35 mm	7.31 mm	8 mm	Through Hole	Standard
