EN50306 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HOOK-UP STRND 300V BLACK METER

Part	Wire Gauge	Spool Size	Spool Size	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Cable Type	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Number of Conductors	Shield Type	Conductor Strand [custom]	Conductor Strand [diameter]	Wire Gauge [custom]
TE Connectivity AMP Connectors EN50306-3-RAIL-1X2.50	2.5 mm²	3281 ft	1000 m	0.2 mm	0.008 in	300 VDC	Hook-Up	Copper Tinned	0.173 "	4.4 mm	Enter Number of Meters in Order Quantity	Black	120 °C	-40 C	Polymer	0.0118 in	37
TE Connectivity AMP Connectors EN50306-3-RAIL-3X2.50	2.5 mm²			0.203 mm	0.008 in	300 VDC	Multi-Conductor	Copper Tinned	0.307 in	7.8 mm	Enter Number of Meters in Order Quantity	Black	120 °C	-40 C	Polymer	0.0118 in	37	Copper Tinned	3	Braid
TE Connectivity AMP Connectors EN50306-3-RAIL-4X1.00	1 mm²			0.203 mm	0.008 in	300 VDC	Multi-Conductor	Copper Tinned	0.236 "	5.99 mm	Enter Number of Meters in Order Quantity	Black	120 °C	-40 C	Polymer			Copper Tinned	4	Braid	37	0.0071 in
TE Connectivity AMP Connectors EN50306-3-RAIL-3X1.00	1 mm²			0.203 mm	0.008 in	300 VDC	Multi-Conductor	Copper Tinned	0.217 in	5.51 mm	Enter Number of Meters in Order Quantity	Black	120 °C	-40 C	Polymer			Copper Tinned	3	Braid	37	0.0071 in
TE Connectivity AMP Connectors EN50306-2-RAIL-0.50	0.5 mm˛	3281 ft	1000 m	0.18 mm	0.007 in	300 VDC	Hook-Up	Copper Tinned	0.057 "	1.45 mm	Enter Number of Meters in Order Quantity	White	120 °C	-40 C	Polymer						19	0.0071 in
TE Connectivity AMP Connectors EN50306-3-RAIL-2X1.50	1.5 mm˛			0.203 mm	0.008 in	300 VDC	Multi-Conductor	Copper Tinned	0.24 "	6.1 mm	Enter Number of Meters in Order Quantity	Black	120 °C	-40 C	Polymer		37	Copper Tinned	2	Braid		0.0091 "
TE Connectivity AMP Connectors EN50306-3-RAIL-1X1.50	1.5 mm˛	3281 ft	1000 m	0.2 mm	0.008 in	300 VDC	Hook-Up	Copper Tinned	0.142 in	3.61 mm	Enter Number of Meters in Order Quantity	Black	120 °C	-40 C	Polymer		37					0.0091 "

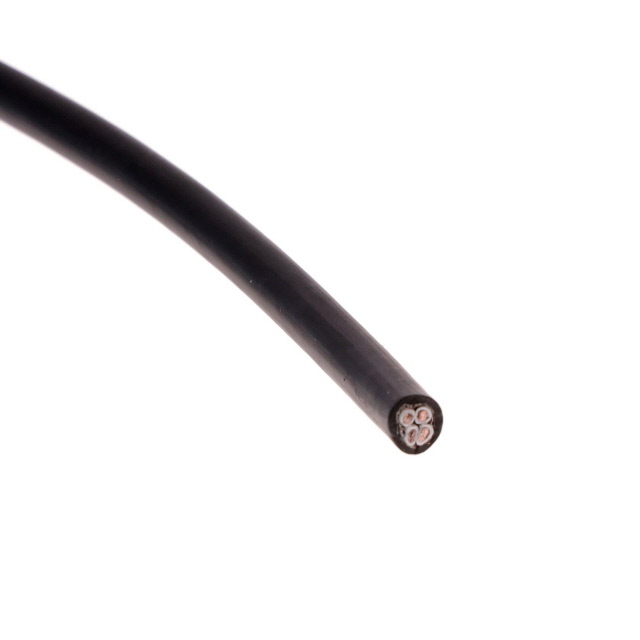

TE Connectivity AMP Connectors EN50306-3-RAIL-4X0.75	0.75 mm²			0.203 mm	0.008 in	300 VDC	Multi-Conductor	Copper Tinned	0.217 in	5.51 mm	Enter Number of Meters in Order Quantity	Black	120 °C	-40 C	Polymer	0.0063 in	37	Copper Tinned	4	Braid			0.75 mm²

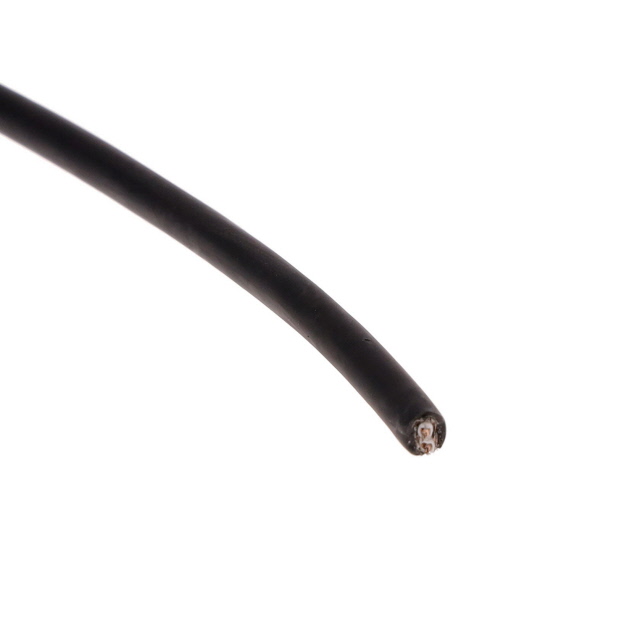

TE Connectivity AMP Connectors EN50306-3-RAIL-2X0.75	0.75 mm²			0.203 mm	0.008 in	300 VDC	Multi-Conductor	Copper Tinned	0.185 in	4.7 mm	Enter Number of Meters in Order Quantity	Black	120 °C	-40 C	Polymer	0.0063 in	37	Copper Tinned	2	Braid			0.75 mm²
TE Connectivity AMP Connectors EN50306-3-RAIL-2X1.00	1 mm²			0.203 mm	0.008 in	300 VDC	Multi-Conductor	Copper Tinned	0.205 in	5.21 mm	Enter Number of Meters in Order Quantity	Black	120 °C	-40 C	Polymer			Copper Tinned	2	Braid	37	0.0071 in
