043232 Series
Manufacturer: Molex
Beta
⌘K

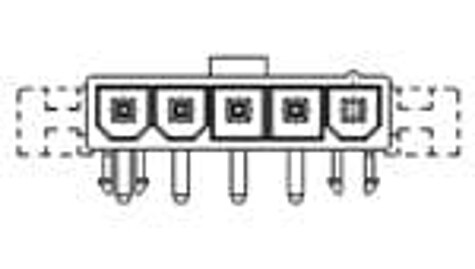

HEADERS & WIRE HOUSINGS MINI-FIT JR RT AN HDR ASSY 5CKT VOIDS
| Part | Number of Positions Loaded | Connector Type | Applications | Termination | Pitch - Mating | Pitch - Mating | Fastening Type | Insulation Material | Shrouding | Mounting Type | Contact Shape | Contact Material | Contact Type | Insulation Color | Insulation Height | Insulation Height [z] | Number of Rows | Material Flammability Rating | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Style | Number of Positions | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 4 | Header | General Purpose Industrial Telecommunications | Solder | 4.2 mm | 0.165 in | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Shrouded - 4 Wall | Through Hole Right Angle | Square | Brass | Male Pin | Natural | 5.4 mm | 0.213 in | 1 | UL94 V-2 | Tin | 3.5 mm | 0.138 in | Board to Cable/Wire | |||||||
Molex | 4 | Header | General Purpose Industrial Telecommunications | Solder | 4.2 mm | 0.165 in | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Shrouded - 4 Wall | Through Hole Right Angle | Square | Brass | Male Pin | Natural | 5.4 mm | 0.213 in | 1 | UL94 V-0 | Tin | 3.5 mm | 0.138 in | Board to Cable/Wire | |||||||
Molex | Header | General Purpose Industrial Telecommunications | Solder | 4.2 mm | 0.165 in | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Shrouded - 4 Wall | Through Hole Right Angle | Square | Brass | Male Pin | Natural | 5.4 mm | 0.213 in | 1 | UL94 V-0 | Tin | 3.5 mm | 0.138 in | Board to Cable/Wire | 4 | All | ||||||
Molex | 2 | Header | General Purpose Industrial Telecommunications | Solder | 4.2 mm | 0.165 in | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Shrouded - 4 Wall | Through Hole Right Angle | Square | Brass | Male Pin | Natural | 5.33 mm | 1 | UL94 V-0 | Tin | 3.5 mm | 0.138 in | Board to Cable/Wire | 4 | 2.54 µm | 100 µin | 0.21 in | 2.54 çm | 100 çin | ||
Molex | 3 | Header | General Purpose Industrial Telecommunications | Solder | 4.2 mm | 0.165 in | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Shrouded - 4 Wall | Through Hole Right Angle | Square | Brass | Male Pin | Natural | 5.4 mm | 0.213 in | 1 | UL94 V-0 | Tin | 3.5 mm | 0.138 in | Board to Cable/Wire | |||||||
Molex | 2 | Header | General Purpose Industrial Telecommunications | Solder | 4.2 mm | 0.165 in | Locking Ramp | Polyamide (PA66) Nylon 6/6 | Shrouded - 4 Wall | Through Hole Right Angle | Square | Brass | Male Pin | Natural | 5.4 mm | 0.213 in | 1 | UL94 V-0 | Tin | 3.5 mm | 0.138 in | Board to Cable/Wire |
