LM78L05 Series

100-mA, 30-V, linear voltage regulator

Catalog

100-mA, 30-V, linear voltage regulator

Part	Current - Quiescent (Iq)	Package / Case	Package / Case [y]	Package / Case [x]	Current - Output	Number of Regulators	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	PSRR	Mounting Type	Output Configuration	Supplier Device Package	Voltage - Input (Max) [Max] [custom]	Voltage - Output (Min/Fixed)
Texas Instruments LM78L05ACMX/NOPB	3 mA	8-SOIC	3.9 mm	0.154 in	100 mA	1	1.81 mOhm	0 °C	125 °C	62 dB	Surface Mount	Positive	8-SOIC	35 V	5 V
Texas Instruments LM78L05ITP/NOPB	3 mA				100 mA	1	1.81 mOhm	-40 °C	85 °C	62 dB	Surface Mount	Positive	8-DSBGA	35 V	5 V

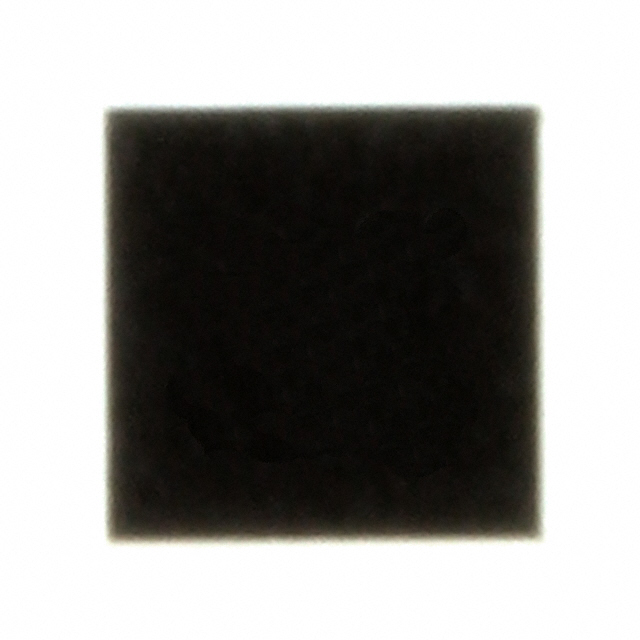

Texas Instruments LM78L05IBP	3 mA	8-VFBGA			100 mA	1	1.81 mOhm	-40 °C	85 °C	62 dB	Surface Mount	Positive	8-uSMD	35 V	5 V
Texas Instruments LM78L05IBPX	3 mA	8-VFBGA			100 mA	1	1.81 mOhm	-40 °C	85 °C	62 dB	Surface Mount	Positive	8-uSMD	35 V	5 V
Texas Instruments LM78L05ACZ	3 mA	TO-226-3 TO-92-3			100 mA	1	1.81 mOhm	0 °C	125 °C	62 dB	Through Hole	Positive	TO-92-3	35 V	5 V
Texas Instruments LM78L05ACZ/LFT7	3 mA	TO-226-3 TO-92-3			100 mA	1	1.81 mOhm	0 °C	125 °C	62 dB	Through Hole	Positive	TO-92-3	35 V	5 V
Texas Instruments LM78L05ITPX/NOPB	3 mA				100 mA	1	1.81 mOhm	-40 °C	85 °C	62 dB	Surface Mount	Positive	8-DSBGA	35 V	5 V
Texas Instruments LM78L05AIM/NOPB	3 mA	8-SOIC	3.9 mm	0.154 in	100 mA	1	1.81 mOhm	-40 °C	125 °C	62 dB	Surface Mount	Positive	8-SOIC	35 V	5 V
Texas Instruments LM78L05ACZ/LFT4	3 mA	TO-226-3 TO-92-3			100 mA	1	1.81 mOhm	0 °C	125 °C	62 dB	Through Hole	Positive	TO-92-3	35 V	5 V
Texas Instruments LM78L05ACZ/LFT3	3 mA	TO-226-3 TO-92-3			100 mA	1	1.81 mOhm	0 °C	125 °C	62 dB	Through Hole	Positive	TO-92-3	35 V	5 V

Catalog

100-mA, 30-V, linear voltage regulator

Key Features

• For lower cost alternative, see theUA78LInput voltage up to 30 VOutput voltage tolerances of ±5% over the temperature rangeAvailable output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 VOutput current of 100 mAOutput transistor safe area protectionInternal thermal overload protectionInternal short-circuit current limitNo external componentsAvailable in tiny DSBGA packageAvailable in 3-pin TO-92 and 8-pin SOIC low profile packagesFor lower cost alternative, see theUA78LInput voltage up to 30 VOutput voltage tolerances of ±5% over the temperature rangeAvailable output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 VOutput current of 100 mAOutput transistor safe area protectionInternal thermal overload protectionInternal short-circuit current limitNo external componentsAvailable in tiny DSBGA packageAvailable in 3-pin TO-92 and 8-pin SOIC low profile packages

Description

The LM78L series (LM78Lxx throughout this document) of three terminal positive regulators is available with several fixed output voltages, making them useful in a wide range of applications. Used as a Zener-diode and resistor combination replacement, the LM78Lxx usually provides an effective output impedance improvement of two orders of magnitude and lower quiescent current. These regulators can provide local, on-card regulation, eliminating distribution problems associated with single-point regulation. The available voltages allow the LM78Lxx to be used in logic systems, instrumentation, HiFi, and other solid-state electronic equipment. The LM78Lxx is available in the plastic TO-92 (LP) package, the SOIC (D) package, and a chip-sized package (8-Bump DSBGA) using TI’s DSBGA package technology. With adequate heat sinking, the regulator can deliver 100-mA output current. Current limiting is included to limit the peak output current to a safe value. Safe area protection for the output transistors is provided to limit internal power dissipation. If internal power dissipation is too high for the heat sinking provided, the thermal shutdown circuit prevents the IC from overheating. See theAN-1112 DSBGA Wafer Level Chip Scale Packageapplication notefor DSBGA considerations. For more information on the TO-92 package, see theTO-92 Packing Options/Ordering Instructionsapplication report. The LM78L series (LM78Lxx throughout this document) of three terminal positive regulators is available with several fixed output voltages, making them useful in a wide range of applications. Used as a Zener-diode and resistor combination replacement, the LM78Lxx usually provides an effective output impedance improvement of two orders of magnitude and lower quiescent current. These regulators can provide local, on-card regulation, eliminating distribution problems associated with single-point regulation. The available voltages allow the LM78Lxx to be used in logic systems, instrumentation, HiFi, and other solid-state electronic equipment. The LM78Lxx is available in the plastic TO-92 (LP) package, the SOIC (D) package, and a chip-sized package (8-Bump DSBGA) using TI’s DSBGA package technology. With adequate heat sinking, the regulator can deliver 100-mA output current. Current limiting is included to limit the peak output current to a safe value. Safe area protection for the output transistors is provided to limit internal power dissipation. If internal power dissipation is too high for the heat sinking provided, the thermal shutdown circuit prevents the IC from overheating. See theAN-1112 DSBGA Wafer Level Chip Scale Packageapplication notefor DSBGA considerations. For more information on the TO-92 package, see theTO-92 Packing Options/Ordering Instructionsapplication report.
