NPIC6C595 Series
Manufacturer: Nexperia USA Inc.
Beta
⌘K
COUNTER SHIFT REGISTERS NPIC6C595PW/SOT403/TSSOP16
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Type | Logic Type | Mounting Type | Supplier Device Package | Number of Bits per Element [custom] | Function | Package / Case [y] | Package / Case | Package / Case [y] | Number of Elements | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

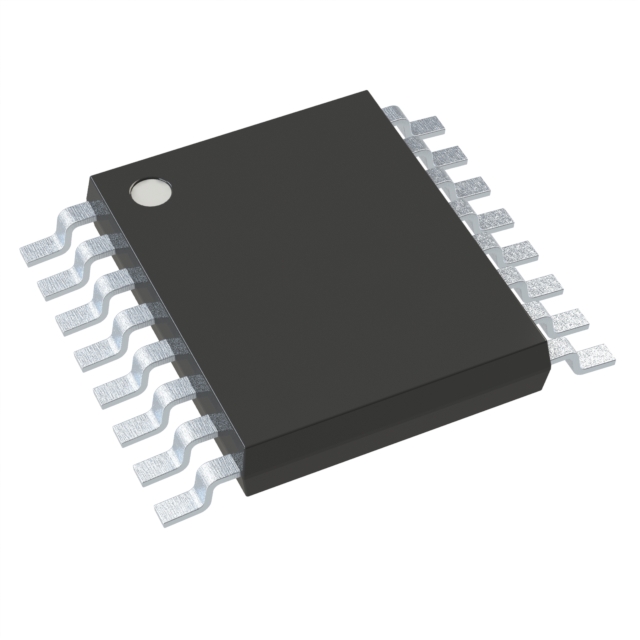

 Nexperia USA Inc. | 5.5 V | 4.5 V | Open Drain | Shift Register | Surface Mount | 16-TSSOP | 8 | Serial Serial to Parallel | 4.4 mm | 16-TSSOP | 0.173 in | 1 | 125 °C | -40 C | |||
 Nexperia USA Inc. | 5.5 V | 4.5 V | Open Drain | Shift Register | Surface Mount | 16-SO | 8 | Serial Serial to Parallel | 16-SOIC | 1 | 125 °C | -40 C | 0.154 in 3.9 mm | AEC-Q100 | Automotive | ||

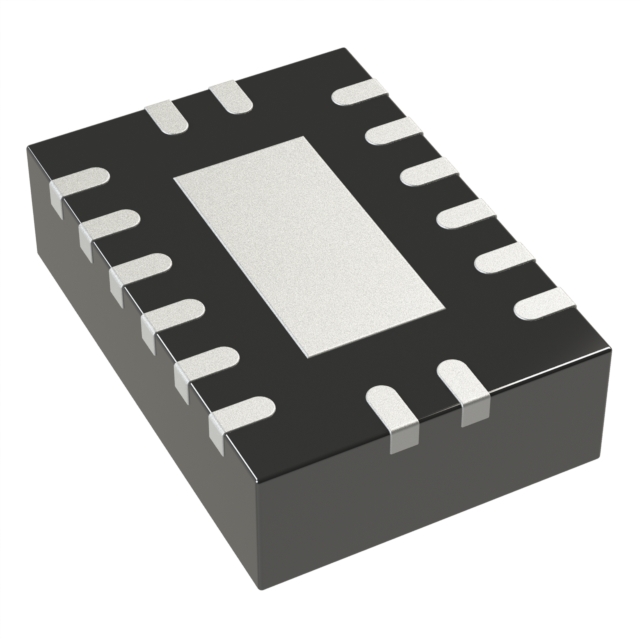

 Nexperia USA Inc. | 5.5 V | 4.5 V | Open Drain | Shift Register | Surface Mount | 16-DHVQFN (2.5x3.5) | 8 | Serial Serial to Parallel | 16-VFQFN Exposed Pad | 1 | 125 °C | -40 C | |||||
Nexperia USA Inc. | 5.5 V | 4.5 V | Open Drain | Shift Register | Surface Mount | 16-TSSOP | 8 | Serial Serial to Parallel | 4.4 mm | 16-TSSOP | 0.173 in | 1 | 125 °C | -40 C | AEC-Q100 | Automotive | |
Nexperia USA Inc. | 5.5 V | 4.5 V | Open Drain | Shift Register | Surface Mount | 16-SO | 8 | Serial Serial to Parallel | 16-SOIC | 1 | 125 °C | -40 C | 0.154 in 3.9 mm | ||||
Nexperia USA Inc. | 5.5 V | 4.5 V | Open Drain | Shift Register | Surface Mount | 16-DHVQFN (2.5x3.5) | 8 | Serial Serial to Parallel | 16-VFQFN Exposed Pad | 1 | 125 °C | -40 C | AEC-Q100 | Automotive |
