20.24.9 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K

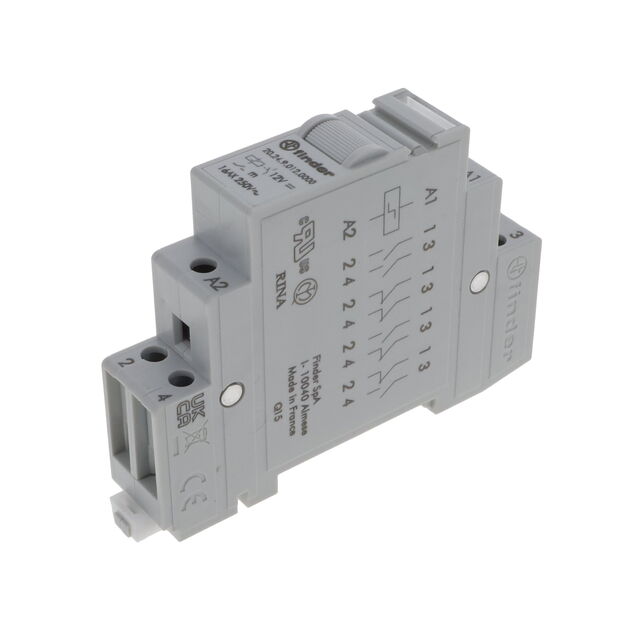

RELAY STEP DPST 16A 12V
| Part | Coil Resistance | Relay Type | Switching Voltage [Max] | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Features | Load - Max Switching | Contact Rating (Current) | Contact Material | Termination Style | Contact Form | Approval Agency | Mounting Type | Coil Current | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Finder Relays, Inc. | 27 Ohms | Step (Sequence) | 400 VAC | 12 VDC | 40 °C | -40 C | Latching Single Coil | Mechanical Indicator Test Button | 6400 VA | 16 A | Silver Nickel (AgNi) | Screw Terminal | DPST-NO (2 Form A) | CE cULus EAC RINA UKCA | DIN Rail | 440 mA | |
 Finder Relays, Inc. | 105 Ohms | Step (Sequence) | 400 VAC | 24 VDC | 40 °C | -40 C | Latching Single Coil | Mechanical Indicator Test Button | 6400 VA | 16 A | Silver Nickel (AgNi) | Screw Terminal | DPST-NO (2 Form A) | CE cULus EAC RINA UKCA | DIN Rail | 230 mA | 21.6 VDC |
