LNE-36 Series

Catalog

LED DRVR CC/CV AC/DC 36V 8.9A

Part	Mounting Type	Ratings	Standard Number	Voltage - Input (Max) [Max]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Isolation	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Dimming	Current - Output (Max) [Max]	Power (Watts)	Features	Type	Voltage - Input (Min) [Min]	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Topology	Weight	Weight
Delta Electronics LNE-36V320WDAA	Chassis Mount	IP67	50581 55015 55024 61000-3-2 61000-3-3 61347-1 61347-2-13 62384	305 VAC	Wire Leads	70 °C	-40 C	94.5 %	3.85 kV	UL	252 mm	1.72 in	43.7 mm	3.54 in	89.9 mm	9.92 "	Analog PWM	8.9 A	320 W	OCP OTP OVP SCP	Constant Current Voltage	90 VAC	18 V	36 V	1	AC DC Converter

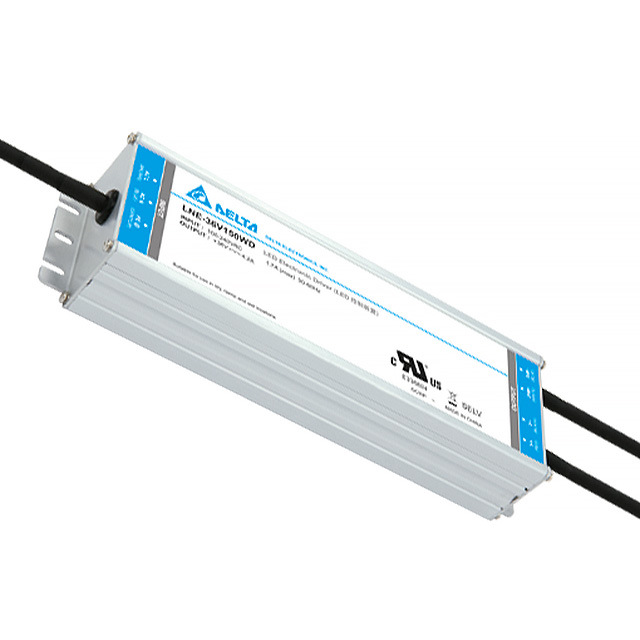

Delta Electronics LNE-36V150WDAA	Chassis Mount	IP67	50581 60950-1 8750	305 VAC	Wire Leads	70 °C	-40 C	93 %	3.85 kV	UL	204 mm	1.53 in	38.8 mm	2.68 in	68 mm	8.03 in	Analog PWM	4.2 A	150 W	OCP OTP OVP SCP	Constant Current Voltage	90 VAC	18 V	36 V	1	AC DC Converter	1.1 kg	2.4 lbs

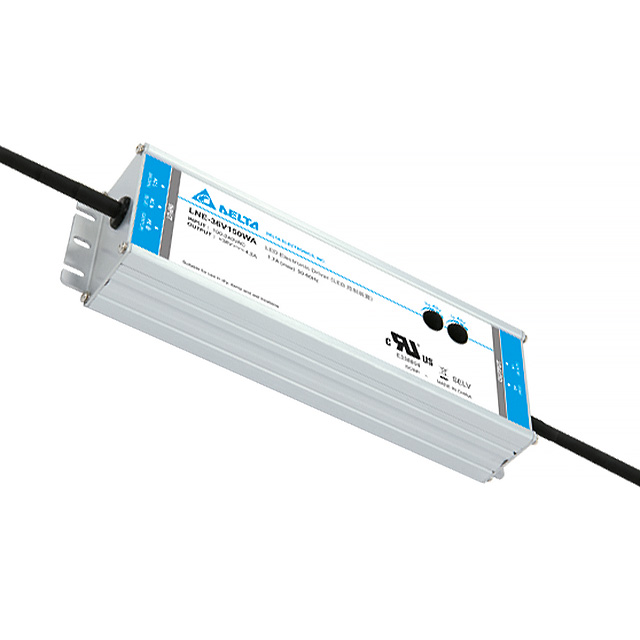

Delta Electronics LNE-36V150WAAA	Chassis Mount	IP65	50581 60950-1 8750	305 VAC	Wire Leads	70 °C	-40 C	93 %	3.85 kV	UL	204 mm	1.53 in	38.8 mm	2.68 in	68 mm	8.03 in		4.2 A	150 W	OCP OTP OVP SCP	Constant Current Voltage	90 VAC	18 V	36 V	1	AC DC Converter	1.1 kg	2.4 lbs
