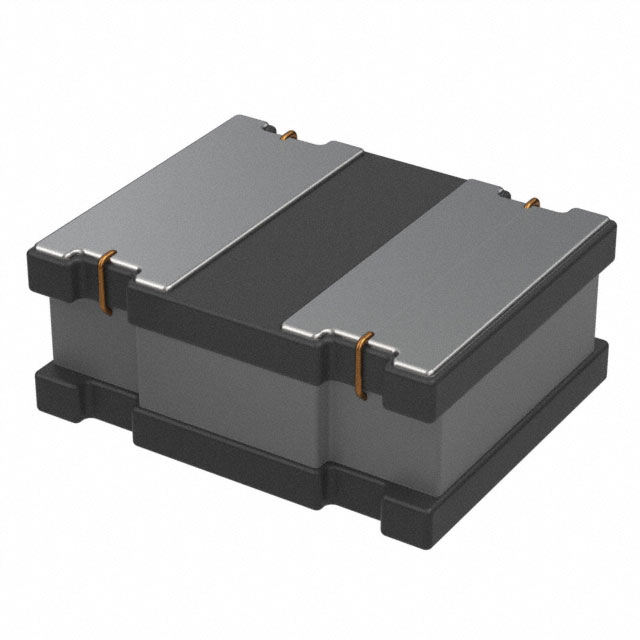

SDEM25201T Series

Catalog

FIXED IND 240NH 4.3A 0.023OHM SM

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Current - Saturation (Isat)	Inductance Frequency - Test	Shielding	Material - Core	Tolerance	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Inductance	DC Resistance (DCR)
Delta Electronics/Cyntec SDEM25201T-R24MS	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	2520 Metric	1008	-55 C	125 °C	4.3 A	6.3 A	1 MHz	Shielded	Metal	20 %	23 mOhm	0.039 in	1 mm	2520	240 nH
Delta Electronics/Cyntec SDEM25201T-1R5MS	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	2520 Metric	1008	-55 C	125 °C	2.2 A	2.8 A	1 MHz	Shielded	Metal	20 %		0.039 in	1 mm	2520	1.5 µH	100 mOhm
Delta Electronics/Cyntec SDEM25201T-3R3MS	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	2520 Metric	1008	-55 C	125 °C	1.53 A	1.62 A	1 MHz	Shielded	Metal	20 %	216 mOhm	0.039 in	1 mm	2520	3.3 µH
Delta Electronics/Cyntec SDEM25201T-R33MS	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	2520 Metric	1008	-55 C	125 °C	4.2 A	5.85 A	1 MHz	Shielded	Metal	20 %		0.039 in	1 mm	2520	330 nH	29 mOhm
Delta Electronics/Cyntec SDEM25201T-220MS	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	2520 Metric	1008	-55 C	125 °C	0.45 A	0.6 A	1 MHz	Shielded	Metal	20 %	1.2 Ohm	0.039 in	1 mm	2520	22 µH
Delta Electronics/Cyntec SDEM25201T-1R0MS	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	2520 Metric	1008	-55 C	125 °C	3 A	3.6 A	1 MHz	Shielded	Metal	20 %		0.039 in	1 mm	2520	1 µH	62 mOhm
Delta Electronics/Cyntec SDEM25201T-2R2MS	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	2520 Metric	1008	-55 C	125 °C	1.97 A	2.3 A	1 MHz	Shielded	Metal	20 %		0.039 in	1 mm	2520	2.2 µH	115 mOhm
Delta Electronics/Cyntec SDEM25201T-R68MS	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	2520 Metric	1008	-55 C	125 °C	3.2 A	3.78 A	1 MHz	Shielded	Metal	20 %	47 mOhm	0.039 in	1 mm	2520	0.68 µH
Delta Electronics/Cyntec SDEM25201T-100MS	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	2520 Metric	1008	-55 C	125 °C	0.85 A	1.1 A	1 MHz	Shielded	Metal	20 %	689 mOhm	0.039 in	1 mm	2520	10 µH
Delta Electronics/Cyntec SDEM25201T-R47MS	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	2520 Metric	1008	-55 C	125 °C	3.6 A	5 A	1 MHz	Shielded	Metal	20 %	35 mOhm	0.039 in	1 mm	2520	470 nH
