628-M25 Series
Manufacturer: EDAC Inc.
Beta
⌘K

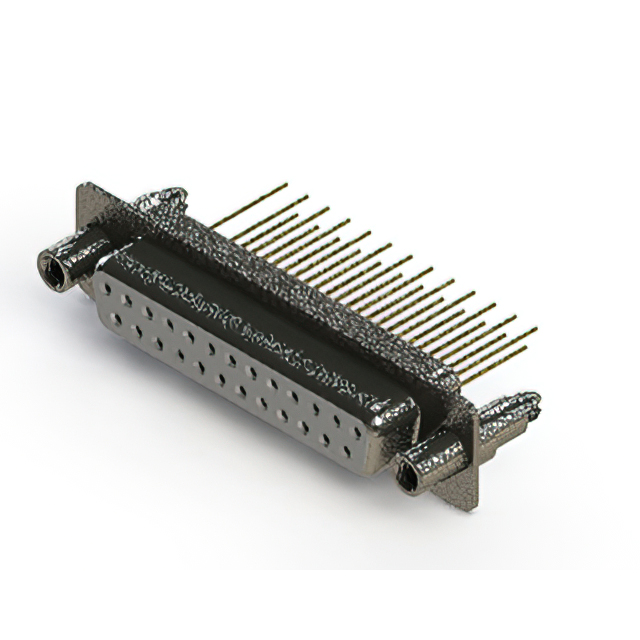

628M SERIES VERTICAL D-SUB RECEP
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Termination | Features | Connector Style | Material Flammability Rating | Connector Type | Number of Rows [custom] | Number of Positions | Mounting Type | Current Rating (Amps) | Flange Feature | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Signal and Power | B DB | 3 | Solder | Shielded | D-Sub | UL94 V-0 | Receptacle Female Sockets | 2 | 25 | Through Hole | 5 A | Housing/Shell (Unthreaded) | Gold | 0.38 µm | 15 µin | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | Signal and Power | B DB | 3 | Shielded | D-Sub | UL94 V-0 | Receptacle Female Sockets | 2 | 25 | Free Hanging (In-Line) | 5 A | Housing/Shell | Gold | Flash | 4-40 | ||||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Signal and Power | B DB | 3 | Solder | Board Lock Shielded | D-Sub | UL94 V-0 | Receptacle Female Sockets | 2 | 25 | Through Hole | 5 A | 4-40 | Gold | 0.38 µm | 15 µin | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | Signal and Power | B DB | 3 | Solder | Board Lock Shielded | D-Sub | UL94 V-0 | Receptacle Female Sockets | 2 | 25 | Through Hole | 5 A | 4-40 | Gold | Flash | Nickel Plated Steel | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Signal and Power | B DB | 3 | Shielded | D-Sub | UL94 V-0 | Receptacle Female Sockets | 2 | 25 | Free Hanging (In-Line) | 5 A | Housing/Shell (Unthreaded) | Gold | Flash | Nickel Plated Steel | ||||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Signal and Power | B DB | 3 | Solder | Shielded | D-Sub | UL94 V-0 | Receptacle Female Sockets | 2 | 25 | Through Hole | 5 A | Housing/Shell | Gold | 0.38 µm | 15 µin | 4-40 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | Signal and Power | B DB | 3 | Solder | Board Lock Shielded | D-Sub | UL94 V-0 | Receptacle Female Sockets | 2 | 25 | Through Hole | 5 A | 4-40 | Gold | 0.76 Ám | 30 Áin | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Signal and Power | B DB | 3 | Solder | Board Lock Shielded | D-Sub | UL94 V-0 | Receptacle Female Sockets | 2 | 25 | Through Hole | 5 A | 4-40 | Gold | 0.76 Ám | 30 Áin | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Signal and Power | B DB | 3 | Solder | Shielded | D-Sub | UL94 V-0 | Receptacle Female Sockets | 2 | 25 | Through Hole | 5 A | Housing/Shell | Gold | 0.76 Ám | 30 Áin | 4-40 | Nickel Plated Steel | |
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Signal and Power | B DB | 3 | Solder | Board Lock Shielded | D-Sub | UL94 V-0 | Receptacle Female Sockets | 2 | 25 | Through Hole | 5 A | 4-40 | Gold | 0.38 µm | 15 µin |
