PAG.M1 Series
Manufacturer: LEMO
Beta
⌘K

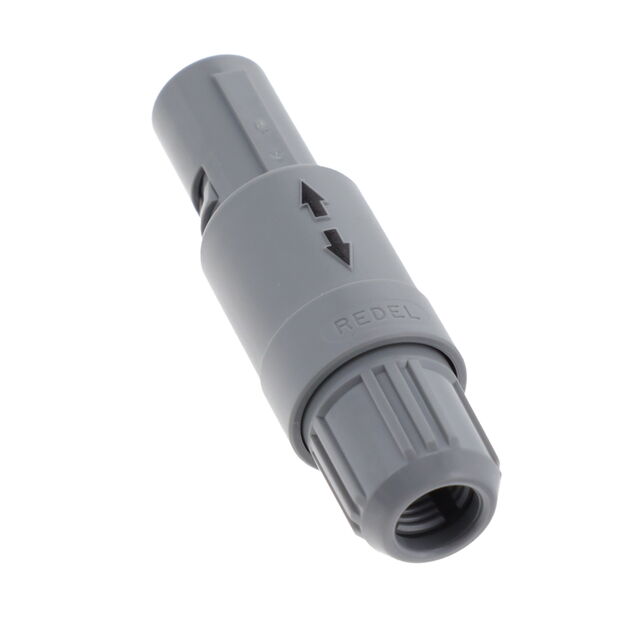

CONN PLUG MALE 14P GOLD SLDR CUP
| Part | Features | Insert Material | Shell Size - Insert | Contact Finish - Mating | Orientation [custom] | Fastening Type | Shielding | Shell Material | Backshell Material, Plating | Color | Applications | Mounting Type | Ingress Protection | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Current Rating (Amps) | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Connector Type | Cable Opening [Max] | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Backshell | Polyetheretherketone (PEEK) | M14 | Gold | G | Detent Lock Push-Pull | Unshielded | Polysulfone (PSU) | Polysulfone (PSU) | Gray | Automotive Industrial Medical Testing Equipment & Measurement | Free Hanging (In-Line) | IP50 - Dust Protected | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | 2 A | Plastic | 150 °C | -50 °C | 14 | Plug Male Pins | ||
LEMO | Backshell | Polyetheretherketone (PEEK) | M10 | Gold | G | Detent Lock Push-Pull | Unshielded | Polysulfone (PSU) | Polysulfone (PSU) | Gray | Automotive Industrial Medical Testing Equipment & Measurement | Free Hanging (In-Line) | IP50 - Dust Protected | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | 3 A | Plastic | 150 °C | -50 °C | 10 | Plug Male Pins | ||
LEMO | Backshell | Polyetheretherketone (PEEK) | M10 | Gold | G | Detent Lock Push-Pull | Unshielded | Polyetherimide (PEI) | Polyetherimide (PEI) | Black | Automotive Industrial Medical Testing Equipment & Measurement | Free Hanging (In-Line) | IP50 - Dust Protected | 0.256 in | 5.3 mm | 0.209 in | 3 A | Plastic | 170 °C | -50 °C | 10 | Plug Male Pins | 6.5 mm | ||
 LEMO | Backshell | Polyetheretherketone (PEEK) | M14 | Gold | G | Detent Lock Push-Pull | Unshielded | Polysulfone (PSU) | Polysulfone (PSU) | Gray | Automotive Industrial Medical Testing Equipment & Measurement | Free Hanging (In-Line) | IP50 - Dust Protected | 0.256 in | 5.3 mm | 0.209 in | 2 A | Plastic | 150 °C | -50 °C | 14 | Plug Male Pins | 6.5 mm | ||
LEMO | Backshell | Polyetheretherketone (PEEK) | M10 | Gold | G | Detent Lock Push-Pull | Unshielded | Polysulfone (PSU) | Polysulfone (PSU) | Black | Automotive Industrial Medical Testing Equipment & Measurement | Free Hanging (In-Line) | IP50 - Dust Protected | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | 3 A | Plastic | 150 °C | -50 °C | 10 | Plug Male Pins | ||
LEMO | Backshell | Polyetheretherketone (PEEK) | M10 | Gold | G | Detent Lock Push-Pull | Unshielded | Polysulfone (PSU) | Polysulfone (PSU) | Gray | Automotive Industrial Medical Testing Equipment & Measurement | Free Hanging (In-Line) | IP50 - Dust Protected | 0.256 in | 5.3 mm | 0.209 in | 3 A | Plastic | 150 °C | -50 °C | 10 | Plug Male Pins | 6.5 mm | ||
LEMO | Backshell | Polyetheretherketone (PEEK) | M10 | Gold | G | Detent Lock Push-Pull | Unshielded | Polysulfone (PSU) | Polysulfone (PSU) | Gray Red | Automotive Industrial Medical Testing Equipment & Measurement | Free Hanging (In-Line) | IP50 - Dust Protected | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | 3 A | Plastic | 150 °C | -50 °C | 10 | Plug Male Pins | ||
LEMO | Backshell | Polyetheretherketone (PEEK) | M10 | Gold | G | Detent Lock Push-Pull | Unshielded | Polysulfone (PSU) | Polysulfone (PSU) | Blue Gray | Automotive Industrial Medical Testing Equipment & Measurement | Free Hanging (In-Line) | IP50 - Dust Protected | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | 3 A | Plastic | 150 °C | -50 °C | 10 | Plug Male Pins | ||
LEMO | Backshell | Polyetheretherketone (PEEK) | M14 | Gold | G | Detent Lock Push-Pull | Unshielded | Polysulfone (PSU) | Polysulfone (PSU) | Black | Automotive Industrial Medical Testing Equipment & Measurement | Free Hanging (In-Line) | IP50 - Dust Protected | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | 2 A | Plastic | 150 °C | -50 °C | 14 | Plug Male Pins | ||
Backshell | Polyetheretherketone (PEEK) | M14 | Gold | G | Detent Lock Push-Pull | Unshielded | Polyetherimide (PEI) | Polyetherimide (PEI) | Gray | Automotive Industrial Medical Testing Equipment & Measurement | Free Hanging (In-Line) | IP50 - Dust Protected | 0.205 in | 0.157 in | 2 A | Plastic | 170 °C | -50 °C | 14 | Plug Male Pins | 4 mm 5.2 mm |
