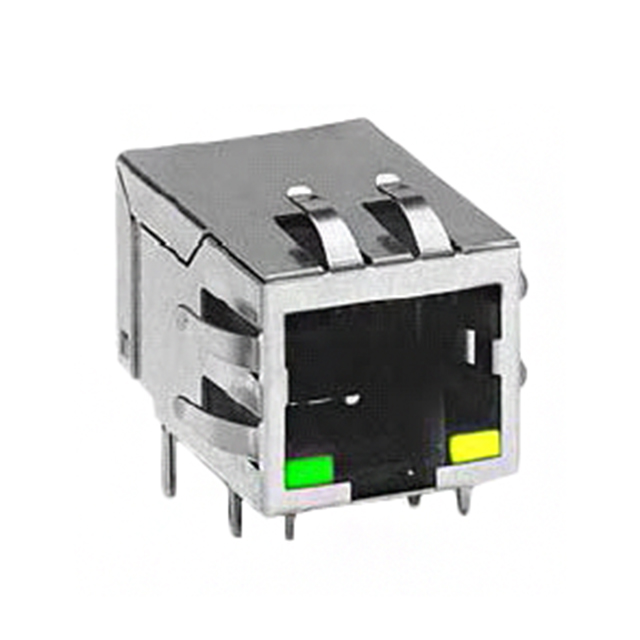

J1B1211 Series
Manufacturer: WIZnet
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CONN JACK 1PORT 100 BASE-T PCB
| Part | Applications | Features | Shielding | Operating Temperature (Min) | Operating Temperature (Max) | Orientation Angle | Orientation Direction | Termination | Height Above Board | Number of Rows | LED Color | Mounting Type | Number of Ports | Contact Finish | Tab Direction | Number of Cores per Jack | Connector Type | Contact Material | Housing Material | Contact Finish Thickness | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WIZnet | 10/100 Base-T AutoMDIX | Board Guide | EMI Finger Shielded | -40 °C | 85 °C | 90 ° | Right | Solder | 0.526 in | 1 | Green - Yellow | Through Hole | 1 | Gold | Down | 4 | RJ45 | Phosphor Brass | Thermoplastic | 6 µin | Brass |
