R4ABLKBL Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPST 20A 125V
| Part | Mechanical Life | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination Style | Switch Function | Voltage Rating - AC | Mounting Type | Circuit | Color - Actuator/Cap | Actuator Marking | Actuator Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 30000 Steps | 6000 Cycles | 55 °C | -20 ░C | 20 A | 30.1 mm | 11.1 mm | Quick Connect - 0.250" (6.3mm) | On-Off | 125 V | Panel Mount Snap-In | SPST | Black | No Marking | Concave (Curved) | |
 E-Switch | 30000 Steps | 6000 Cycles | 55 °C | -20 ░C | 20 A | 30.1 mm | 11.1 mm | Quick Connect - 0.250" (6.3mm) | On-Off | 125 V | Panel Mount Snap-In | SPST | Black | - = - = | Concave (Curved) | UL |

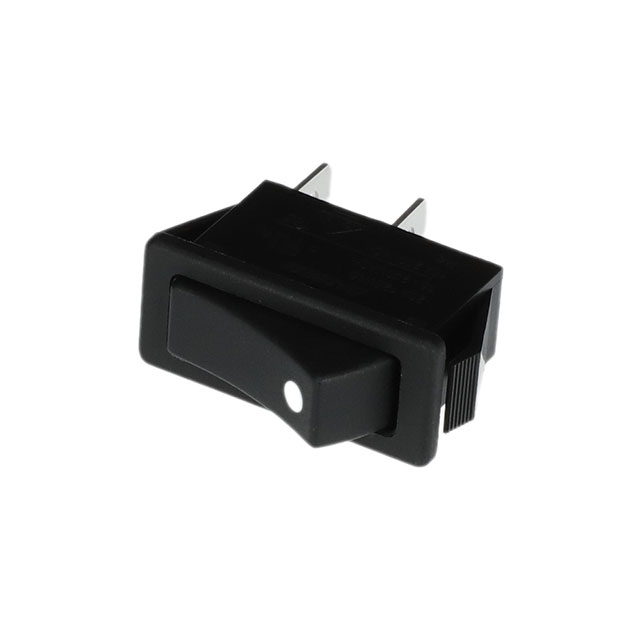

 E-Switch | 30000 Steps | 6000 Cycles | 55 °C | -20 ░C | 20 A | 30.1 mm | 11.1 mm | Quick Connect - 0.250" (6.3mm) | On-Off | 125 V | Panel Mount Snap-In | SPST | Black | Dot | Concave (Curved) | UL |

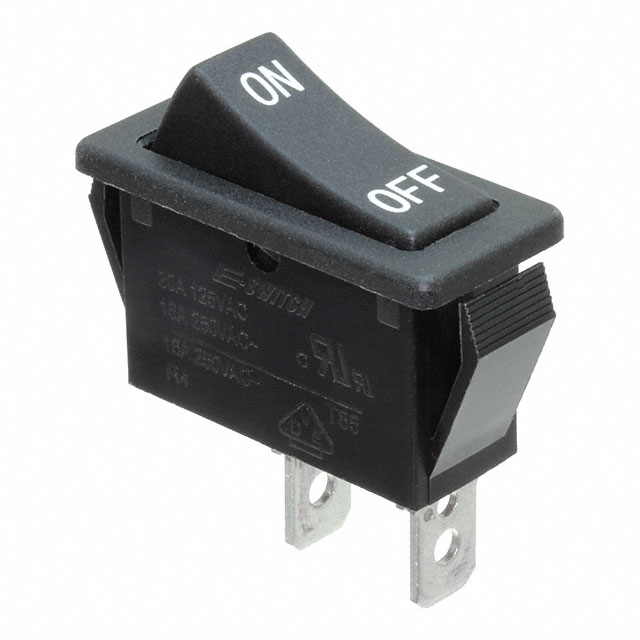

 E-Switch | 30000 Steps | 6000 Cycles | 55 °C | -20 ░C | 20 A | 30.1 mm | 11.1 mm | Quick Connect - 0.250" (6.3mm) | On-Off | 125 V | Panel Mount Snap-In | SPST | Black | ON OFF | Concave (Curved) | UL |
 E-Switch | 30000 Steps | 6000 Cycles | 55 °C | -20 ░C | 20 A | 30.1 mm | 11.1 mm | Quick Connect - 0.250" (6.3mm) | On-Off | 125 V | Panel Mount Snap-In | SPST | Black | No Marking | Concave (Curved) | UL |
