PRPC024 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 48POS 2.54MM

Part	Contact Finish Thickness - Post	Number of Rows [custom]	Contact Type	Contact Material	Number of Positions Loaded	Insulation Color	Termination	Insulation Height	Insulation Height	Fastening Type	Current Rating (Amps)	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Mounting Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish Thickness - Mating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Shape	Number of Rows	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length

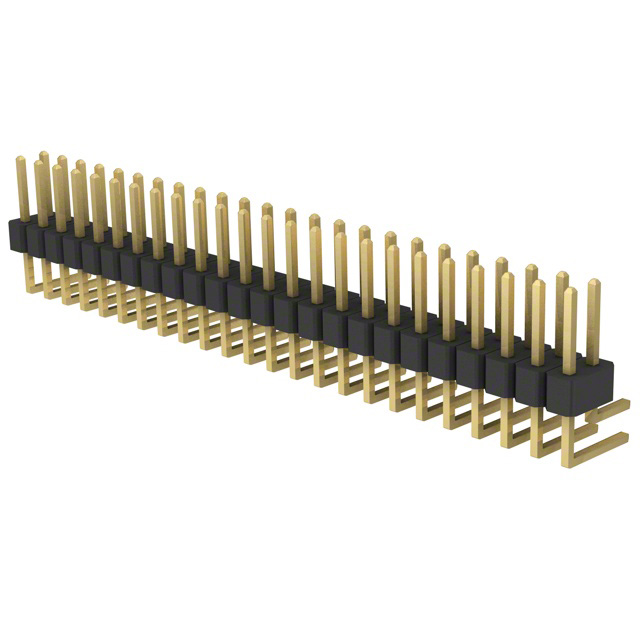

Sullins Connector Solutions PRPC024DBAN-M71RC	Flash	2	Male Pin	Brass	All	Black	Solder	0.197 "	5 mm	Push-Pull	3 A	48	3.05 mm	0.12 in	Gold	Right Angle Through Hole	Gold	0.1 "	2.54 mm	Header Breakaway	Board to Board Cable	-40 C	105 ░C	Unshrouded	Flash	UL94 V-0	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	0.23 in	5.84 mm	Square

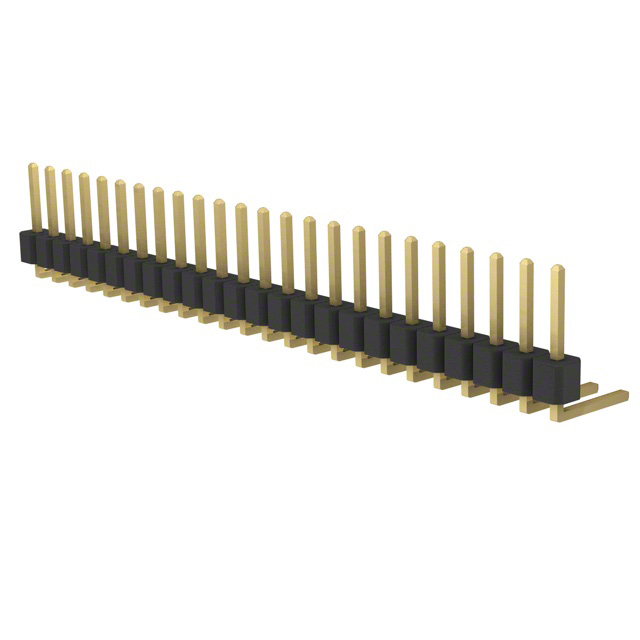

Sullins Connector Solutions PRPC024SBBN-M71RC	Flash		Male Pin	Brass	All	Black	Solder	0.098 "	2.5 mm	Push-Pull	3 A	24	5.58 mm	0.22 in	Gold	Right Angle Through Hole	Gold	0.1 "	2.54 mm	Header Breakaway	Board to Board Cable	-40 C	105 ░C	Unshrouded	Flash	UL94 V-0			Polybutylene Terephthalate (PBT)	0.23 in	5.84 mm	Square	1

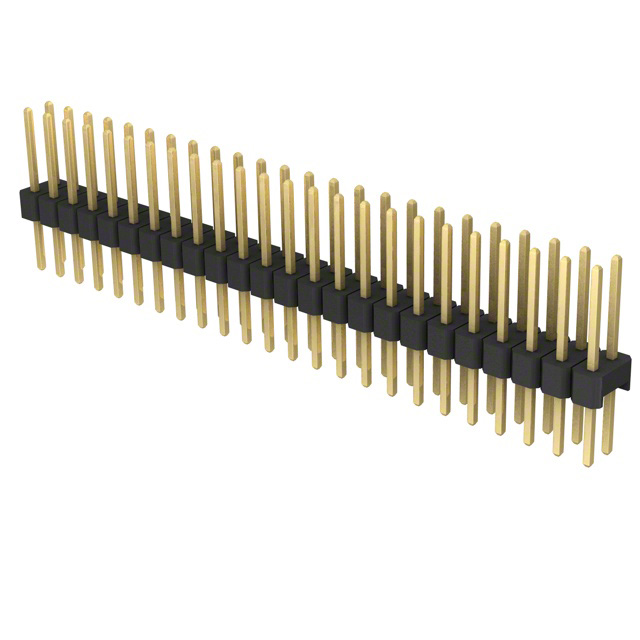

Sullins Connector Solutions PRPC024DFBN-RC	Flash	2	Male Pin	Brass	All	Black	Solder	0.098 "	2.5 mm	Push-Pull	3 A	48	5.58 mm	0.22 in	Gold	Through Hole	Gold	0.1 "	2.54 mm	Header Breakaway	Board to Board Cable	-40 C	105 ░C	Unshrouded	Flash	UL94 V-0	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	0.318 in	8.08 mm	Square		0.637 in	16.17 mm

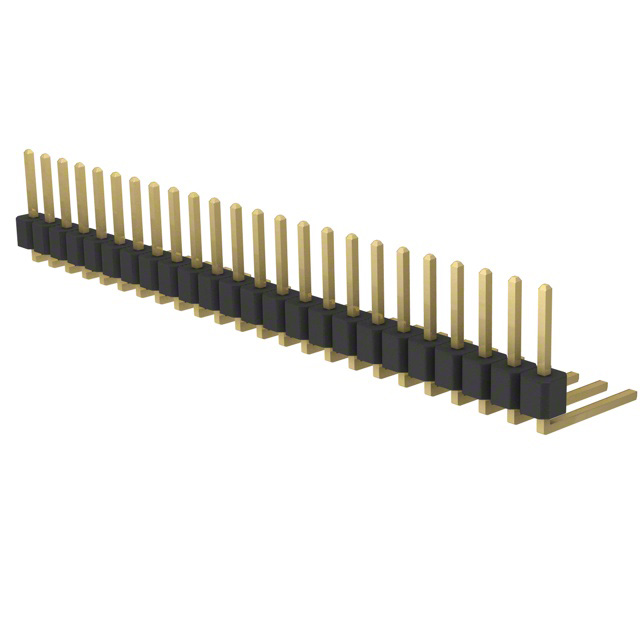

Sullins Connector Solutions PRPC024SBCN-M71RC	Flash		Male Pin	Brass	All	Black	Solder	0.098 "	2.5 mm	Push-Pull	3 A	24	8.13 mm	0.32 in	Gold	Right Angle Through Hole	Gold	0.1 "	2.54 mm	Header Breakaway	Board to Board Cable	-40 C	105 ░C	Unshrouded	Flash	UL94 V-0			Polybutylene Terephthalate (PBT)	0.23 in	5.84 mm	Square	1
Sullins Connector Solutions PRPC024DFAN-RC	Flash	2	Male Pin	Brass	All	Black	Solder	0.098 "	2.5 mm	Push-Pull	3 A	48	3.05 mm	0.12 in	Gold	Through Hole	Gold	0.1 "	2.54 mm	Header Breakaway	Board to Board Cable	-40 C	105 ░C	Unshrouded	Flash	UL94 V-0	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	0.318 in	8.08 mm	Square				13.63 mm	0.537 in
Sullins Connector Solutions PRPC024SAAN-RC	Flash		Male Pin	Brass	All	Black	Solder	0.098 "	2.5 mm	Push-Pull	3 A	24	3.05 mm	0.12 in	Gold	Through Hole	Gold	0.1 "	2.54 mm	Header Breakaway	Board to Board Cable	-40 C	105 ░C	Unshrouded	Flash	UL94 V-0			Polybutylene Terephthalate (PBT)	0.23 in	5.84 mm	Square	1	11.39 mm				0.448 in

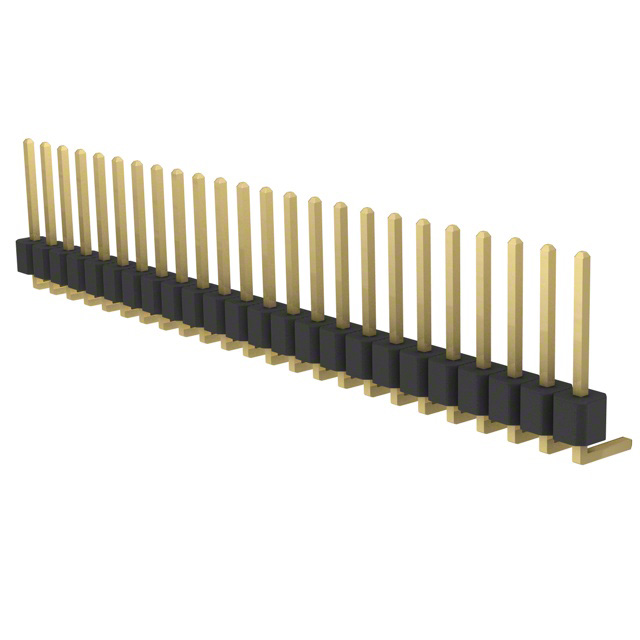

Sullins Connector Solutions PRPC024SGAN-M71RC	Flash		Male Pin	Brass	All	Black	Solder	0.098 "	2.5 mm	Push-Pull	3 A	24	3.05 mm	0.12 in	Gold	Right Angle Through Hole	Gold	0.1 "	2.54 mm	Header Breakaway	Board to Board Cable	-40 C	105 ░C	Unshrouded	Flash	UL94 V-0			Polybutylene Terephthalate (PBT)	0.318 in	8.08 mm	Square	1

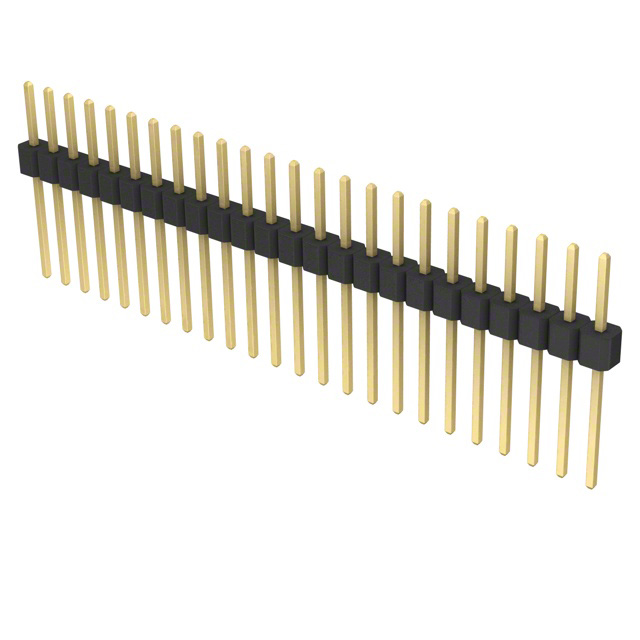

Sullins Connector Solutions PRPC024SADN-RC	Flash		Male Pin	Brass	All	Black	Solder	0.098 "	2.5 mm	Push-Pull	3 A	24	10.67 mm	0.42 in	Gold	Through Hole	Gold	0.1 "	2.54 mm	Header Breakaway	Board to Board Cable	-40 C	105 ░C	Unshrouded	Flash	UL94 V-0			Polybutylene Terephthalate (PBT)	0.23 in	5.84 mm	Square	1	19.01 mm				0.748 in
