25SVPF Series

Manufacturer: Panasonic Electronic Components

Catalog

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 180 ΜF, 25 V, RADIAL CAN - SMD, 0.016 OHM

Part	Ripple Current @ High Frequency	Lifetime @ Temp.	Package / Case	Mounting Type	Tolerance	ESR (Equivalent Series Resistance)	Type	Capacitance	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Height - Seated (Max) [Max]	Height - Seated (Max)	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]

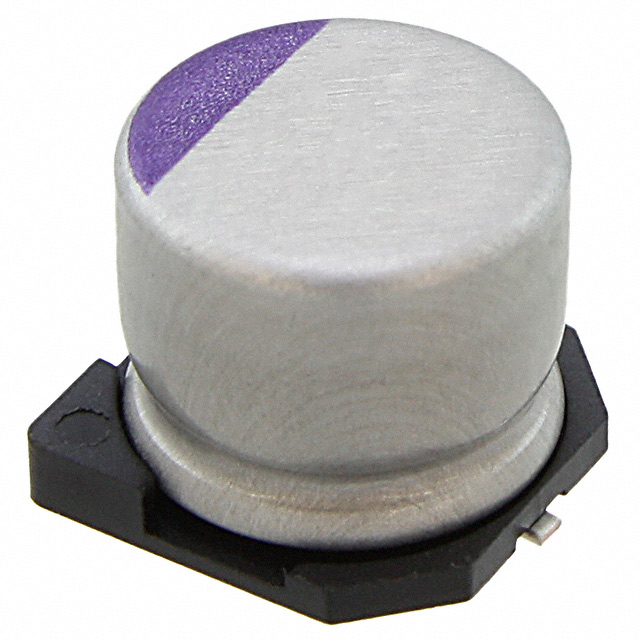

Panasonic Electronic Components 25SVPF180M	4.65 A	5000 Hrs	Radial Can - SMD	Surface Mount	20 %	16 mOhm	Polymer	180 µF	232.5 mA	0.315 in	8 mm	General Purpose	0.472 in	12 mm	25 VDC	8.3 mm	8.3 mm	0.327 in	0.327 in	-55 C	105 ░C
Panasonic Electronic Components 25SVPF100M	3.2 A	5000 Hrs	Radial Can - SMD	Surface Mount	20 %	24 mOhms	Polymer	100 µF	160 mA	0.315 in	8 mm	General Purpose	0.276 in		25 VDC	8.3 mm	8.3 mm	0.327 in	0.327 in	-55 C	105 ░C	7 mm
Panasonic Electronic Components 25SVPF82M	3000 mA	5000 Hrs	Radial Can - SMD	Surface Mount	20 %	28 mOhm	Polymer	0.082 mF	150 mA	0.315 in	8 mm	General Purpose	0.276 in		25 VDC	8.3 mm	8.3 mm	0.327 in	0.327 in	-55 C	105 ░C	7 mm
Panasonic Electronic Components 25SVPF330M		5000 Hrs	Radial Can - SMD	Surface Mount	20 %	14 mOhms	Polymer	330 µF	250 mA	0.394 in	10 mm	General Purpose	0.5 in		25 VDC	10.3 mm	10.3 mm	0.406 "	0.406 in	-55 C	105 ░C	12.7 mm

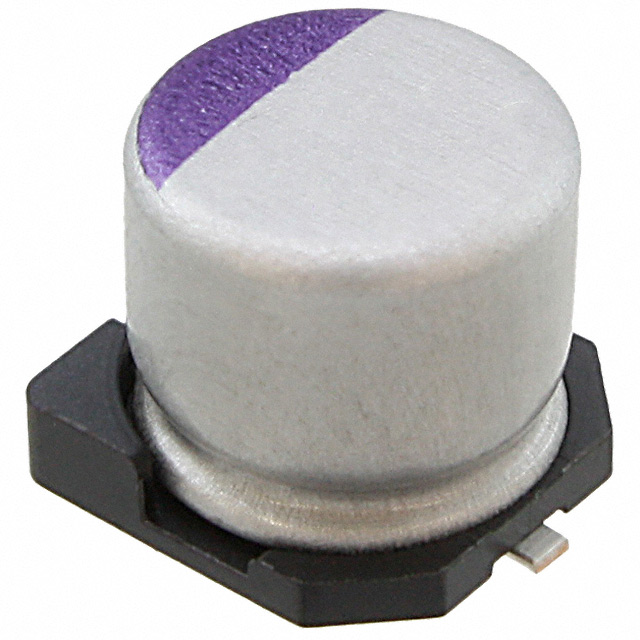

Panasonic Electronic Components 25SVPF47M	2.8 A	5000 Hrs	Radial Can - SMD	Surface Mount	20 %	30 mOhms	Polymer	47 µF	140 mA	0.248 "	6.3 mm	General Purpose	0.236 "	6 mm	25 VDC	6.6 mm	6.6 mm	0.26 in	0.26 in	-55 C	105 ░C
Panasonic Electronic Components 25SVPF56M	2.8 A	5000 Hrs	Radial Can - SMD	Surface Mount	20 %	30 mOhms	Polymer	56 µF	140 mA	0.248 "	6.3 mm	General Purpose	0.236 "	6 mm	25 VDC	6.6 mm	6.6 mm	0.26 in	0.26 in	-55 C	105 ░C
