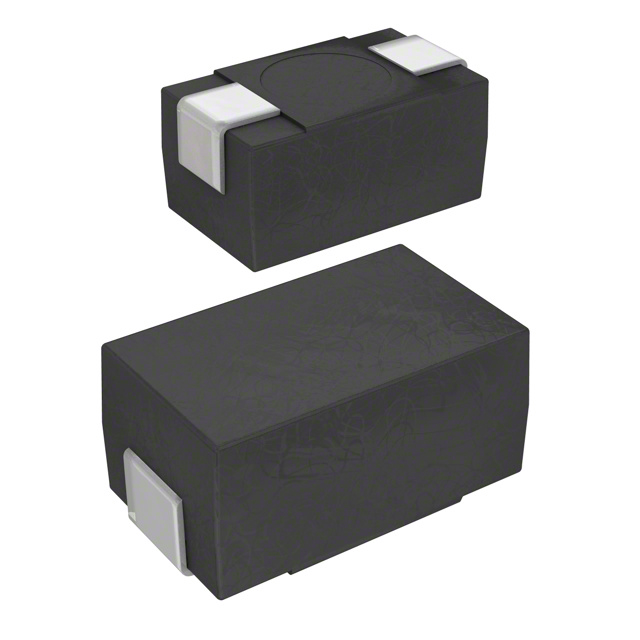

PWR2615 Series

Catalog

RES SMD 3K OHM 1% 1W 2615

Part	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Terminations [custom]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Resistance	Temperature Coefficient	Power (Watts)	Tolerance	Package / Case
Bourns Inc. PWR2615W3001FE	Wirewound	3.6 mm	0.142 "	-55 C	275 °C	2	0.26 in	6.6 mm	3.9 mm	0.154 in	Current Sense Moisture Resistant Pulse Withstanding	3 kOhms	20 ppm/°C	1 W	1 %	2615 J-Lead
Bourns Inc. PWR2615WR150JE	Wirewound	3.6 mm	0.142 "	-55 C	275 °C	2	0.26 in	6.6 mm	3.9 mm	0.154 in	Current Sense Moisture Resistant Pulse Withstanding	0.15 Ohms	150 ppm/°C	1 W	5 %	2615 J-Lead
Bourns Inc. PWR2615WR036J	Wirewound	3.6 mm	0.142 "	-55 C	275 °C	2	0.26 in	6.6 mm	3.9 mm	0.154 in	Current Sense Moisture Resistant Pulse Withstanding	36 mOhms	150 ppm/°C	1 W	5 %	2615 J-Lead
Bourns Inc. PWR2615WR200J	Wirewound	3.6 mm	0.142 "	-55 C	275 °C	2	0.26 in	6.6 mm	3.9 mm	0.154 in	Current Sense Moisture Resistant Pulse Withstanding	200 mOhms	150 ppm/°C	1 W	5 %	2615 J-Lead
Bourns Inc. PWR2615WR680JE	Wirewound	3.6 mm	0.142 "	-55 C	275 °C	2	0.26 in	6.6 mm	3.9 mm	0.154 in	Current Sense Moisture Resistant Pulse Withstanding	680 mOhms	150 ppm/°C	1 W	5 %	2615 J-Lead
Bourns Inc. PWR2615WR050FE	Wirewound	3.6 mm	0.142 "	-55 C	275 °C	2	0.26 in	6.6 mm	3.9 mm	0.154 in	Current Sense Moisture Resistant Pulse Withstanding	0.05 Ohms	150 ppm/°C	1 W	1 %	2615 J-Lead
Bourns Inc. PWR2615W2201JE	Wirewound	3.6 mm	0.142 "	-55 C	275 °C	2	0.26 in	6.6 mm	3.9 mm	0.154 in	Current Sense Moisture Resistant Pulse Withstanding	2200 Ohms	20 ppm/°C	1 W	5 %	2615 J-Lead
Bourns Inc. PWR2615WR027J	Wirewound	3.6 mm	0.142 "	-55 C	275 °C	2	0.26 in	6.6 mm	3.9 mm	0.154 in	Current Sense Moisture Resistant Pulse Withstanding	27 mOhms	150 ppm/°C	1 W	5 %	2615 J-Lead
Bourns Inc. PWR2615WR100J	Wirewound	3.6 mm	0.142 "	-55 C	275 °C	2	0.26 in	6.6 mm	3.9 mm	0.154 in	Current Sense Moisture Resistant Pulse Withstanding	0.1 Ohms	150 ppm/°C	1 W	5 %	2615 J-Lead
Bourns Inc. PWR2615WR030FE	Wirewound	3.6 mm	0.142 "	-55 C	275 °C	2	0.26 in	6.6 mm	3.9 mm	0.154 in	Current Sense Moisture Resistant Pulse Withstanding	0.03 Ohms	150 ppm/°C	1 W	1 %	2615 J-Lead
