122-83 Series

Manufacturer: Preci-Dip

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS

Part	Contact Resistance	Termination Post Length	Termination Post Length	Material Flammability Rating	Current Rating (Amps)	Contact Material - Mating	Contact Finish - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Post	Pitch - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [x]	Termination	Type [custom]	Type [custom]	Type	Housing Material	Features	Contact Material - Post [custom]	Number of Positions or Pins (Grid)	Type	Type

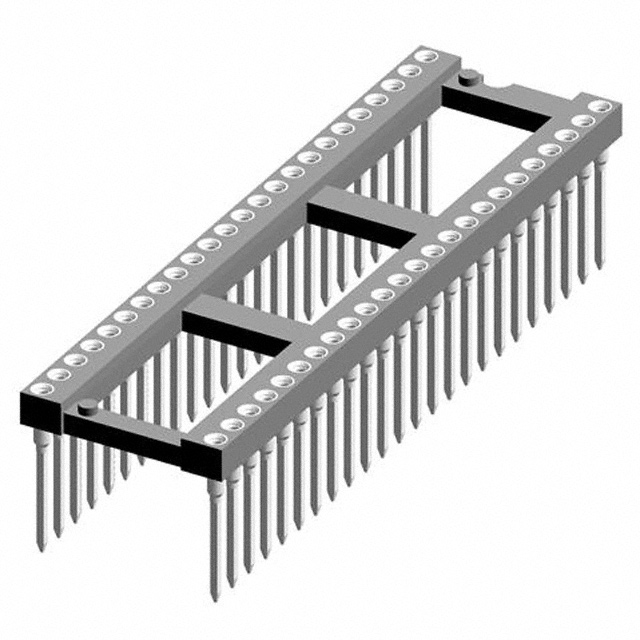

Preci-Dip 122-83-648-41-001101	10 mOhm	9.4 mm	0.37 in	UL94 V-0	1 A	Beryllium Copper	Gold	Through Hole	-55 C	125 °C	0.1 in	2.54 mm	29.5 µin	0.75 µm	Tin	0.1 "	2.54 mm	2	48	24	Wire Wrap	15.24 mm	0.6 in	DIP	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass

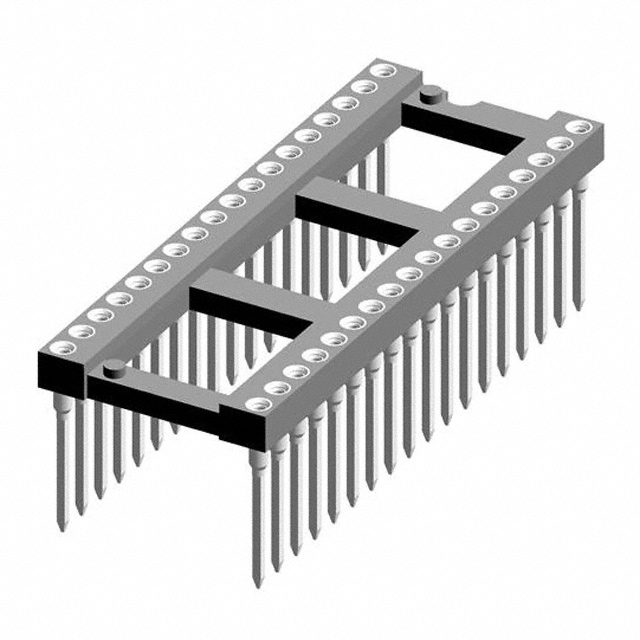

Preci-Dip 122-83-636-41-001101	10 mOhm	9.4 mm	0.37 in	UL94 V-0	1 A	Beryllium Copper	Gold	Through Hole	-55 C	125 °C	0.1 in	2.54 mm	29.5 µin	0.75 µm	Tin	0.1 "	2.54 mm				Wire Wrap	15.24 mm	0.6 in	DIP	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass	36

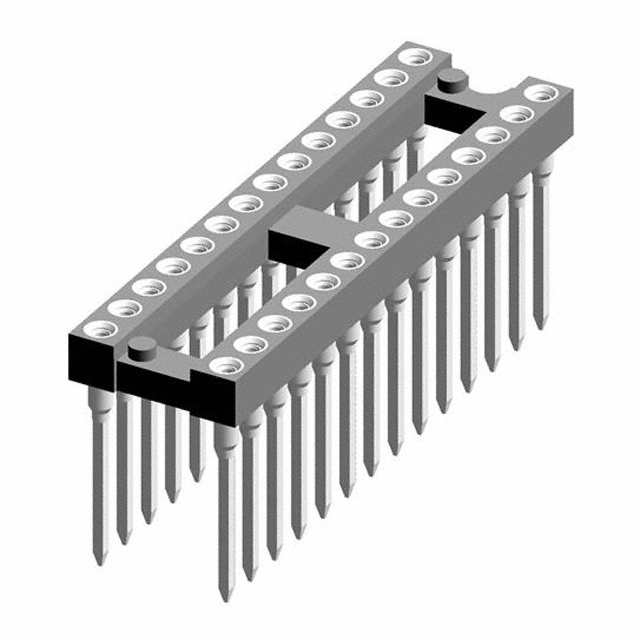

Preci-Dip 122-83-328-41-001101	10 mOhm	9.4 mm	0.37 in	UL94 V-0	1 A	Beryllium Copper	Gold	Through Hole	-55 C	125 °C	0.1 in	2.54 mm	29.5 µin	0.75 µm	Tin	0.1 "	2.54 mm				Wire Wrap			DIP	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass	28	7.62 mm	0.3 in

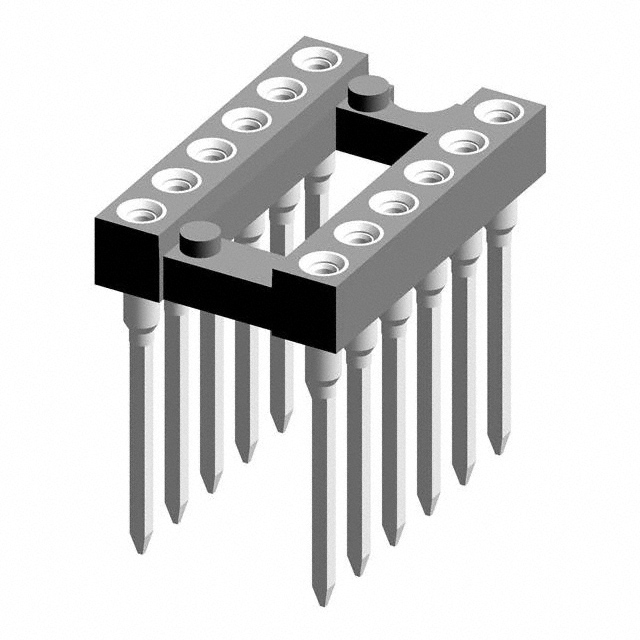

Preci-Dip 122-83-312-41-001101	10 mOhm	9.4 mm	0.37 in	UL94 V-0	1 A	Beryllium Copper	Gold	Through Hole	-55 C	125 °C	0.1 in	2.54 mm	29.5 µin	0.75 µm	Tin	0.1 "	2.54 mm				Wire Wrap			DIP	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass	12	7.62 mm	0.3 in

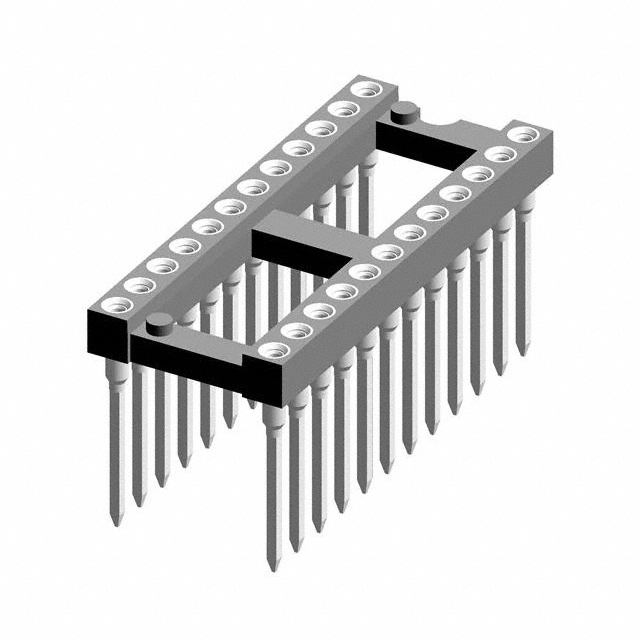

Preci-Dip 122-83-424-41-001101	10 mOhm	9.4 mm	0.37 in	UL94 V-0	1 A	Beryllium Copper	Gold	Through Hole	-55 C	125 °C	0.1 in	2.54 mm	29.5 µin	0.75 µm	Tin	0.1 "	2.54 mm	2		12	Wire Wrap			DIP	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass	24		0.4 in

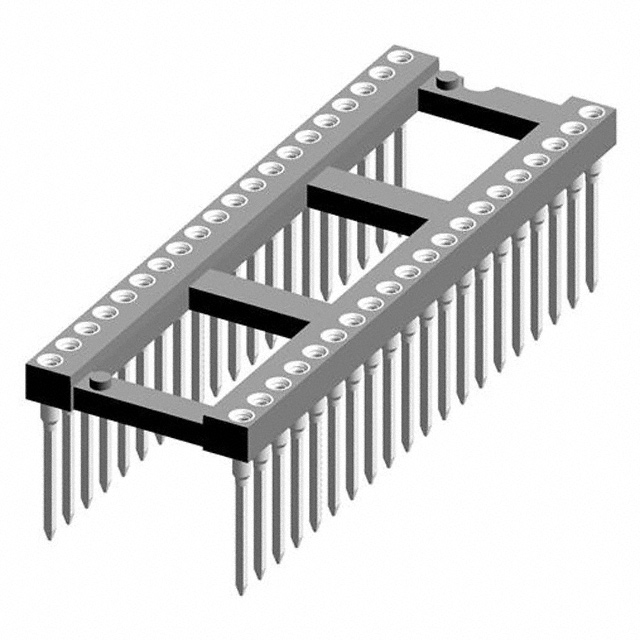

Preci-Dip 122-83-640-41-001101	10 mOhm	9.4 mm	0.37 in	UL94 V-0	1 A	Beryllium Copper	Gold	Through Hole	-55 C	125 °C	0.1 in	2.54 mm	29.5 µin	0.75 µm	Tin	0.1 "	2.54 mm				Wire Wrap	15.24 mm	0.6 in	DIP	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass	40

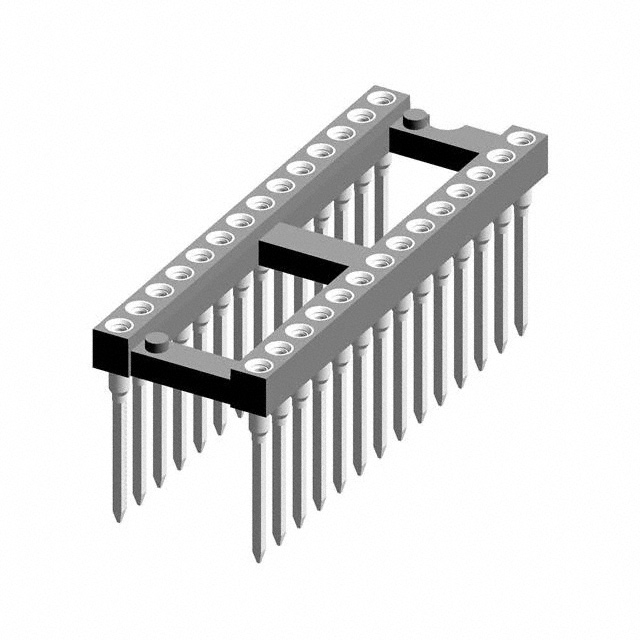

Preci-Dip 122-83-428-41-001101	10 mOhm	9.4 mm	0.37 in	UL94 V-0	1 A	Beryllium Copper	Gold	Through Hole	-55 C	125 °C	0.1 in	2.54 mm	29.5 µin	0.75 µm	Tin	0.1 "	2.54 mm				Wire Wrap			DIP	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass	28		0.4 in
Preci-Dip 122-83-628-41-001101	10 mOhm	9.4 mm	0.37 in	UL94 V-0	1 A	Beryllium Copper	Gold	Through Hole	-55 C	125 °C	0.1 in	2.54 mm	29.5 µin	0.75 µm	Tin	0.1 "	2.54 mm				Wire Wrap	15.24 mm	0.6 in	DIP	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass	28

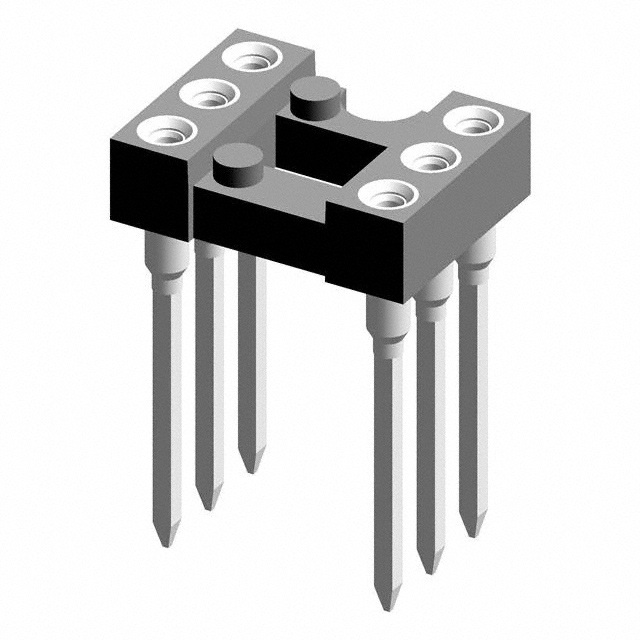

Preci-Dip 122-83-306-41-001101	10 mOhm	9.4 mm	0.37 in	UL94 V-0	1 A	Beryllium Copper	Gold	Through Hole	-55 C	125 °C	0.1 in	2.54 mm	29.5 µin	0.75 µm	Tin	0.1 "	2.54 mm	3 positions or pins		2	Wire Wrap			DIP	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass	6	7.62 mm	0.3 in

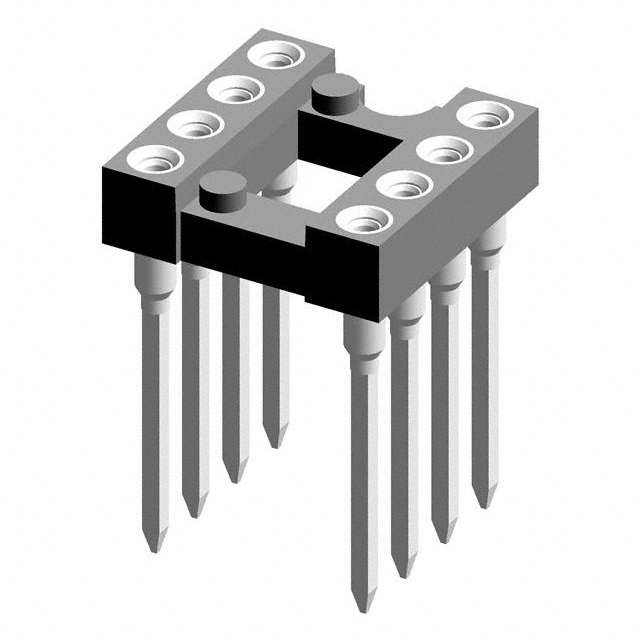

Preci-Dip 122-83-308-41-001101	10 mOhm	9.4 mm	0.37 in	UL94 V-0	1 A	Beryllium Copper	Gold	Through Hole	-55 C	125 °C	0.1 in	2.54 mm	29.5 µin	0.75 µm	Tin	0.1 "	2.54 mm	4		2	Wire Wrap			DIP	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass	8	7.62 mm	0.3 in
