32945 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

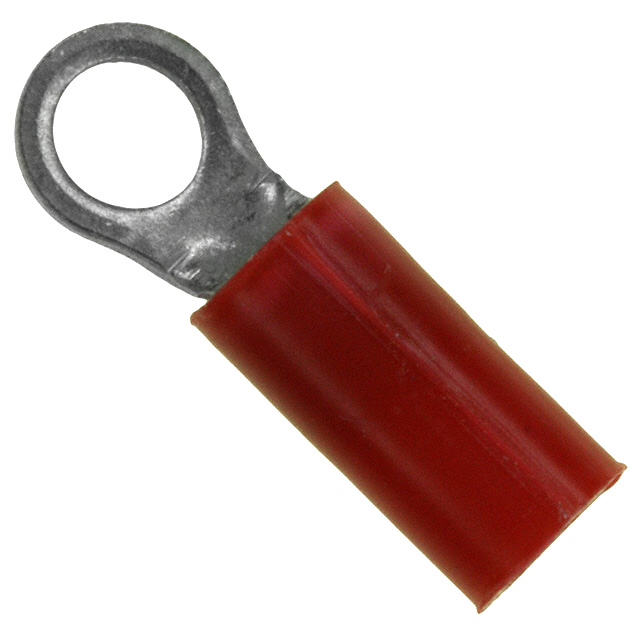

CONN RING CIRC 16-22AWG #6 CRIMP
| Part | Insulation | Color | Length - Overall [x] | Length - Overall [x] | Thickness | Thickness | Termination | Contact Material | Material - Insulation | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Terminal Type | Mounting Type | Stud/Tab Size | Features | Width - Outer Edges [x] | Width - Outer Edges [x] | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Insulated | Red | 17.37 mm | 0.684 in | 0.031 in | 0.79 mm | Crimp | Copper | Poly-Vinyl Chloride (PVC) | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | Circular | Free Hanging (In-Line) | 6 Stud | Serrated Termination | 5.54 mm | 0.218 in | Tin | 22 AWG | 16 AWG |
