DV10 Series

Catalog

QUICK DISCONNECT TERMINAL, REEL SMART SERIES, FEMALE QUICK DISCONNECT, 6.3MM X 0.8MM

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tab Thickness	Tab Thickness	Gender	Length - Overall [x]	Length - Overall [x]	Color	Insulation	Terminal Type	Mounting Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Features	Tab Width [x]	Tab Width [x]	Contact Material

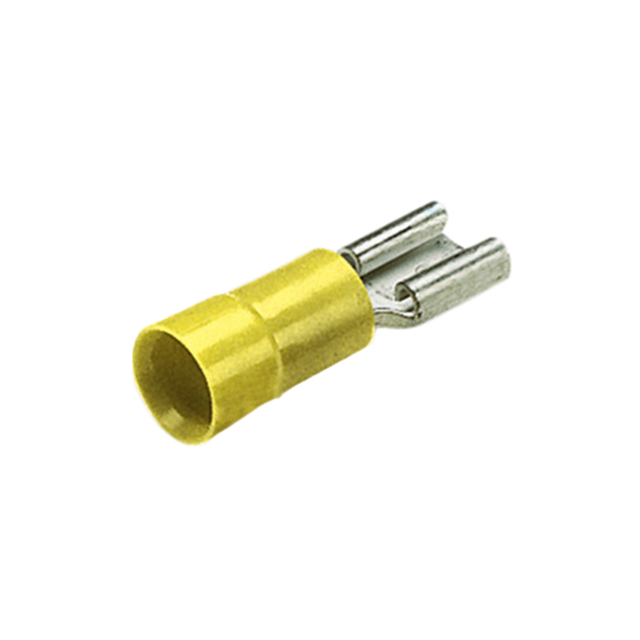

Panduit Corp DV10-250C-2K	5.84 mm	0.23 in	0.81 mm	0.032 in	Female	0.95 "	24.13 mm	Yellow	Non-Mating End Insulated	Standard	Free Hanging (In-Line)	Tin	10 AWG	12 AWG	Crimp	Serrated Termination	6.35 mm	0.25 in	Brass
Panduit Corp DV10-250-2K	5.84 mm	0.23 in	0.81 mm	0.032 in	Female	0.95 "	24.13 mm	Yellow	Non-Mating End Insulated	Standard	Free Hanging (In-Line)	Tin	10 AWG	12 AWG	Crimp	Butted Seam Serrated Termination	6.35 mm	0.25 in	Brass

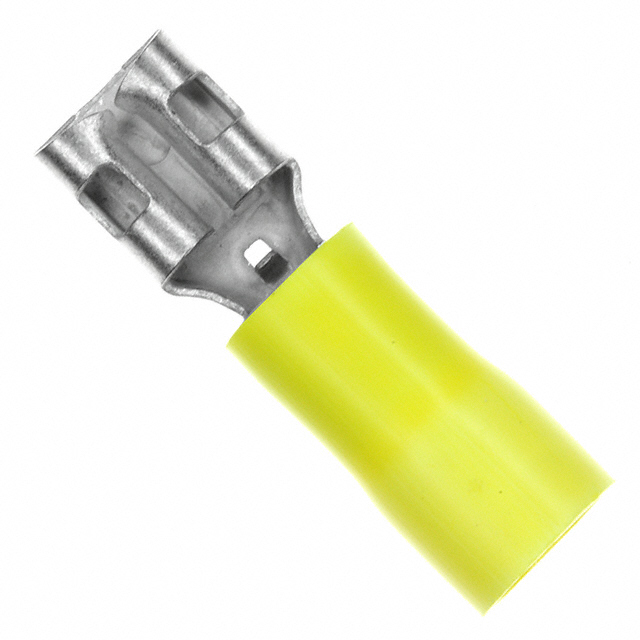

Panduit Corp DV10-250-L	5.82 mm	0.229 in	0.81 mm	0.032 in	Female	1.03 in	26.16 mm	Yellow	Non-Mating End Insulated	Standard	Free Hanging (In-Line)	Tin	10 AWG	12 AWG	Crimp		6.35 mm	0.25 in	Brass
