329083 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

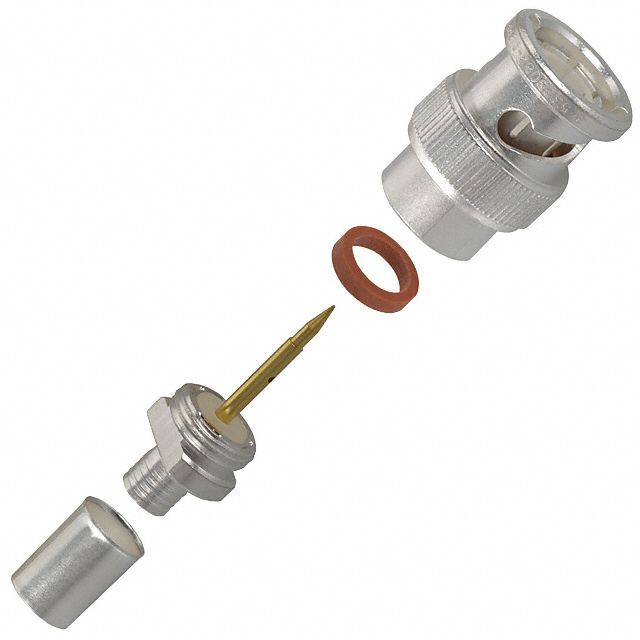

CONN BNC PLUG STR 50 OHM PUSH
| Part | Mating Cycles | Number of Ports | Mounting Type | Voltage Rating | Dielectric Material | Connector Style | Center Contact Material | Contact Termination | Housing Color | Shield Termination | Impedance | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Cable Group | Connector Type | Body Material | Frequency - Max [Max] | Center Contact Plating | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 500 | 1 | Free Hanging (In-Line) | 500 V | Polypropylene (PP) | BNC | Brass | Push On | Silver | Crimp | 50 Ohms | 1 Connector 1 Contact 1 Ferrule 1 Gasket | 85 °C | -55 °C | Silver | 124 140 210 59A 59B 62 62A 62B RG-59 | Male Pin Plug | Brass | 2.5 GHz | Gold | Bayonet Lock |
