396-016 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 16POS 0.125

...

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Features	Mounting Type	Color	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Number of Positions/Bay/Row	Flange Feature	Contact Finish	Card Type	Read Out	Number of Rows [custom]	Pitch	Pitch	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 396-016-560-858	Polyester Thermoplastic	2	Cantilever	Female	0.25 Ám	10 Áin	-40 C	105 ░C	16	Solder	Card Extender Card Guides	Board Edge Straddle Mount	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	8	4-40 Threaded Insert Top Mount Opening	Gold	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in

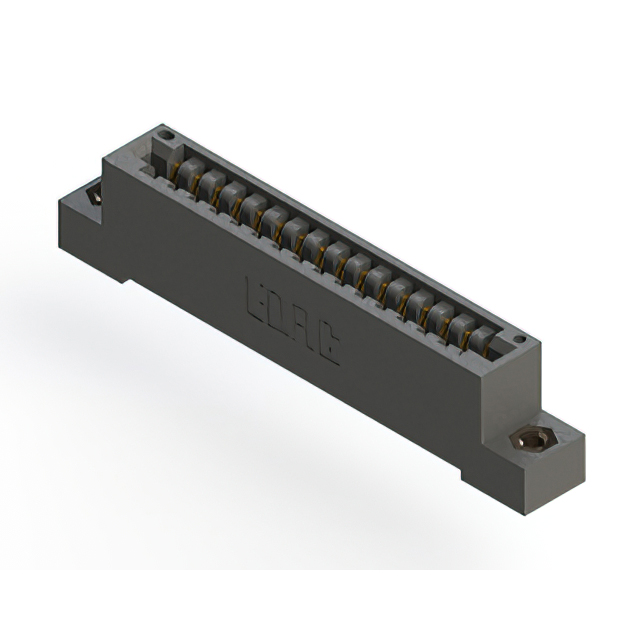

EDAC Inc. 396-016-521-108	Polyester Thermoplastic		Cantilever	Female	0.25 Ám	10 Áin	-40 C	105 ░C	16	Solder		Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	16	4-40 Flush Mount Threaded Insert Top Opening	Gold	Non Specified - Single Edge	Single		3.18 mm	0.125 in	1	1

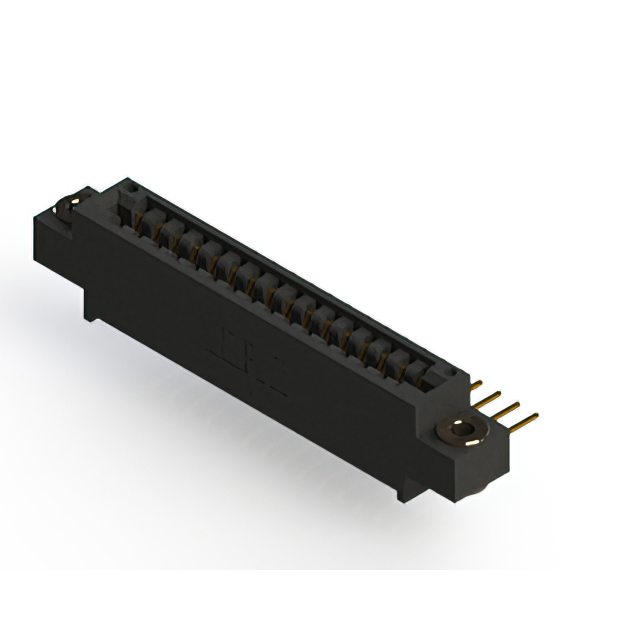

EDAC Inc. 396-016-558-603	Polyester Thermoplastic		Cantilever	Female	0.25 Ám	10 Áin	-40 C	105 ░C	16	Solder Wire Wrap		Right Angle Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	16	Floating Bobbin Top Mount Opening	Gold	Non Specified - Single Edge	Single		3.18 mm	0.125 in	1	1	0.116 "	2.95 mm

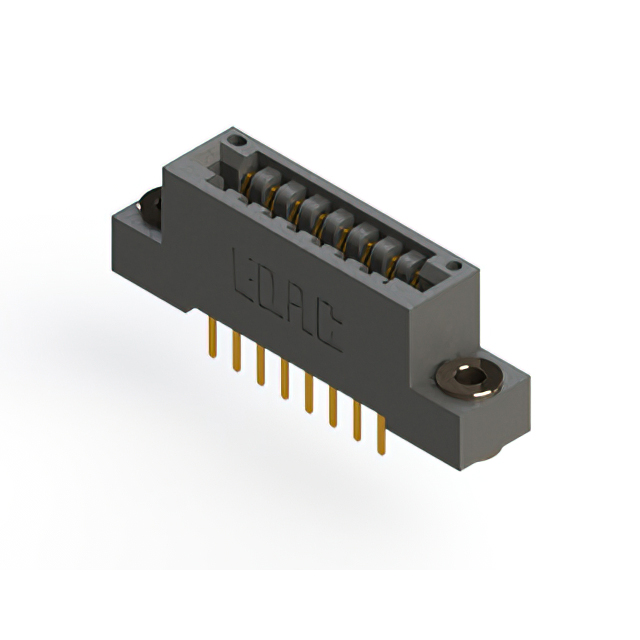

EDAC Inc. 396-016-520-203	Polyester Thermoplastic	2	Cantilever	Female	0.25 Ám	10 Áin	-40 C	105 ░C	16	Solder		Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	8	Floating Bobbin Flush Mount	Gold	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in			0.116 "	2.95 mm

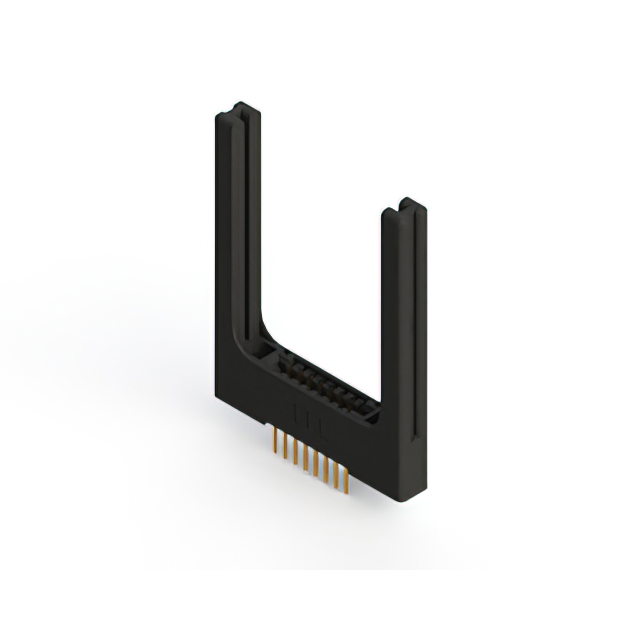

EDAC Inc. 396-016-522-258	Polyester Thermoplastic	2	Cantilever	Female	0.25 Ám	10 Áin	-40 C	105 ░C	16	Solder	Card Guides	Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	8	4-40 Flush Mount Threaded Insert Top Opening	Gold	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in

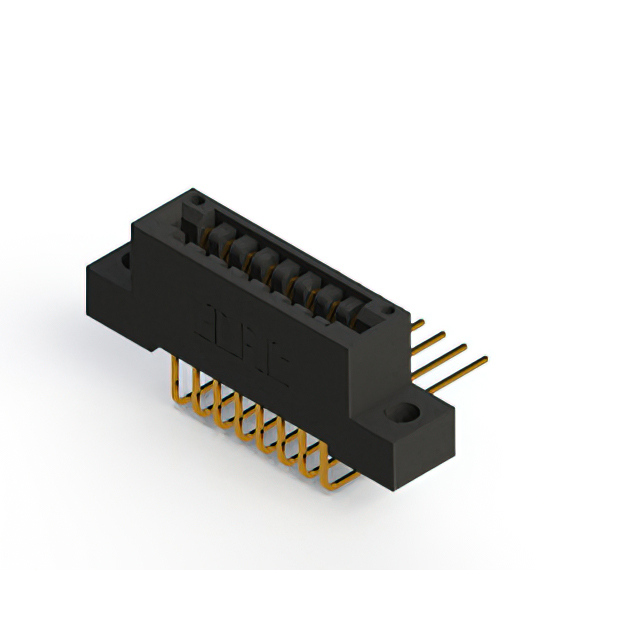

EDAC Inc. 396-016-558-204	Polyester Thermoplastic	2	Cantilever	Female	0.25 Ám	10 Áin	-40 C	105 ░C	16	Solder Wire Wrap		Right Angle Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	8	Flush Mount Top Opening Unthreaded	Gold	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in			0.156 "	3.96 mm
EDAC Inc. 396-016-526-858	Polyester Thermoplastic	2	Cantilever	Female	0.25 Ám	10 Áin	-40 C	105 ░C	16	Solder	Card Guides	Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	8	4-40 Threaded Insert Top Mount Opening	Gold	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in

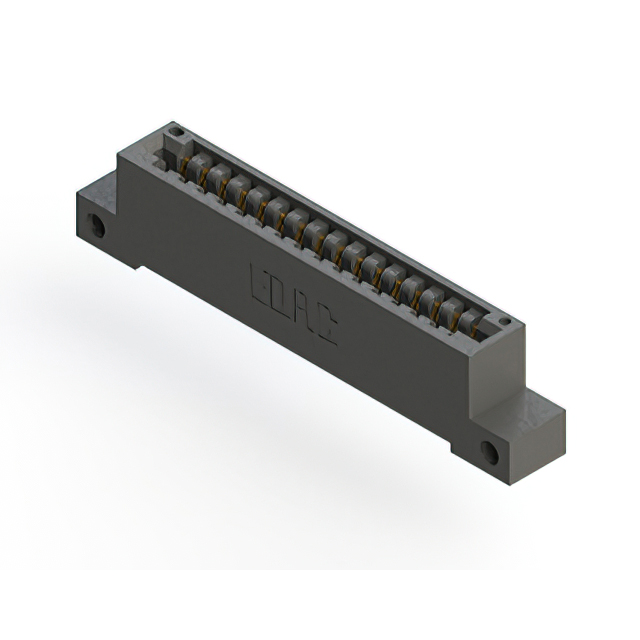

EDAC Inc. 396-016-520-112	Polyester Thermoplastic		Cantilever	Female	0.25 Ám	10 Áin	-40 C	105 ░C	16	Solder		Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	16	Flush Mount Side Opening Unthreaded	Gold	Non Specified - Single Edge	Single		3.18 mm	0.125 in	1	1	0.128 "	3.25 mm
EDAC Inc. 396-016-520-678	Polyester Thermoplastic		Cantilever	Female	0.25 Ám	10 Áin	-40 C	105 ░C	16	Solder		Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	16	4-40 Threaded Insert Top Mount Opening	Gold	Non Specified - Single Edge	Single		3.18 mm	0.125 in	1	1
EDAC Inc. 396-016-559-658	Polyester Thermoplastic		Cantilever	Female	0.25 Ám	10 Áin	-40 C	105 ░C	16	Solder Wire Wrap	Card Guides	Right Angle Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	16	4-40 Threaded Insert Top Mount Opening	Gold	Non Specified - Single Edge	Single		3.18 mm	0.125 in	1	1
