325-045 Series
Manufacturer: EDAC Inc.
Beta
⌘K

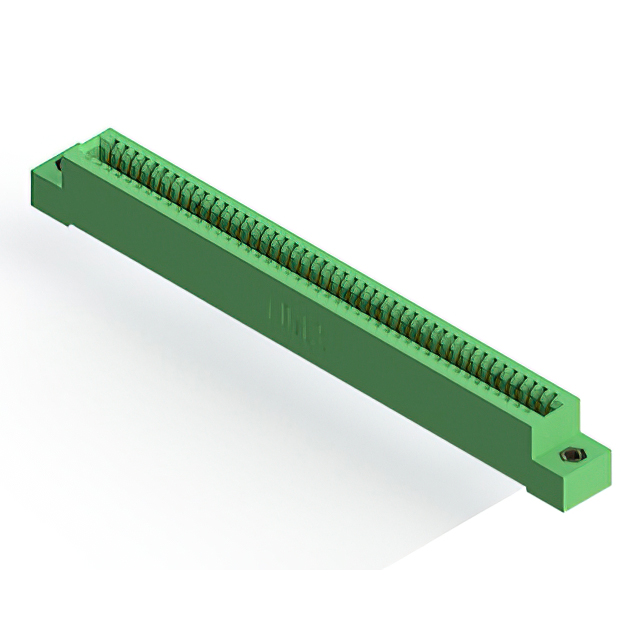

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 45 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Contact Finish | Termination | Color | Number of Positions | Card Type | Contact Type | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Number of Rows | Mounting Type | Card Thickness | Card Thickness | Pitch | Pitch | Read Out | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Wire Wrap | Green | 45 | Non Specified - Single Edge | Cantilever | 45 | -65 ░C | 125 °C | Female | 1 | Through Hole | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Single | Copper Alloy | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Solder | Green | 45 | Non Specified - Single Edge | Cantilever | 45 | -65 ░C | 125 °C | Female | 1 | Through Hole | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Single | Copper Alloy | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Solder | Green | 45 | Non Specified - Single Edge | Cantilever | 45 | -65 ░C | 125 °C | Female | 1 | Through Hole | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Single | Copper Alloy | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Solder | Green | 45 | Non Specified - Single Edge | Cantilever | 45 | -65 ░C | 125 °C | Female | 1 | Through Hole | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Single | Copper Alloy | 0.25 Ám | 10 Áin |
