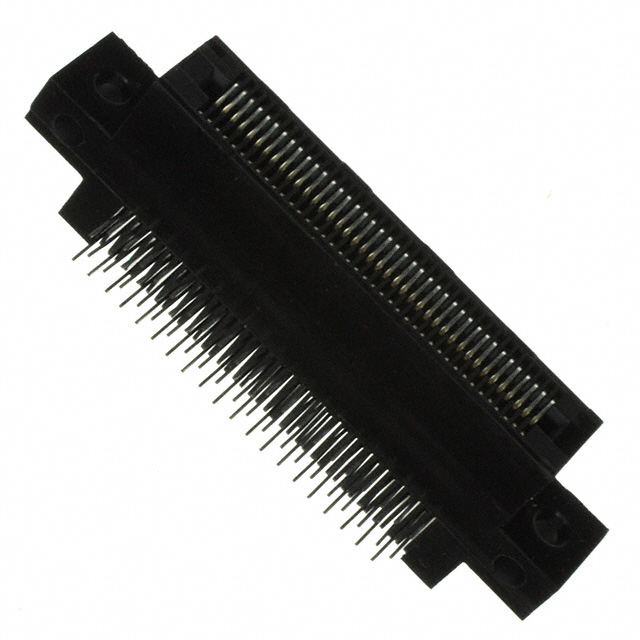

RZE40 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 80POS 0.039
| Part | Material - Insulation | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Number of Positions/Bay/Row [custom] | Contact Material | Contact Type | Mounting Type | Number of Rows [custom] | Contact Finish | Read Out | Pitch | Pitch | Color | Contact Finish Thickness | Contact Finish Thickness | Gender | Card Thickness | Card Thickness | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Solder Staggered | -65 ░C | 125 °C | 80 | 40 | Phosphor Bronze | Hairpin Bellows | Through Hole | 2 | Gold | Dual | 1 mm | 0.039 in | Black | 0.25 Ám | 10 Áin | Female | 1.57 mm | 0.062 in | Non Specified - Dual Edge | |||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Solder Staggered | -65 ░C | 125 °C | 80 | 40 | Phosphor Bronze | Hairpin Bellows | Right Angle Through Hole | 2 | Gold | Dual | 1 mm | 0.039 in | Black | 0.25 Ám | 10 Áin | Female | 1.57 mm | 0.062 in | Non Specified - Dual Edge | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm |
