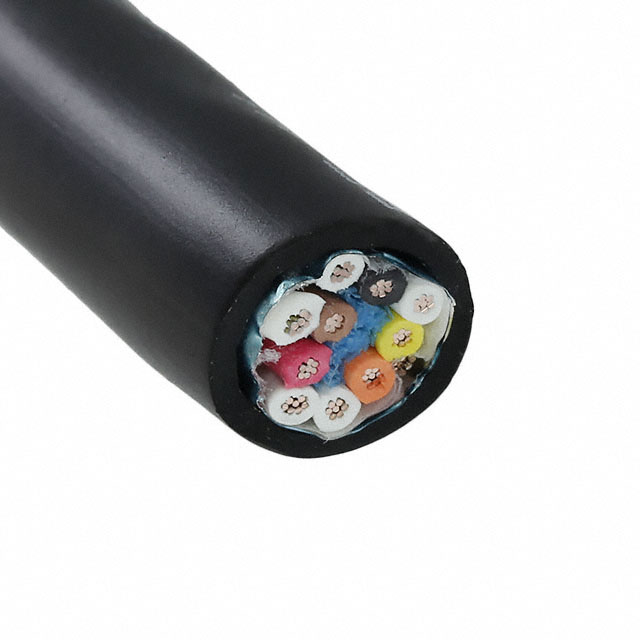

45375 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 10COND 18AWG 1000'
| Part | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Ratings | Cable Type | Jacket Color | Features | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Length | Length | Voltage | Number of Conductors | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 0.47 in | 11.94 mm | 100 % | ISO 10993 | Multi-Pair | Black | Biological Compatibility Drain Wire Rip Cord | Foil | -50 °C | 125 °C | 18 AWG | 1.397 mm | 0.055 in | Thermoplastic Elastomer (TPE) | 16 | 30 AWG | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m | 300 V | 10 | Copper Tinned |
