09100022 Series

Manufacturer: HARTING

Catalog

1A 2+PE MALE SCREW INSERT WITH S

Part	Housing Material	Contact Finish	Color	Material Flammability Rating	Contact Material	Current Rating (Amps)	Gender	Termination Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Size	Number of Positions

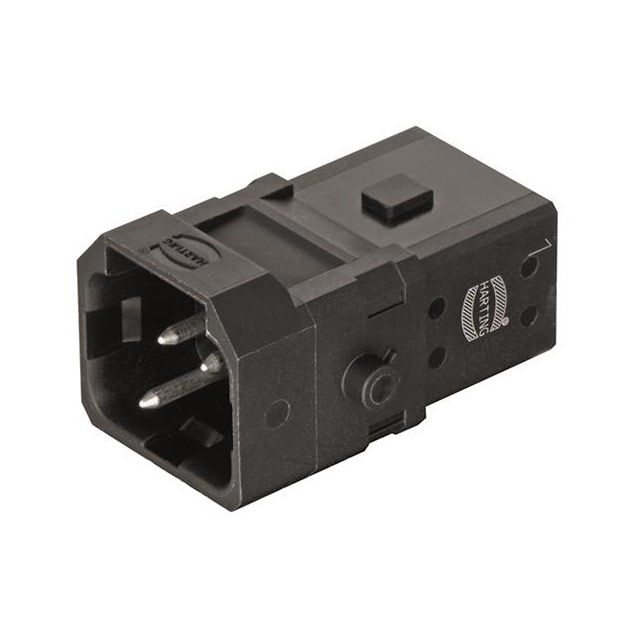

HARTING 09100022600	Polyamide (PA) Nylon	Silver	Black	UL94 V-0	Copper Alloy	10 A	Male	Screw	Insert	-30 ░C	90 °C	400 V	1A	2+Ground

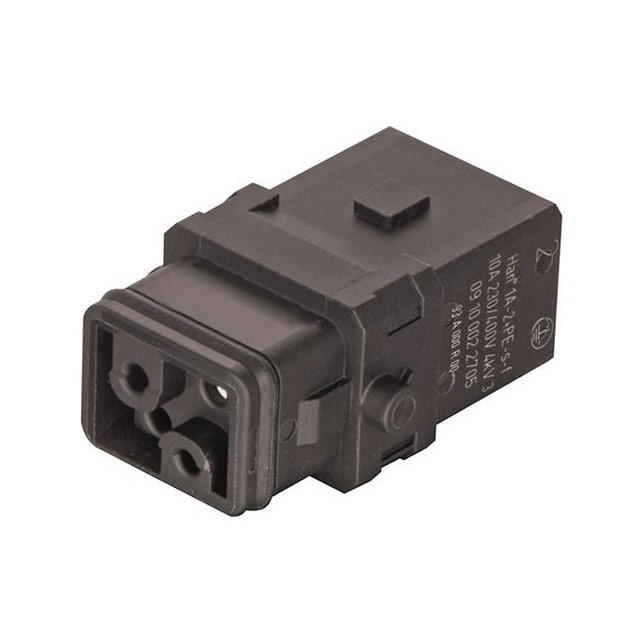

HARTING 09100022705	Polyamide (PA) Nylon	Silver	Black	UL94 V-0	Copper Alloy	10 A	Female	Screw	Insert	-30 ░C	90 °C	400 V	1A	2+Ground
HARTING 09100022606	Polyamide (PA) Nylon	Silver	Black	UL94 V-0	Copper Alloy	10 A	Male	Screw	Insert	-30 ░C	90 °C	400 V	1A	2+Ground

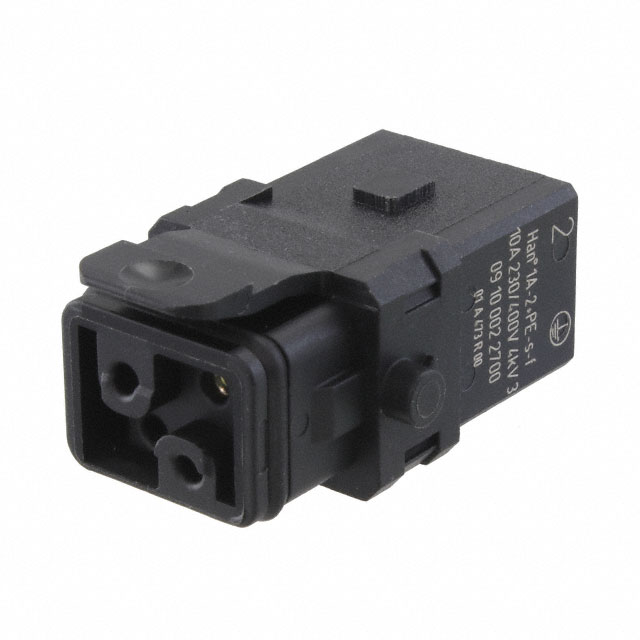

HARTING 09100022700	Polyamide (PA) Nylon	Silver	Black	UL94 V-0	Copper Alloy	10 A	Female	Screw	Insert	-30 ░C	90 °C	400 V	1A	2+Ground

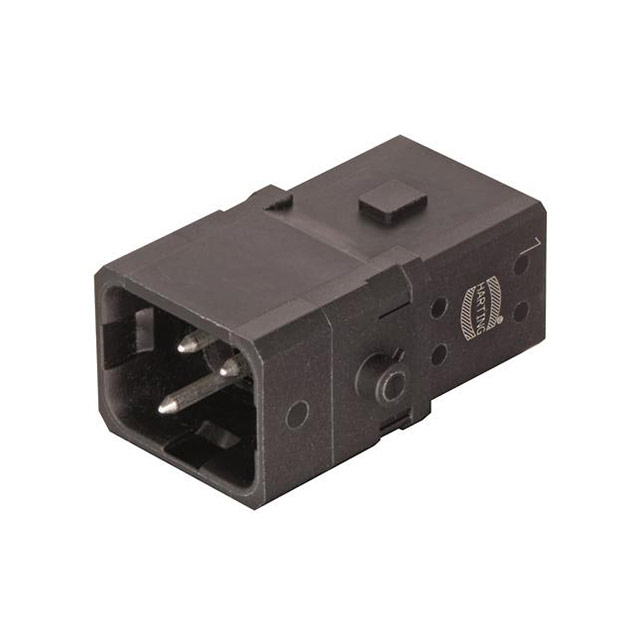

HARTING 09100022605	Polyamide (PA) Nylon	Silver	Black	UL94 V-0	Copper Alloy	10 A	Male	Screw	Insert	-30 ░C	90 °C	400 V	1A	2+Ground
