1743218 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

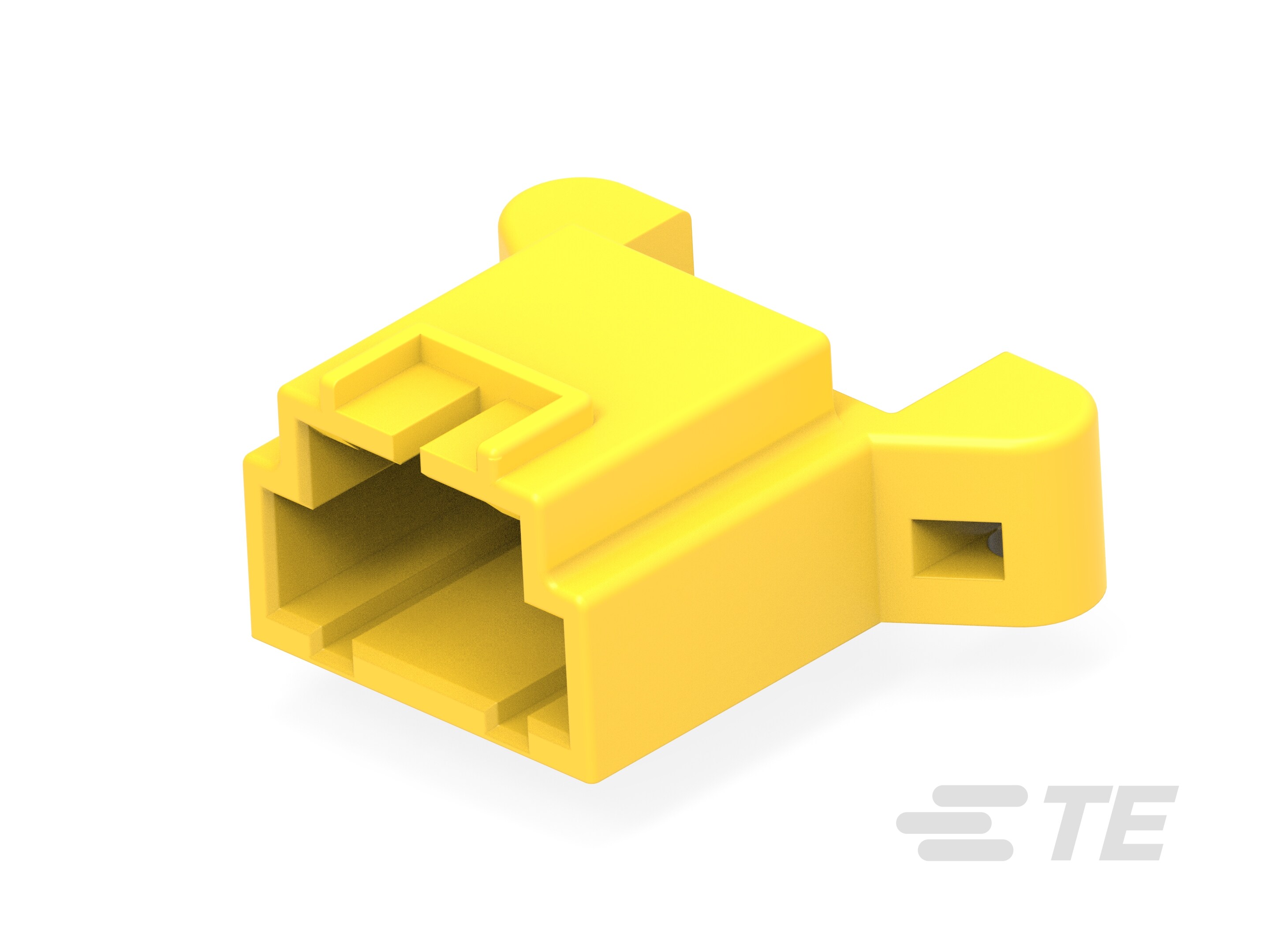

4POS MQS .63 HEADER 90DEG
| Part | Contact Length - Post | Contact Length - Post | Contact Material | Number of Rows | Style | Contact Finish - Post | Mounting Type | Number of Positions Loaded | Insulation Color | Shrouding | Fastening Type | Insulation Height | Insulation Height | Number of Positions | Termination | Contact Length - Mating | Contact Length - Mating | Contact Type | Pitch - Mating | Pitch - Mating | Contact Shape | Insulation Material | Connector Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.111 in | 2.82 mm | Phosphor Bronze | 1 | Board to Cable/Wire | Tin | Through Hole Right Angle | All | Yellow | Shrouded - 4 Wall | Latch Holder | 0.425 in | 10.8 mm | 4 | Solder | 6.7 mm | 0.264 in | Male Pin | 0.1 in | 2.54 mm | Square | Polybutylene Terephthalate (PBT) Glass Filled | Header | Mounting Flange |
