VESD05 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

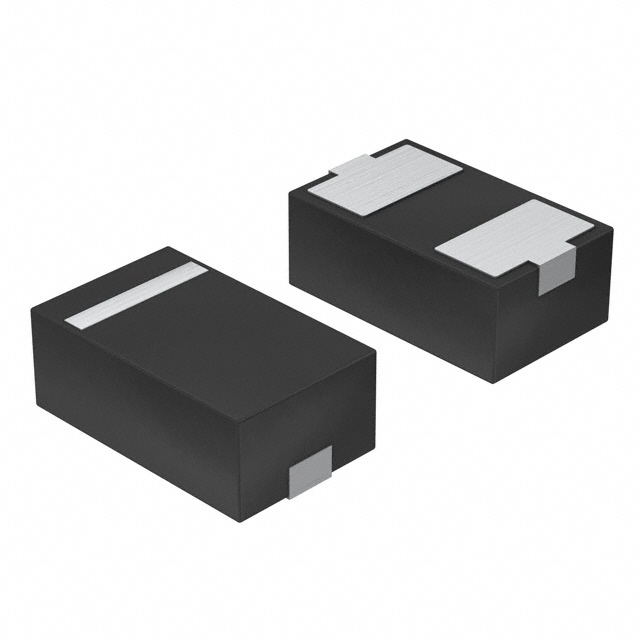

TVS DIODE 5VWM 20VC SOD523
| Part | Capacitance @ Frequency | Mounting Type | Current - Peak Pulse (10/1000µs) | Type | Voltage - Reverse Standoff (Typ) | Applications | Power - Peak Pulse | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Breakdown (Min) [Min] | Power Line Protection | Unidirectional Channels [custom] | Package / Case | Voltage - Clamping (Max) @ Ipp [Max] | Supplier Device Package | Voltage - Reverse Standoff (Typ) [Min] | Unidirectional Channels | Grade | Qualification | Bidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 55 pF | Surface Mount | 6 A | Zener | 5 V | General Purpose | 120 W | -40 C | 125 °C | 6.5 V | 1 | SC-79 SOD-523 | 20 V | SOD-523 | ||||||
Vishay General Semiconductor - Diodes Division | 130 pF | Surface Mount | 16 A | Zener | 5 V | General Purpose | 192 W | -40 C | 125 °C | 6 V | 1 | SC-79 SOD-523 | 12 V | SOD-523 | ||||||
 Vishay General Semiconductor - Diodes Division | 1 MHz 19 pF | Surface Mount | 3 A | Zener | 5 V | General Purpose | 33 W | -40 C | 125 °C | 6 V | 1 | SOD-882 | 11 V | LLP1006-2L | ||||||
Vishay General Semiconductor - Diodes Division | 1 MHz 19 pF | Surface Mount | 3 A | Zener | 5 V | General Purpose | 33 W | -40 C | 125 °C | 6 V | 1 | SC-79 SOD-523 | 11 V | SOD-523 | ||||||
 Vishay General Semiconductor - Diodes Division | 67 pF | Surface Mount | 8.7 A | Zener | 5 V | General Purpose | 100 W | -55 °C | 150 °C | 7.1 V | 1 | 0402 (1006 Metric) | DFN1006-2A | |||||||
 Vishay General Semiconductor - Diodes Division | 10 pF | Surface Mount | 2.5 A | Zener | General Purpose | 33 W | -40 C | 125 °C | 6 V | 8-UFDFN Exposed Pad | 13 V | LLP1713-9L | 5 V | 8 | ||||||
Vishay General Semiconductor - Diodes Division | 1 MHz 23 pF | Surface Mount | 3.5 A | Zener | 5 V | 40 W | -55 °C | 150 °C | 6 V | 1 | SC-79 SOD-523 | 9.5 V | SOD-523 | Automotive | AEC-Q101 | |||||
 Vishay General Semiconductor - Diodes Division | 75 pF | Surface Mount | 10 A | Zener | 5 V | General Purpose | 120 W | -55 °C | 150 °C | 6 V | 4-UFBGA FCBGA | 12 V | 1005 FlipChip | 1 | ||||||
Vishay General Semiconductor - Diodes Division | 1 MHz 20 pF | Surface Mount | 4 A | Zener | 5 V | General Purpose | 52 W | -40 C | 125 °C | 6 V | 8-UFDFN Exposed Pad | 13 V | LLP1713-9L | 8 | ||||||
Vishay General Semiconductor - Diodes Division | 130 pF | Surface Mount | 16 A | Zener | 5 V | 192 W | -55 °C | 150 °C | 6 V | 1 | SC-79 SOD-523 | 12 V | SOD-523 | Automotive | AEC-Q101 |
