150-31 Series

Catalog

CBL TIE LOCKING GRAY 50LB 7.87"

Part	Tensile Strength	Tensile Strength	Features	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Approximate	Mounting Type	Color	Width [x]	Width [x]	Material	Wire/Cable Tie Type	Width [y]	Width [y]

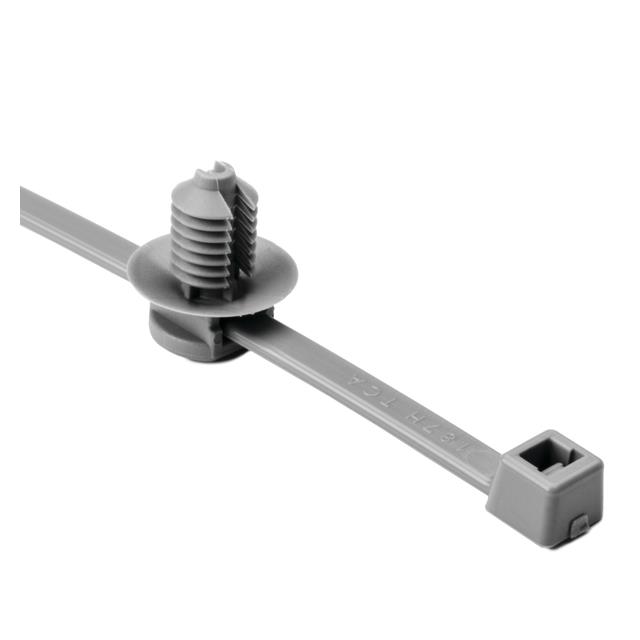

HELLERMANNTYTON 150-31098	22.68 kg	50 lbs	High Temperature	200 mm	7.87 "	0.656 ft	1.77 in	45 mm	7.75 "	Fir Tree Push Mount	Gray	4.6 mm	0.181 in	Polyamide (PA66) Nylon 6/6	Locking Standard

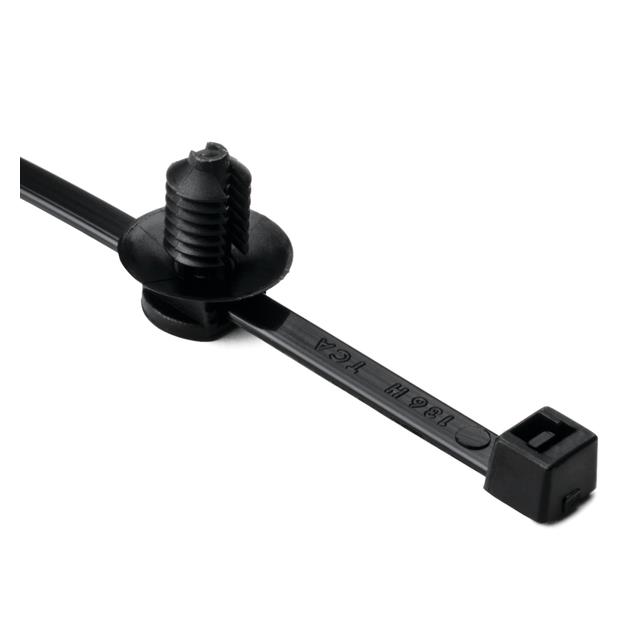

HELLERMANNTYTON 150-31093	22.68 kg	50 lbs	Heat Stabilized	150 mm	5.91 "	0.492 ft	1.42 in	36 mm	6 in	Fir Tree Push Mount	Black	4.6 mm	0.181 in	Polyamide (PA66) Nylon 6/6	Locking Standard

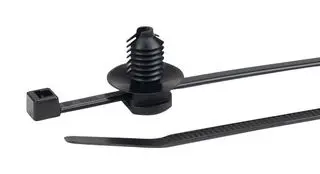

HELLERMANNTYTON 150-31090	13.61 kg	30 lbs	Heat Stabilized	148 mm	5.83 in	0.486 ft	1.38 in	35 mm	5.75 in	Fir Tree Push Mount	Black			Polyamide (PA66) Nylon 6/6	Locking Standard	3.56 mm	0.14 in

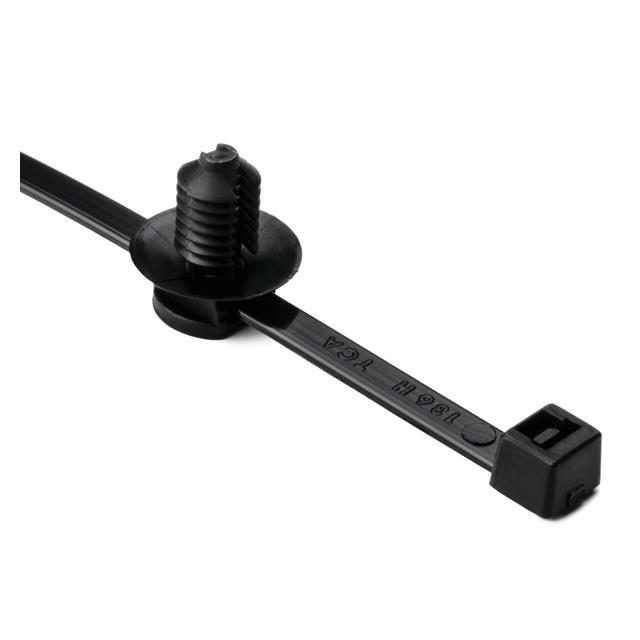

HELLERMANNTYTON 150-31091	22.68 kg	50 lbs	Heat Stabilized	200 mm	7.87 "	0.656 ft	1.73 in	44 mm	7.75 "	Fir Tree Push Mount	Black	4.6 mm	0.181 in	Polyamide (PA66) Nylon 6/6	Locking Standard
