PESD2CANFD27 Series

ESD protection for in-vehicle networks

Catalog

ESD protection for in-vehicle networks

Part	Supplier Device Package	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Qualification	Voltage - Breakdown (Min) [Min]	Grade	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Bidirectional Channels	Applications	Package / Case	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse
Nexperia USA Inc. PESD2CANFD27U-QCZ	DFN1412D-3	Surface Mount Wettable Flank	Zener	-55 °C	150 °C	45 V	AEC-Q101	28 V	Automotive	1 MHz 3.6 pF	1.8 A	27 V	2	CAN	3-XDFN Exposed Pad
Nexperia USA Inc. PESD2CANFD27V-QBZ	DFN1110D-3	Surface Mount Wettable Flank	Zener	-55 °C	150 °C	44 V	AEC-Q101	28 V	Automotive	5.2 pF	2.5 A	27 V	2	CAN	3-XDFN Exposed Pad
Nexperia USA Inc. PESD2CANFD27V-QCZ	DFN1412D-3	Surface Mount Wettable Flank	Zener	-55 °C	150 °C	44 V	AEC-Q101	28 V	Automotive	5.2 pF	2.5 A	27 V	2	CAN	3-XDFN Exposed Pad
Nexperia USA Inc. PESD2CANFD27V-UX	SOT-323	Surface Mount	Zener			44 V	AEC-Q100		Automotive		2.5 A		2	General Purpose	SC-70 SOT-323	27 V
Nexperia USA Inc. PESD2CANFD27U-QBZ	DFN1110D-3	Surface Mount Wettable Flank	Zener	-55 °C	150 °C	45 V	AEC-Q101	28 V	Automotive	1 MHz 3.6 pF	1.8 A	27 V	2	CAN	3-XDFN Exposed Pad
Nexperia USA Inc. PESD2CANFD27VQC-QZ	DFN1412D-3	Surface Mount Wettable Flank	Zener	-55 °C	150 °C	44 V	AEC-Q101	28 V	Automotive	5.2 pF	2.5 A	27 V	2	CAN	3-XDFN Exposed Pad
Nexperia USA Inc. PESD2CANFD27UU-QX	SOT-23 TO-236AB	Surface Mount	Zener	-55 °C	150 °C	41 V	AEC-Q101		Automotive	25 pF	5 A		2	CAN	SC-59 SOT-23-3 TO-236-3	24 V	230 W
Nexperia USA Inc. PESD2CANFD27V-TR	TO-236AB	Surface Mount	Zener			44 V	AEC-Q100		Automotive		2.5 A		2	General Purpose	SC-59 SOT-23-3 TO-236-3	27 V
Nexperia USA Inc. PESD2CANFD27LU-QX	SOT-23 TO-236AB	Surface Mount	Zener	-55 °C	150 °C	41 V	AEC-Q101		Automotive	25 pF	5 A		2	CAN	SC-59 SOT-23-3 TO-236-3	24 V	230 W
Nexperia USA Inc. PESD2CANFD27U-UX	SC-70 (SOT323)	Surface Mount	Zener	-55 °C	175 °C	45 V	AEC-Q101	28 V	Automotive	1 MHz 3.1 pF	1.8 A	27 V	2		SC-70 SOT-323

Catalog

ESD protection for in-vehicle networks

Description

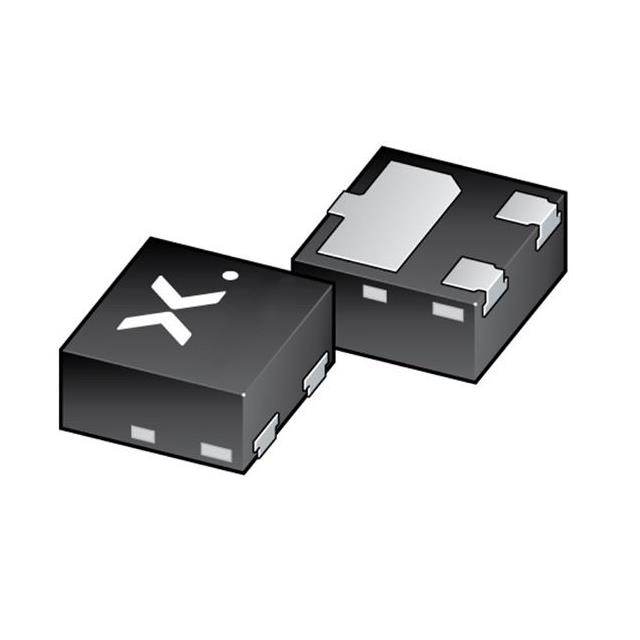

ESD protection device in an ultra small DFN1110D-3 (SOT8015) leadless Surface-Mounted Device (SMD) plastic package with side wettable flanks, designed to protect two automotive in-vehicle network bus lines from the damage caused by ElectroStatic Discharge (ESD) and other transients.
