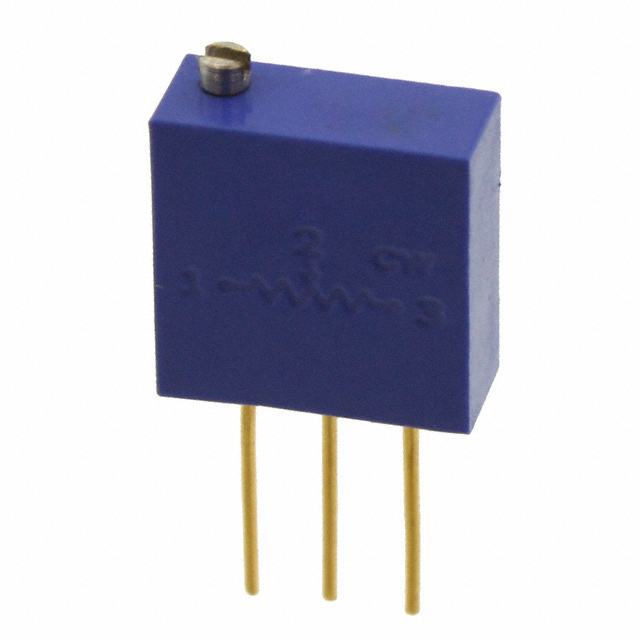

3290W Series
Manufacturer: Bourns Inc.
Beta
⌘K
TRIMMER - 3/8" SQ MT WW /TUBE PACKAGING
| Part | Number of Turns | Power (Watts) | Temperature Coefficient | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Resistive Material | Adjustment Type | Tolerance | Mounting Type | Termination Style | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 25 | 1 W | 50 ppm/░C | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | Wirewound | Top Adjustment | 5 % | Through Hole | PC Pins | 10 Ohms |
Bourns Inc. | 25 | 1 W | 50 ppm/░C | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | Wirewound | Top Adjustment | 5 % | Through Hole | PC Pins | 2200 Ohms |
Bourns Inc. | 25 | 1 W | 50 ppm/░C | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | Wirewound | Top Adjustment | 5 % | Through Hole | PC Pins | 200 Ohms |
 Bourns Inc. | 25 | 1 W | 50 ppm/░C | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | Wirewound | Top Adjustment | 5 % | Through Hole | PC Pins | 10000 Ohms |
Bourns Inc. | 25 | 1 W | 50 ppm/░C | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | Wirewound | Top Adjustment | 5 % | Panel Mount Through Hole | PC Pins | 20 kOhms |
Bourns Inc. | 25 | 1 W | 50 ppm/░C | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | Wirewound | Top Adjustment | 5 % | Through Hole | PC Pins | 20 kOhms |
Bourns Inc. | 25 | 1 W | 50 ppm/░C | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | Wirewound | Top Adjustment | 5 % | Panel Mount Through Hole | PC Pins | 5 kOhms |
Bourns Inc. | 25 | 1 W | 50 ppm/░C | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | Wirewound | Top Adjustment | 5 % | Panel Mount Through Hole | PC Pins | 50 Ohms |
Bourns Inc. | 25 | 1 W | 50 ppm/░C | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | Wirewound | Top Adjustment | 5 % | Panel Mount Through Hole | PC Pins | 200 Ohms |
