RJMG201 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
1X1, 1G
| Part | Shielding | Contact Finish Thickness | Contact Finish Thickness | Shield Material | Housing Material | Connector Type | Number of Rows | Orientation | Height Above Board [z] | Height Above Board [z] | Tab Direction | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Contact Material | Number of Ports | Termination | Mounting Type | LED Color | Features | Number of Cores per Jack | Contact Finish | LED Color | LED Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

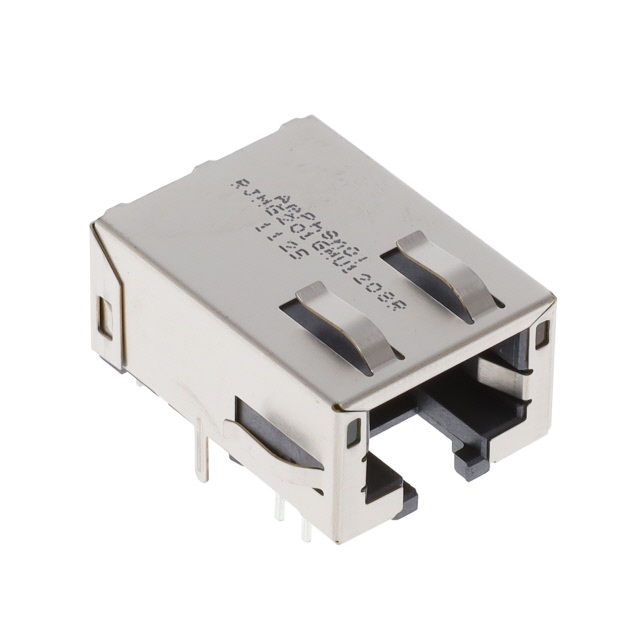

 Amphenol ICC (Commercial Products) | EMI Finger Shielded Unshielded | 50 µin | 1.27 µm | Stainless Steel | Liquid Crystal Polymer (LCP) | RJ45 | 1 | 90 ° | 0.67 in | 17.02 mm | User Selectable | 70 °C | 0 °C | 10/100/1000 Base-T AutoMDIX | Phosphor Bronze | 1 | Solder | Through Hole | Green - Green | Board Lock | 8 | Gold | ||

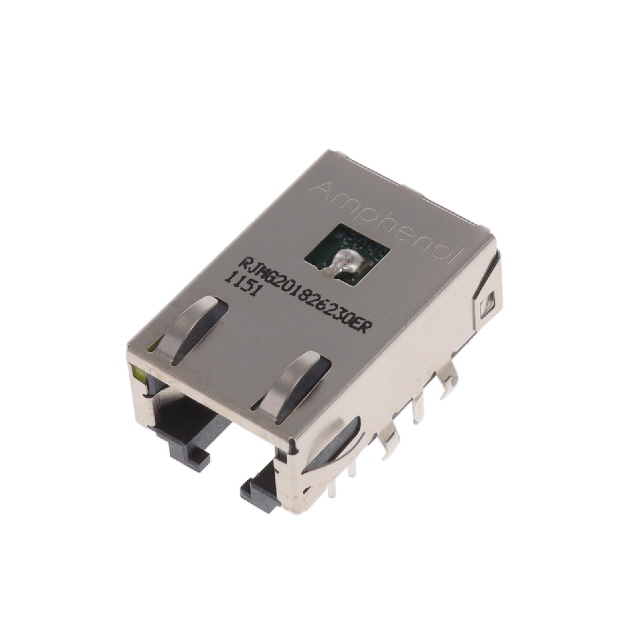

 Amphenol ICC (Commercial Products) | EMI Finger Shielded | 30 Áin | 0.76 Ám | Stainless Steel | Thermoplastic | RJ45 | 1 | 90 ° | 0.448 in | 11.38 mm | Down | 85 °C | -40 C | 10/100/1000 Base-T AutoMDIX | Phosphor Bronze | 1 | Solder | Through Hole | Green Orange Yellow | 8 | Gold | |||

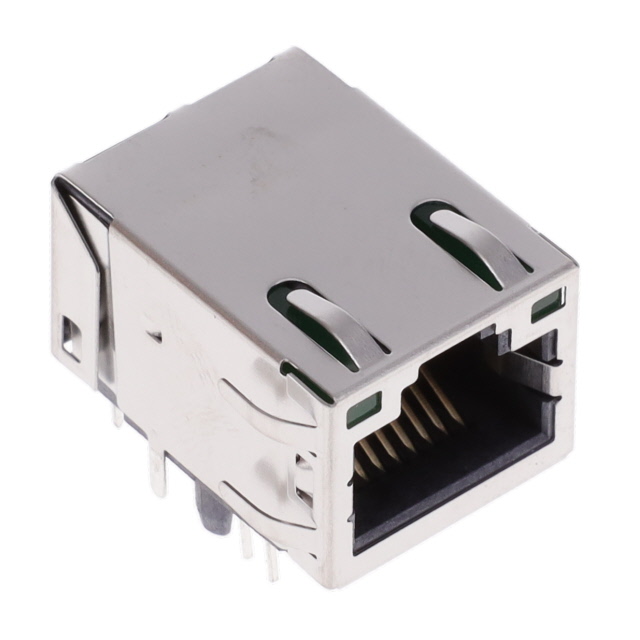

 Amphenol ICC (Commercial Products) | EMI Finger Shielded | 6 Áin | 0.152 Ám | Copper Alloy | Liquid Crystal Polymer (LCP) | RJ45 | 1 | 90 ° | 0.449 in | 11.4 mm | Down | 10/100/1000 Base-T AutoMDIX | Copper Alloy | 1 | Solder | Through Hole | Board Guide | 8 | Gold | Orange | Green |
