ED400 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLOCK 2POS 45DEG 10MM PCB
| Part | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Clamp Material - Plating | Contact Material - Plating | Screw Thread | Mounting Type | Features | Wire Termination | Positions Per Level | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Mating Orientation | Number of Levels | Pitch | Pitch | Current | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

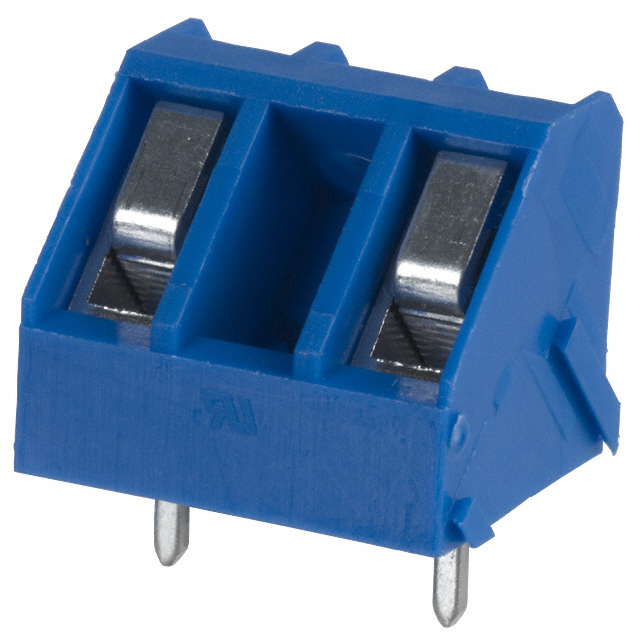

 On Shore Technology Inc. | 4.4 Lb-In | 0.5 Nm | -30 ░C | 105 ░C | Polyamide (PA) Nylon | Copper | Brass | M2.6 | Through Hole | Interlocking (Side) | Screw | 2 | 22 AWG | 12 AWG | 135 ° | 45 ° | 1 | 0.394 in | 10 mm | 15 A | Blue |

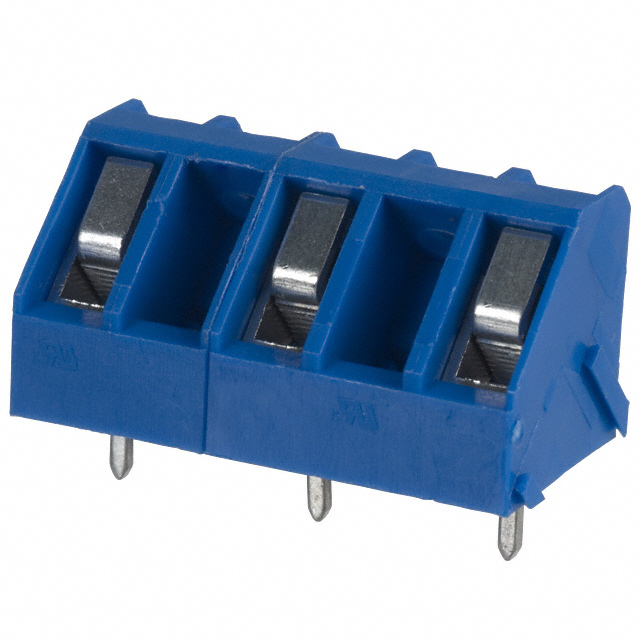

 On Shore Technology Inc. | 4.4 Lb-In | 0.5 Nm | -30 ░C | 105 ░C | Polyamide (PA) Nylon | Copper | Brass | M2.6 | Through Hole | Interlocking (Side) | Screw | 3 | 22 AWG | 12 AWG | 135 ° | 45 ° | 1 | 0.394 in | 10 mm | 15 A | Blue |
 On Shore Technology Inc. | 4.4 Lb-In | 0.5 Nm | -30 ░C | 105 ░C | Polyamide (PA) Nylon | Copper | Brass | M2.6 | Through Hole | Interlocking (Side) | Screw | 5 | 22 AWG | 12 AWG | 135 ° | 45 ° | 1 | 0.394 in | 10 mm | 15 A | Blue |
